arcelik BEKO G91633NE User Manual

SBS COSMOS REFRIGERATOR 07.11.2018 / REV NO: 01
69
Sensitivity: Public

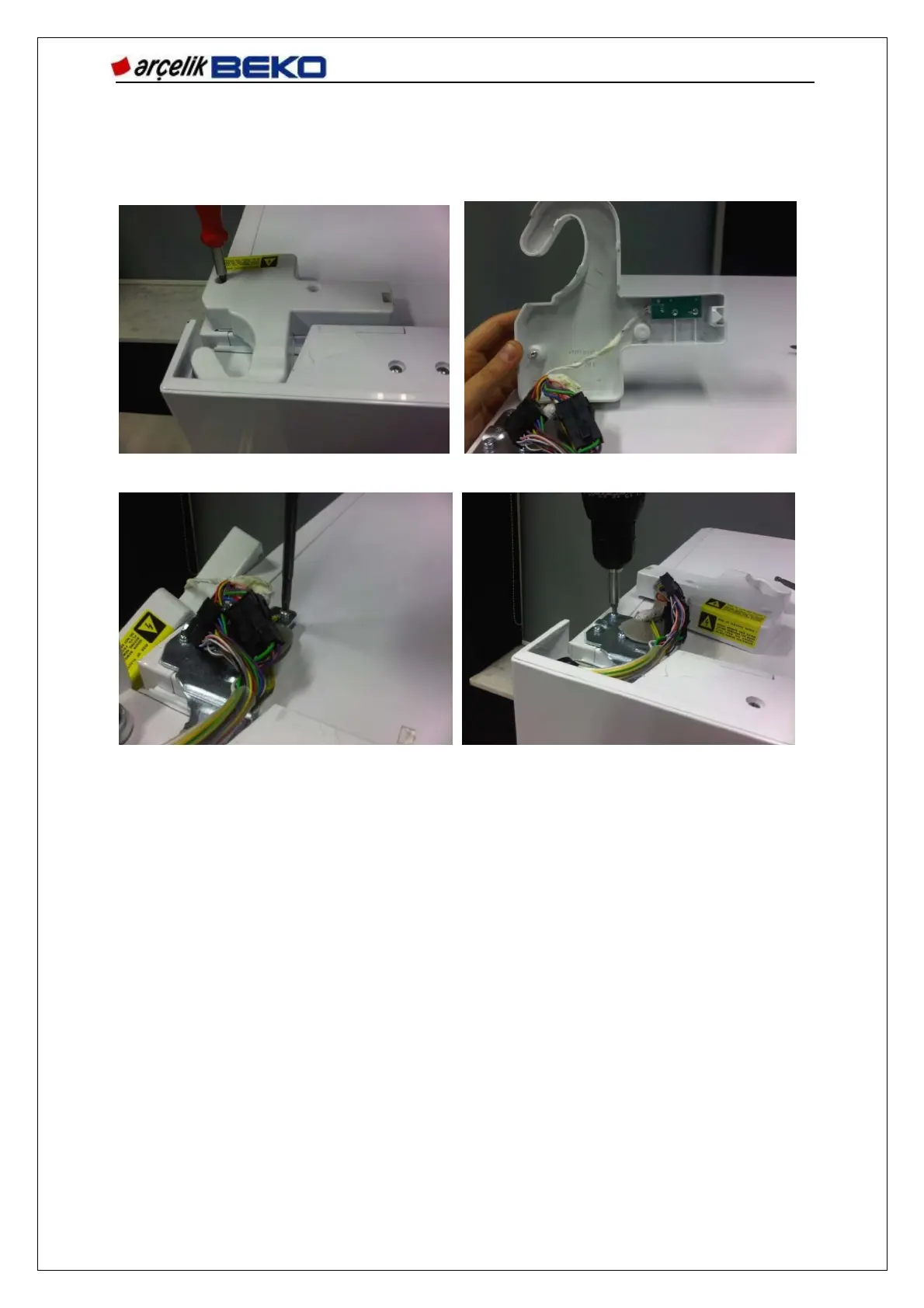

12.16. Upper Hinge
12.16.1. Upper hinge left
Used service number: 1636
1 2
3 4
 First remove the upper hinge cover and then remove 2 pcs of PT (3x5) screws by
attaching the star bit to the chargeable gun.
 Remove the reed switch socket and other socket connections as shown in Picture 4
and 5.
 Remove M 4x5.5 screw fixing the earth cable by attaching the star bit to the chargeable
gun.
 Remove 3 pcs of M 5x18 spiral screws of the upper hinge by attaching a torque bit to
the chargeable gun.
