Chapter 3: BIOS setup
Chapter 3

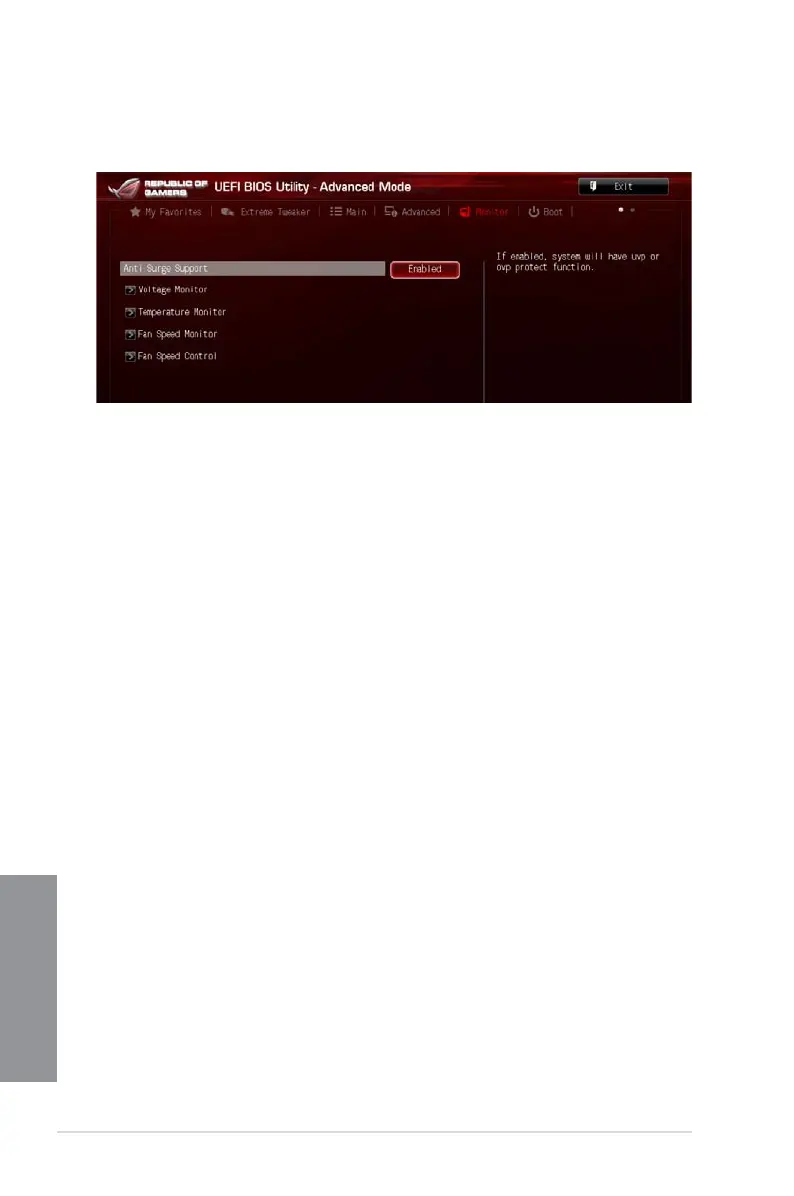

3.7 Monitor menu
The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
Anti Surge Support [Enabled]
This item allows you to enable or disable the Anti Surge function.
Conguration options: [Disabled] [Enabled]
Voltage Monitor
CPU Core 0-3 Voltage; CPU Cache Voltage; CPU System Agent Voltage; CPU
Analog I/O Voltage; CPU Digital I/O Voltage; CPU Input Voltage; DRAM Voltage;
PCH Voltage; 3.3V Voltage; 5V Voltage; 12V Voltage
The onboard hardware monitor automatically detects the voltage output through the
onboard voltage regulators. Press <Enter> and select [Ignore] if you do not wish to
display the detected temperatures.
Temperature Monitor
CPU Temperature; MB Temperature [xxxºC/xxxºF]
The onboard hardware monitor automatically detects and displays the CPU, and
motherboard. Press <Enter> and select [Ignore] if you do not wish to display the
detected temperatures.
Fan Speed Monitor
CPU FAN Speed 1-3; Chassis FAN1/2/3 Speed
The onboard hardware monitor automatically detects and displays the CPU fan and
chassis fan speeds in rotations per minute (RPM). If any of the fans is not connected to
the motherboard, the eld shows [N/A]. These items are not user-congurable. Press
<Enter> and select [Ignore] if you do not wish to display the detected temperatures.
