1.2.11 SupremeFX Impact audio card
The bundled SupremeFX Impact audio card integrates all the audio functions of your
motherboard. It consists of 3 audio ports to connect your audio devices and a front panel
audio connector (AAFP) for the front panel audio solution.

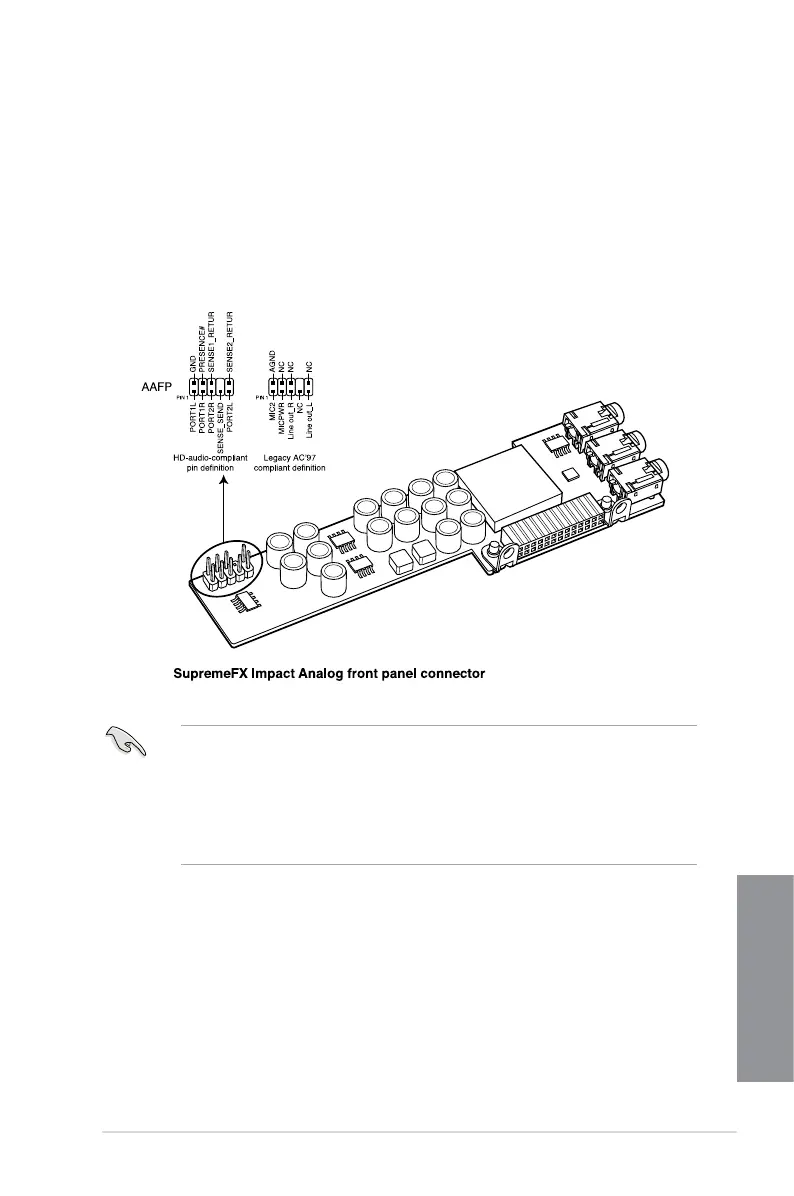

1. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel
audio I/O module cable to this connector.
• We recommend that you connect a high-denition front panel audio module to this
connector to avail of the motherboard’s high-denition audio capability.
• If you want to connect a high-denition or an AC’97 front panel audio module to this
connector, set the Front Panel Type item in the BIOS setup to [HD Audio] or [AC97].
Refer to section 3.6.7 Onboard Devices Conguration for more details.
• To use the Music PnP feature, refer to section
2.3.1 Rear I/O connection.
