Chapter 2: Basic Installation
Chapter 2
2.3 Motherboard rear and audio connections
2.3.1 Rear I/O connection
* and ** : Refer to the tables on the next page for LAN port LEDs and audio port denitions.

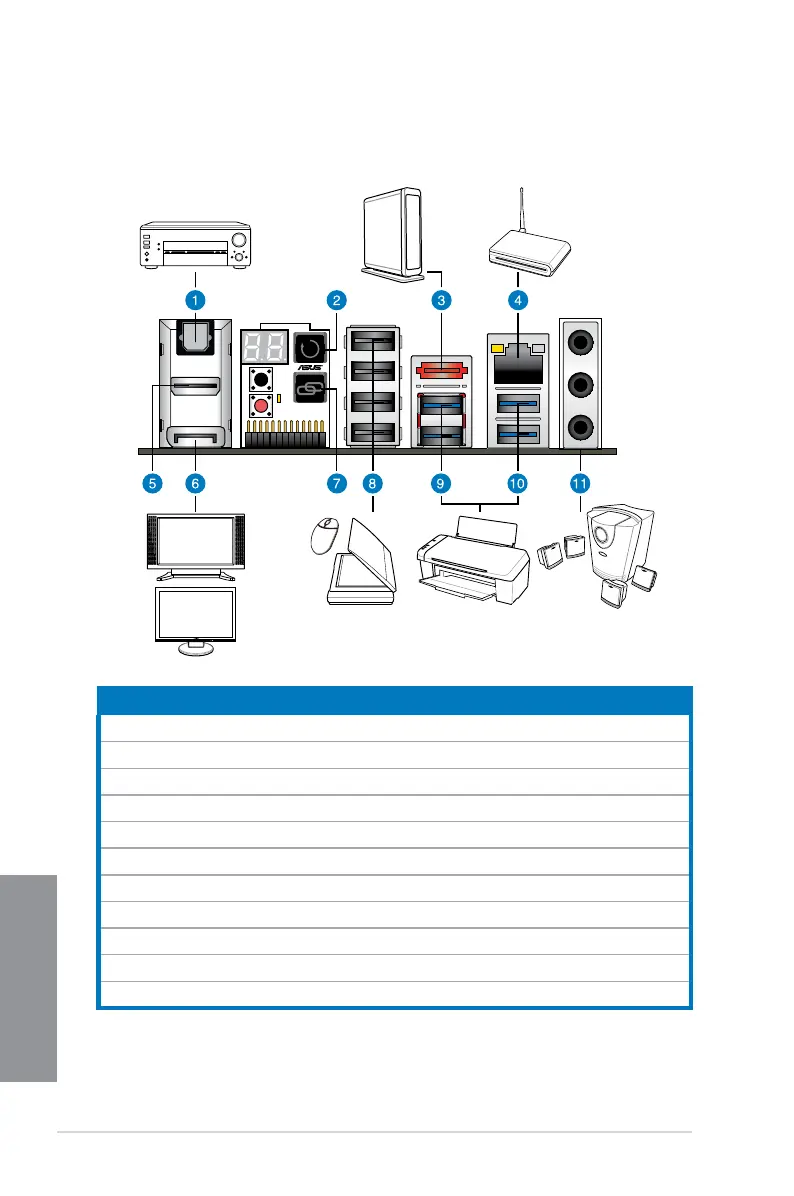

Rear panel connectors
1. Optical S/PDIF OUT port
2. Clear CMOS button
3. eSATA port
4. LAN (RJ-45) port*
5. HDMI port
6. DisplayPort
7. ROG Connect button
8. USB 2.0 ports 7-10
9. USB 3.0 port 3 and 4
10. USB 3.0 port 5 and 6
11. Audio I/O ports**
