Asus P9D-E/4L User Manual

ASUS P9D-E/4L
5-13

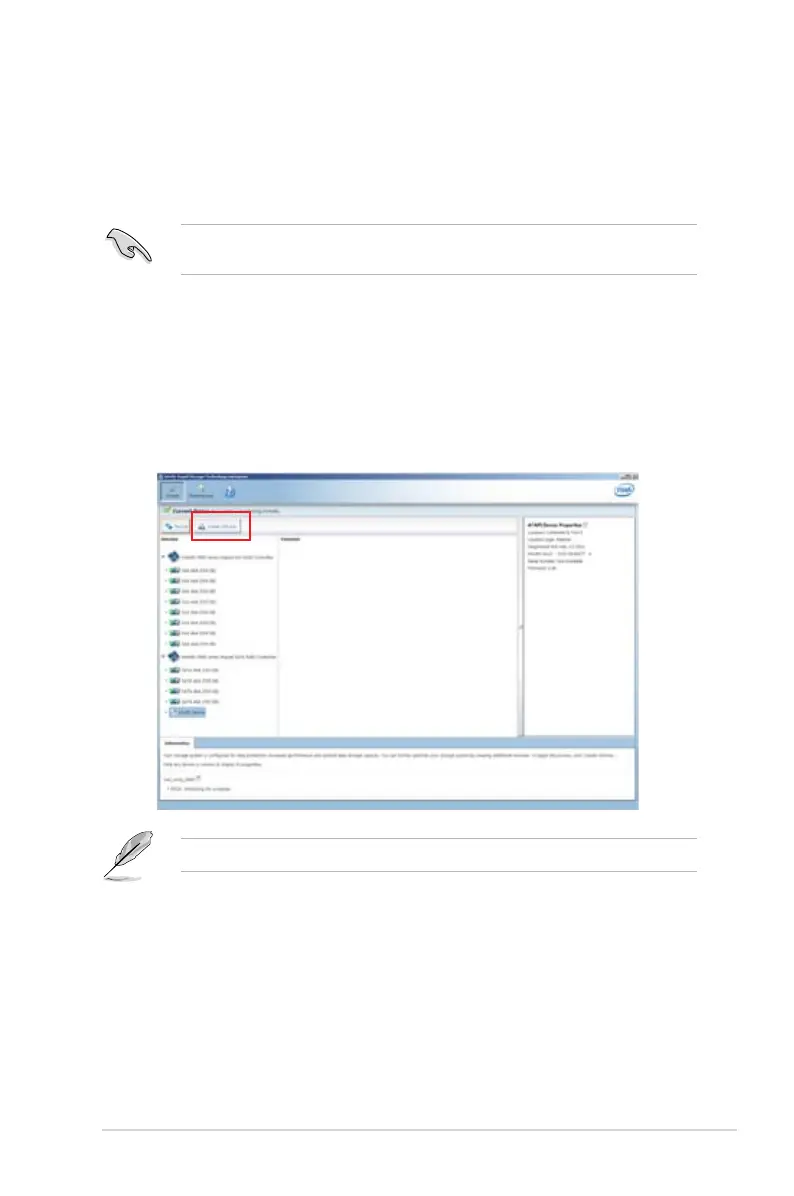

5.3 Intel
®
Rapid Storage Technology enterprise
(Windows)
The Intel
®
Rapid Storage Technology enterprise allows you to create RAID 0, RAID 1, RAID 10
(RAID 1+0), and RAID 5 set(s) from Serial ATA hard disk drives that are connected to the Serial
ATA connectors supported by the Southbridge.
You can click Rescan to re-scan any attached hard disks.
1. Turn on the system to windows desktop.
2. Click the
Intel
®
Rapid Storage Technology enterprise icon to display the main menu.
Your storage system is configured for data protection, increased performance and optimal data
storage capacity. You can create additional volumes to further optimize your storage system.
To enter the Intel
®
Rapid Storage Technology enterprise utility under Windows operating
system:
You need to manually install the Intel
®
Rapid Storage Technology enterprise utility on a
Windows
®
operating system. Please refer to the installation instructions in Chapter 6.

Asus P9D-E/4L Specifications

General

USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1, 2
Maximum UDIMM memory	32 GB
Supported DIMM module capacities	2GB, 4GB, 8GB
TPM connector	Yes
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600 MHz
PCI Express x8 (Gen 2.x) slots	0
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Wi-Fi	No
LAN controller	Intel® I210-AT
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2300
On-board graphics card memory	32 MB
Cables included	SATA, USB-SATA
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Processor socket	LGA 1150 (Socket H3)
Intel Xeon series	E3-1200
Processor manufacturer	Intel
Motherboard chipset	Intel® C224
Motherboard form factor	ATX
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	243.84 mm
Width	304.8 mm
