Chapter 2: Hardware information

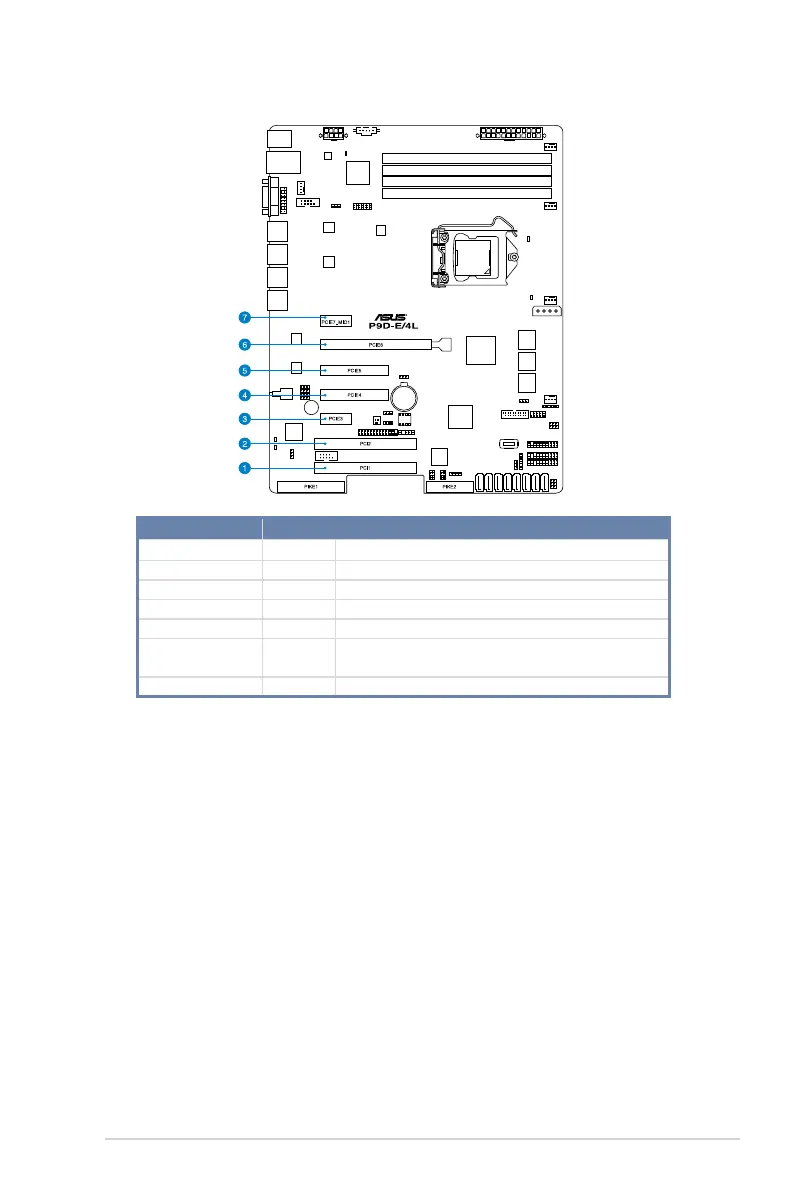

No.(Slot location) Short Description
1 (slot 1) PCI1 PCI 32 bit/ 33 MHz
2 (slot 2) PCI2 PCI 32 bit/ 33 MHz
3 (slot 3) PCIE3 PCI-E x1 (x1 Gen2 link)
4 (slot 4) PCIE4 PCI-E x8 (x8 Gen3 link)
5 (slot 5) PCIE5 PCI-E x8 (x8 Gen3 link)
6 (slot 6) PCIE6
PCI-E x16 (x16 Gen3 link)
(Auto switch to x8 if slot 5 is occupied)
7 (slot 7) PCIE7 PCI-E x1 (x1 Gen2 link); MIO-892 Supported
2.5.8 PIKE slot
The PIKE slots allows you to choose and change your preferred SAS solution easily. Install
an optional ASUS PIKE RAID card based on your needs.

Asus P9D-E/4L Specifications

General

USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1, 2
Maximum UDIMM memory	32 GB
Supported DIMM module capacities	2GB, 4GB, 8GB
TPM connector	Yes
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600 MHz
PCI Express x8 (Gen 2.x) slots	0
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Wi-Fi	No
LAN controller	Intel® I210-AT
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2300
On-board graphics card memory	32 MB
Cables included	SATA, USB-SATA
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Processor socket	LGA 1150 (Socket H3)
Intel Xeon series	E3-1200
Processor manufacturer	Intel
Motherboard chipset	Intel® C224
Motherboard form factor	ATX
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	243.84 mm
Width	304.8 mm
