1.6 Internal features

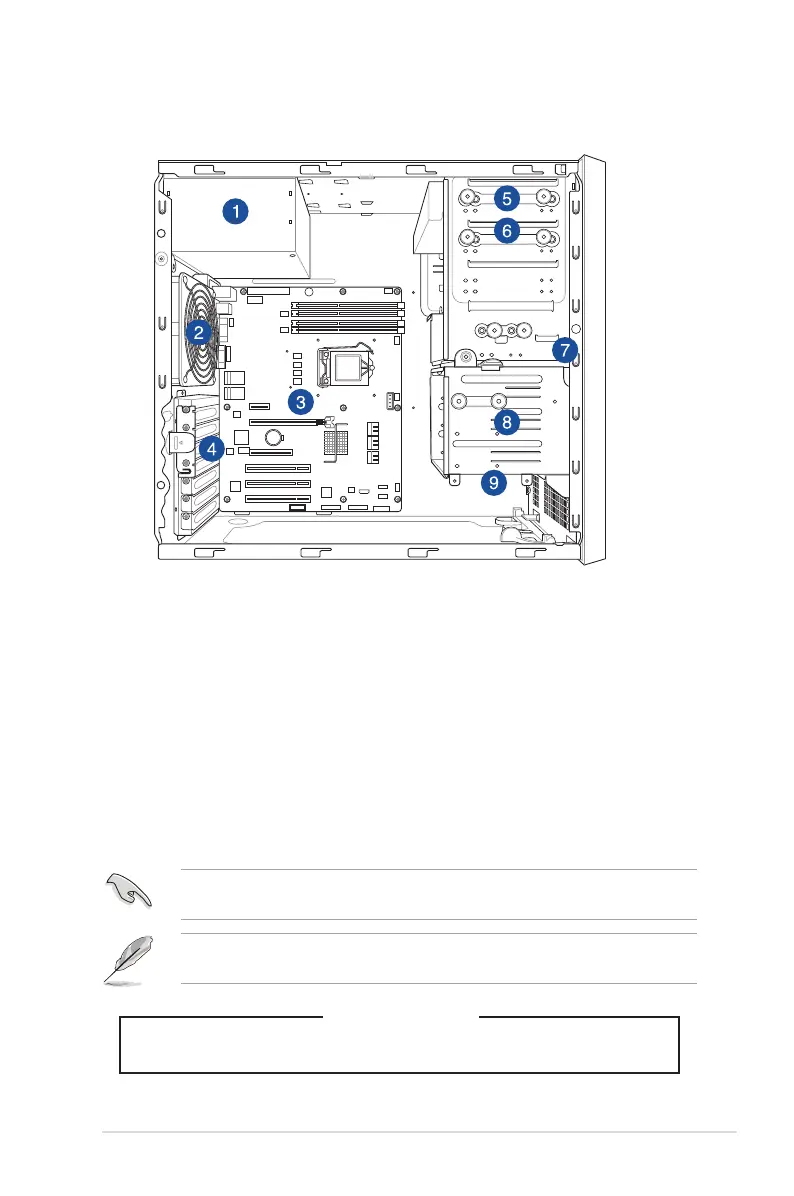

The TS110-E8-PI4 Pedestal server sytem includes the basic components as shown:
The barebone server does not include a oppy disk drive. If you need to use a oppy disk,
connect the USB oppy disk drive to any of the USB ports on the front or rear panel.
*WARNING
HAZARDOUS MOVING PARTS
KEEP FINGERS AND OTHER BODY PARTS AWAY
Turn off the system power and detach the power supply before removing or replacing any
system component.
1. Power supply unit
2. 120 mm x 120 mm system fan
3. ASUS P9D-X/MR Server Board
4. Expansion card locks
5. Optical drive (Optional)
6. 1 x 5.25-inch drive bay
7. Front I/O board (hidden)
8. 3 x 3.5-inch Internal HDD bays
9. 1 x 2.5-inch Internal HDD/SSD bay
