2.9 Cable connections
• Thebundledsystemcablesarepre-connectedbeforeshipment.Youdonotneedto
disconnect these cables unless you will remove pre-installed components to install
additional devices.
• RefertoChapter3fordetailedinformationontheconnectors.

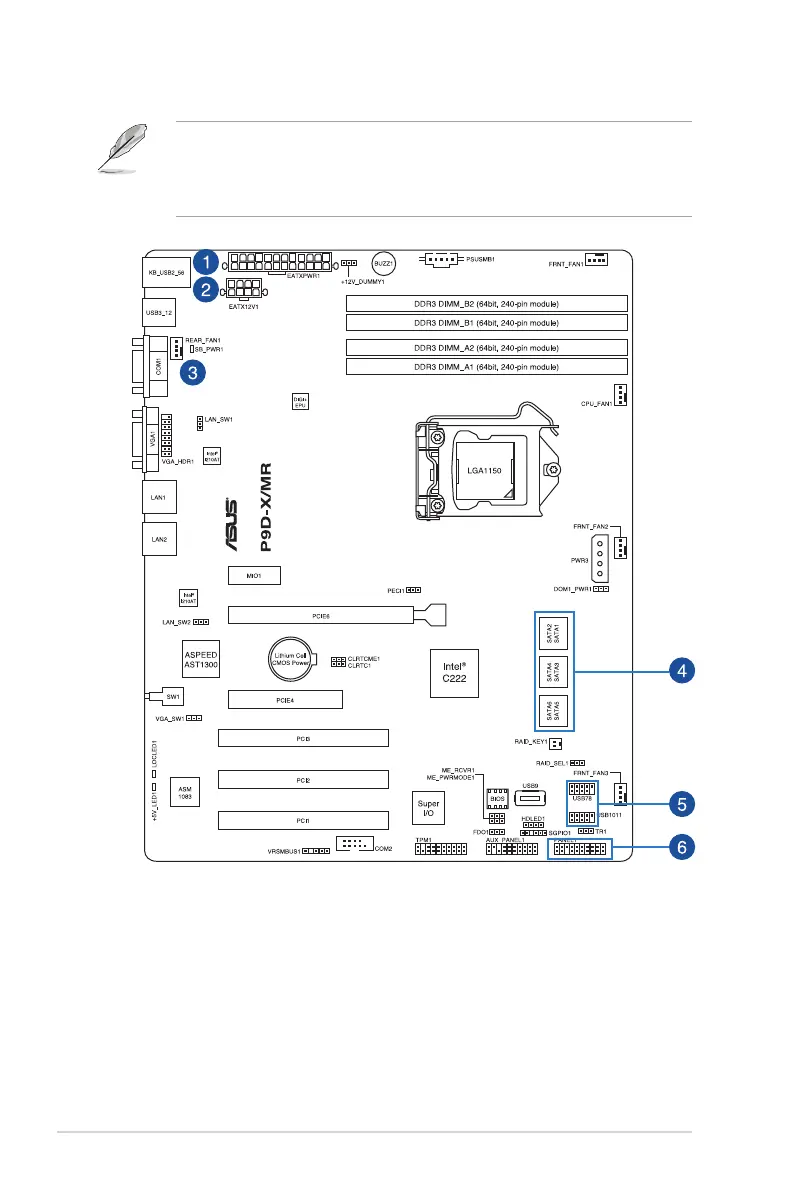

Standard cables connected to the motherboard
1. 24-pinATXpowerconnector(frompowersupplytomotherboard)
2. 8-pinATX12Vpowerconnector(frompowersupplytomotherboard)
3. Systemfanconnector(fromsystemfantomotherboard)
4. SATAconectors(systemdefault;frommotherboardtoSATAdevices)
5. USBconnectors(frommotherboardtofrontI/Oboard)
6. Systempanelconnector(frommotherboardtofrontI/Oboard)
