Atlas Copco GA 30+ User Manual

• Remove any dirt from the coolers with a fibre brush. Brush in the direction of the cooling fins.
Also remove any dirt from the fan with a fibre brush.
• Next, clean with an air jet in the reverse direction to normal flow. Use low pressure air. If necessary,
the pressure may be increased up to 6 bar(e) (87 psig).
• If it is necessary to wash the coolers with a cleaning agent, consult your supplier.
• Remove the cover used during cleaning.

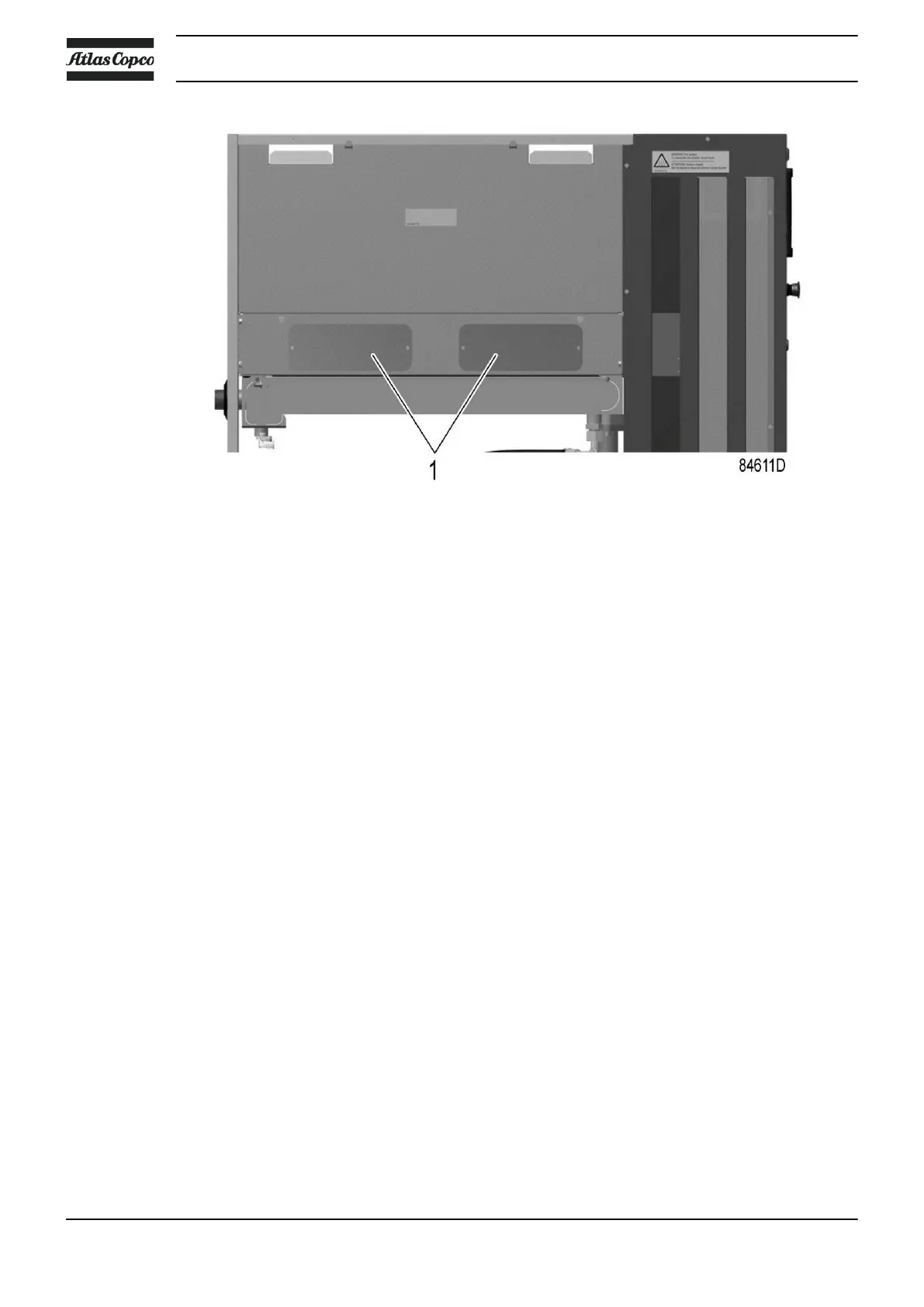

• Mount the service plates. (1)
Instruction book
158 2920 7180 30

Atlas Copco GA 30+ Specifications

General

Model	GA 30+
Category	Air Compressor
Power	30 kW
Working Pressure	7.5-13 bar
Cooling System	Air-cooled
Noise Level	69 dB(A)
FAD	5.2 m³/min
