AZURO BP-85HS-A User Manual

5
ENGLISH
Note: The dimensions are given in mm.
WARNING: The manufacturer reserves the right to make such product modifi cations that will not infl uence its essential properties.
3.3

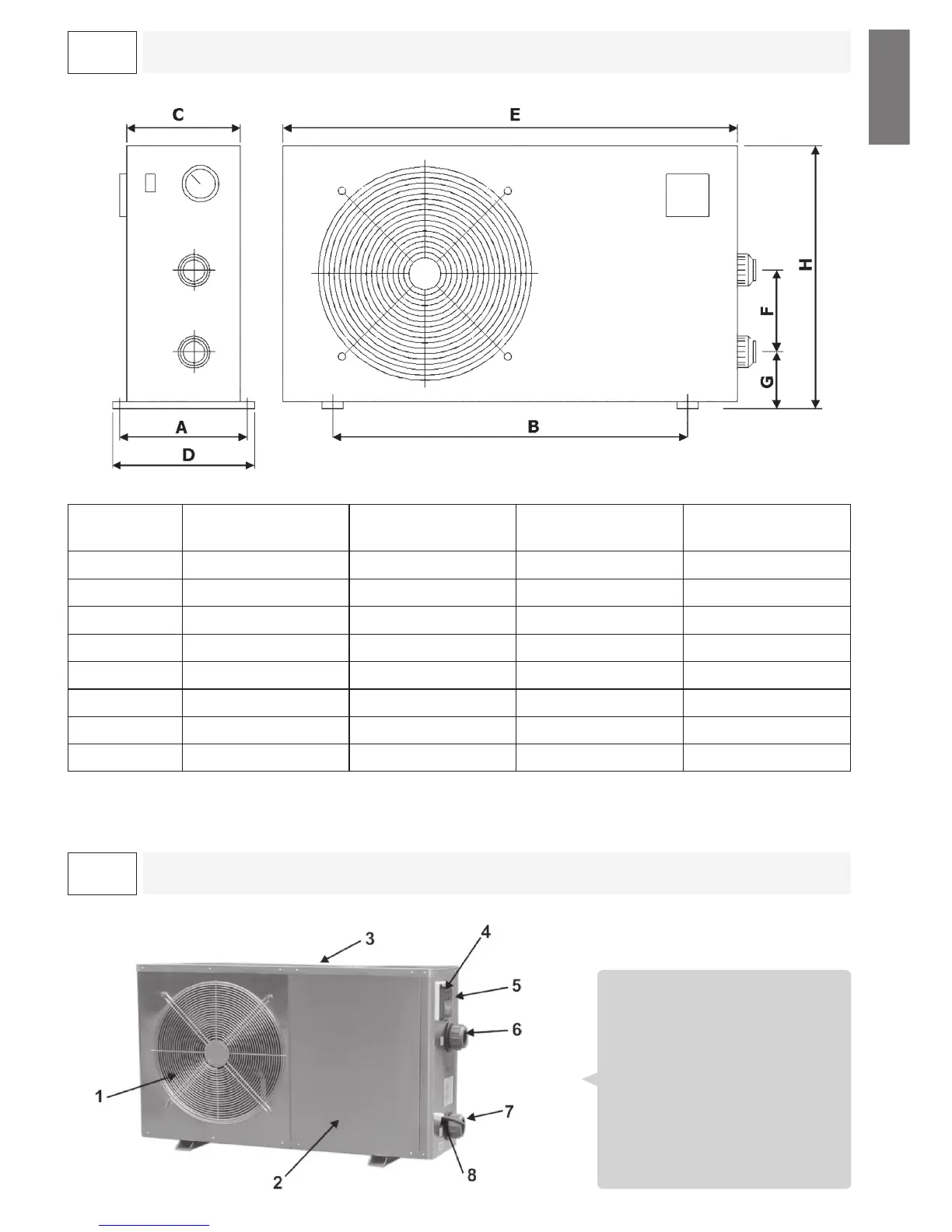

HEAT PUMP DIMENSIONS
3.4
DESCRIPTION OF BASIC PARTS
BP-85HS-A BP-100HS-A BP-120HS-A BP-140HS-A
A
295 340 342 366
B
580 665 663 723
C
285 305 305 330
D
320 370 370 395
E
935 1010 1010 1070
F
290 330 363 400
G
90 100 103 103
H
540 615 665 715
1 – Blower protective grille
(air outlet))
2 – Housing
3 – Upper lid
4 – Control panel
5 – Pressure gauge
6 – Neck for water outlet pipe connection
7 – Neck for water inlet pipe connection
8 – Power supply cable
