4.1 General Description
1. The Baxi EcoBlue Heat Range are gas fired wall mounted
powered flue condensing boilers.
2. The maximum output of the boiler is :-
12 model - 13 kW
15 model - 16 kW
18 model - 19 kW
21 model - 21 kW
24 model - 25 kW
3. The boiler modulates automatically to the system load up to
the set output. It is designed for use on Natural Gas (G20) only.
4. The two illuminated User Interaction Controller push buttons
provide information about the operating condition of the boiler.
5. The boiler is suitable for fully pumped open vented central
heating and domestic hot water systems and sealed systems.
6. An information label giving details of the model, serial number
and Gas Council number is situated on the front left underside of
the outercase and is accessed by pulling forward gently (Fig. 1).
7. The boiler data label is positioned on the inside lower right-
hand side of the boiler and can be seen when the outercase
panel is removed (Fig. 1).
8. The boiler is intended to be installed in residential/domestic
environments on a governed meter supply only.
9. The boiler must be installed with one of the purpose designed
flues such as one of the standard telescopic flue kits detailed in
the Flue Accessories & Fitting Guide.
All systems must be thoroughly cleansed, flushed and
treated with inhibitor (see Section 5.2.6).
These Installation & Servicing Instructions MUST be
read in conjunction with the Flue Accessories & Fitting Guide
supplied in the Literature Pack.

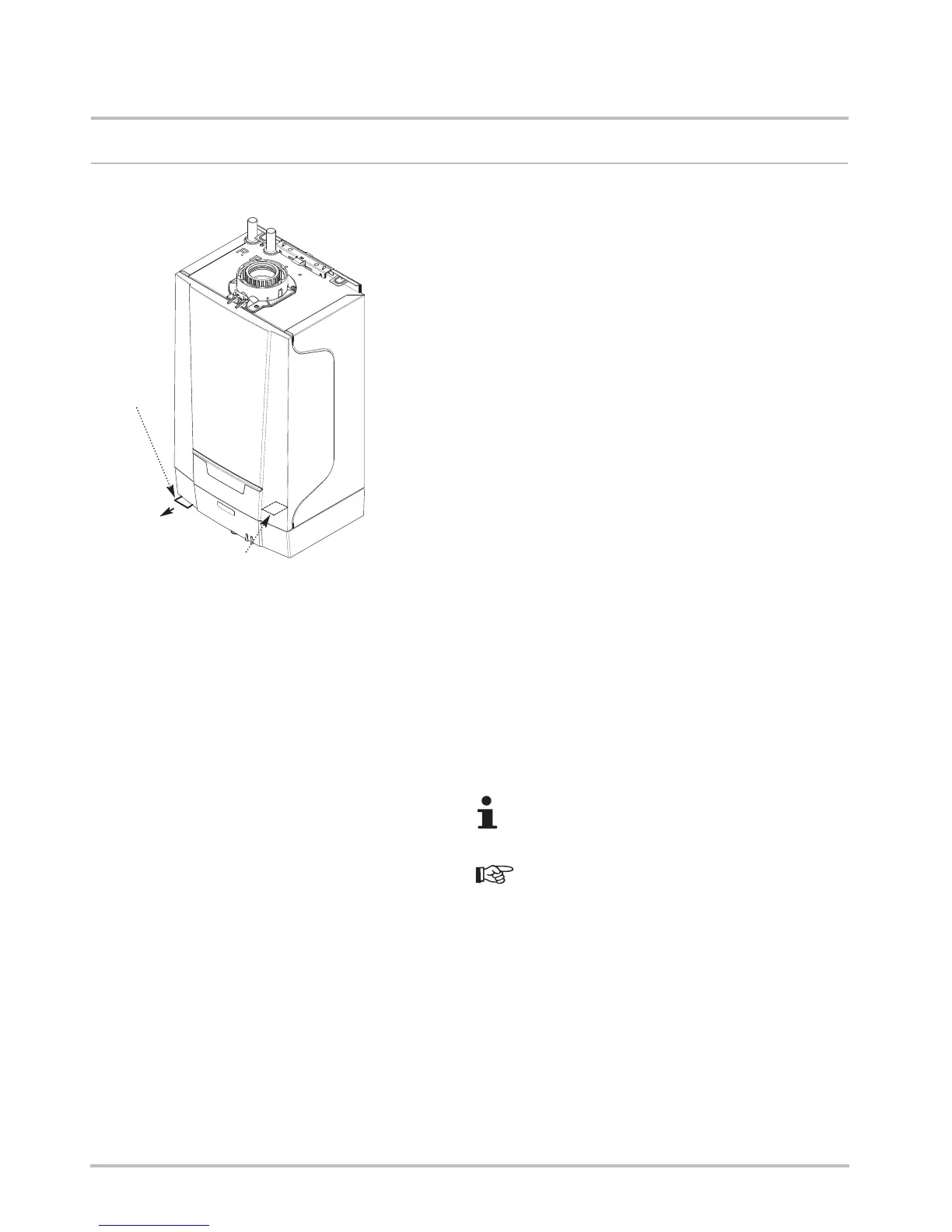

Information
Label
Slide
Forward
Fig. 1
Data Label
