7219717 - 02 (08/15) EcoBlue Heat 39

Installation 6

6.2 Electrical Connections

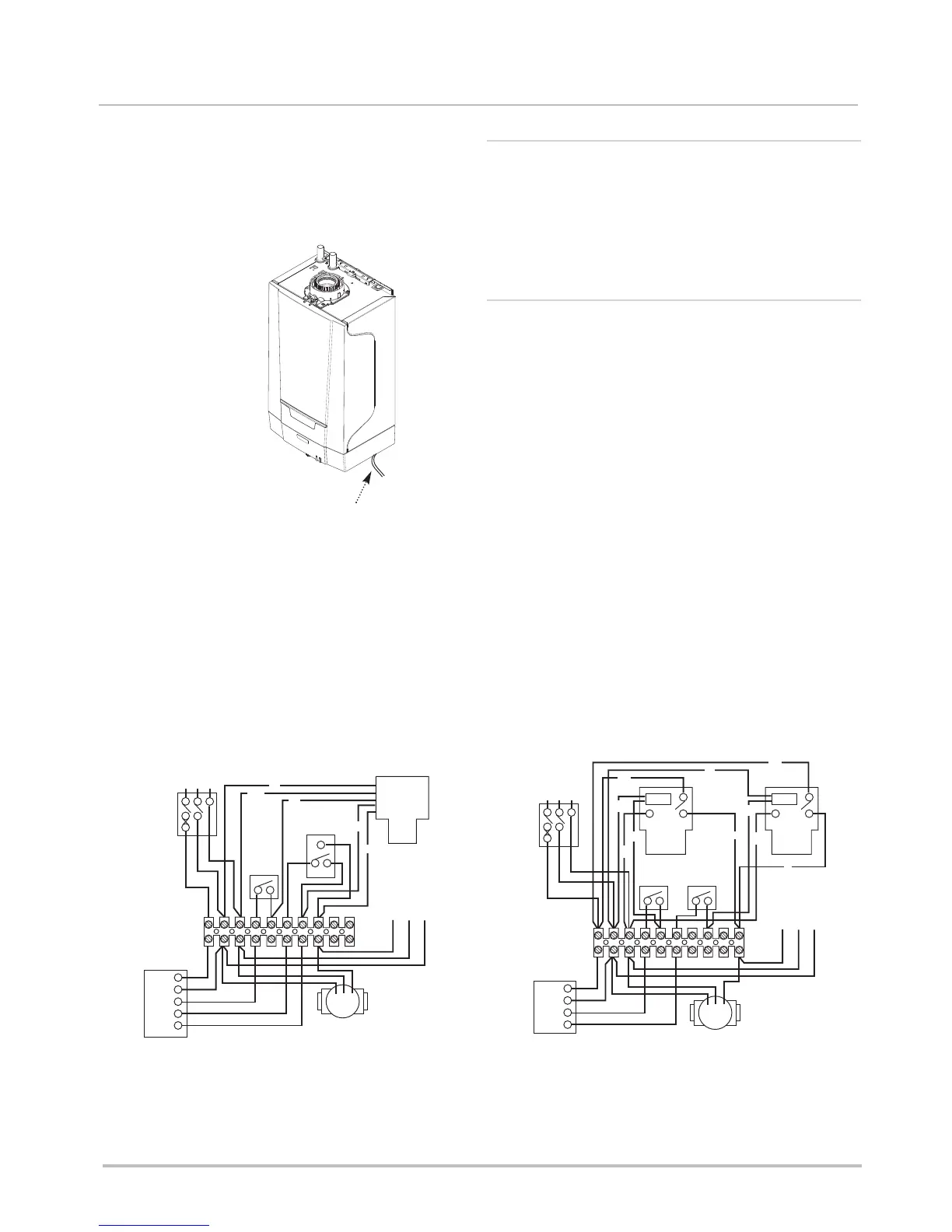

Y Plan

Diverter

Valve

Cylinder

Stat

Room

Stat

Boiler

Pump

Timer

230V

50Hz

LNE

CH on

HW on

HW off

LNE

g/y

S Plan

Valve

Cylinder

Stat

Room

Stat

Boiler

Pump

Timer

230V

50Hz

LNE

CH on

HW on

LNE

Motor

S Plan

Valve

Motor

g/y

Y Plan, Room Thermostat System, CH Interlocked By Room

Thermostat

At least the Radiator(s) near the Room Thermostat not TRV’d

Pump run from Switched Live

S Plan, Room Thermostat System, CH Interlocked By Room

Thermostat

At least the Radiator(s) near the Room Thermostat not TRV’d

Pump run from Switched Live

Key to colours

b - Blue

br - Brown

w - White

o - Orange

gr - Grey

g/y - Green/Yellow

Fig. 32

6.2.1 Electrical Connections of the Appliance

1. See Section 5.2.2. for details of the electrical supply. 1.3

metres of 3 core cable are supplied connected to the boiler.

2. Switched live must be connected to the brown (live) wire of

the 3 core cable.

6.2.2 Connecting External Devices

1. System Controls - This boiler operates on a switched live only.

2. To comply with Part L1 of the Building Regulations the heating

system into which the boiler is installed should include the

following:

a) Zone Controls

b) Timing Controls

c) Boiler Control Interlocks (Room & Cylinder

Thermostats)

3. Such a system needs to be fully pumped and must provide

independent temperature and time control to both the heating

and hot water circuits.

4. Connection diagrams for Y and S plan systems are shown.

3 Core Cable Connection
