7 Commissioning
7.4 Gas Settings
7.4.1 ‘Chimney Sweep’ Mode (CSM)
1. The current operating condition of the boiler is shown by the
button on the User Interaction Controller. The
button can flash in a range of colours and at different
frequencies.
2. Follow the flow chart on the next page to comply with the
requirement to check combustion on commissioning.
3. Setting the boiler to maximum and minimum heat outputs is
achieved as follows;
• Press the button for 3 seconds.
• CSM is activated and will go to the min rate.
• Pressing again will make it adjust to max rate.
• To exit press the RESET for 3 seconds.

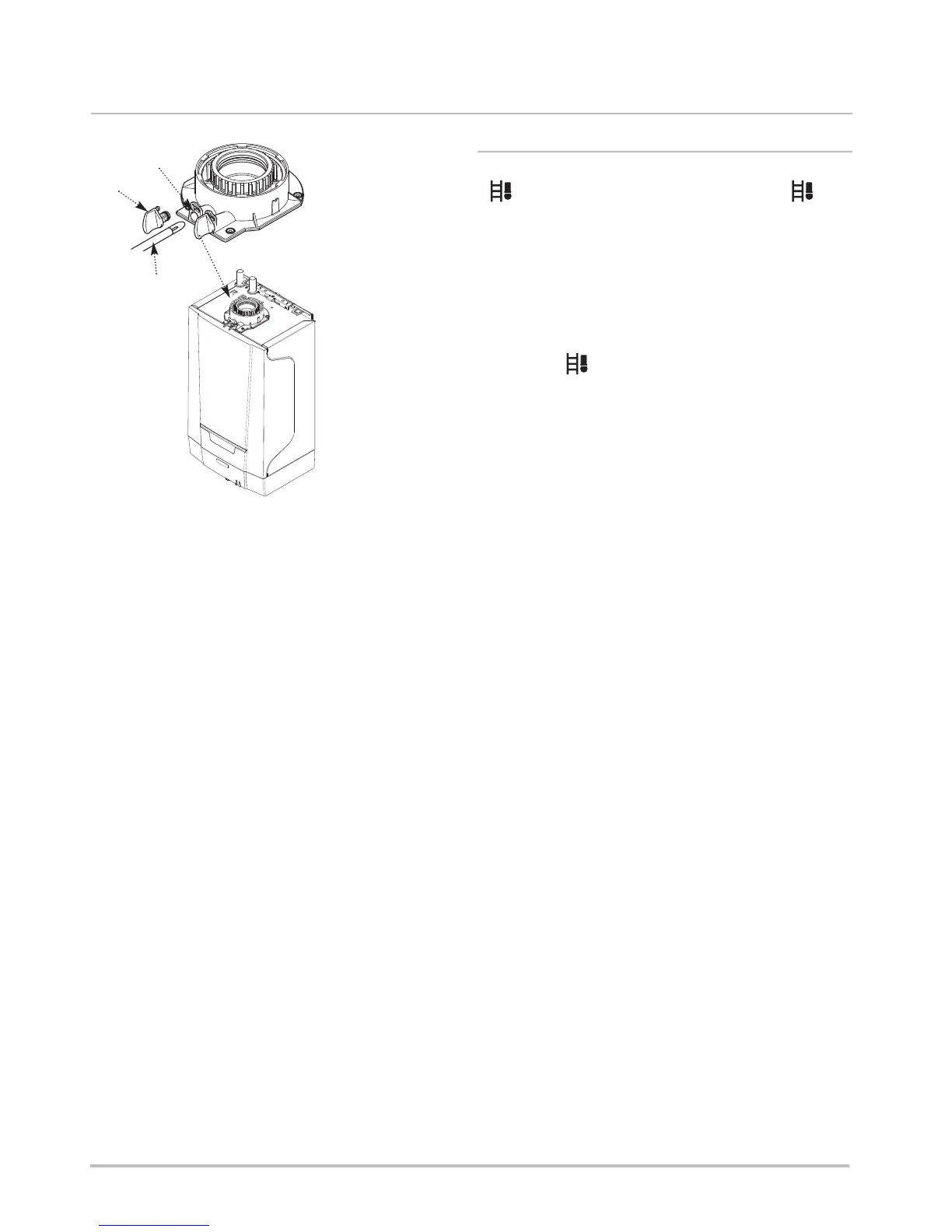

Plug
Analyser Probe
Flue Sampling
Point
After refitting the sampling point
plug ensure there is no leakage
of products !
Fig. 33
To Next Page
