7219717 - 02 (08/15) EcoBlue Heat 21
Description of the Product 4

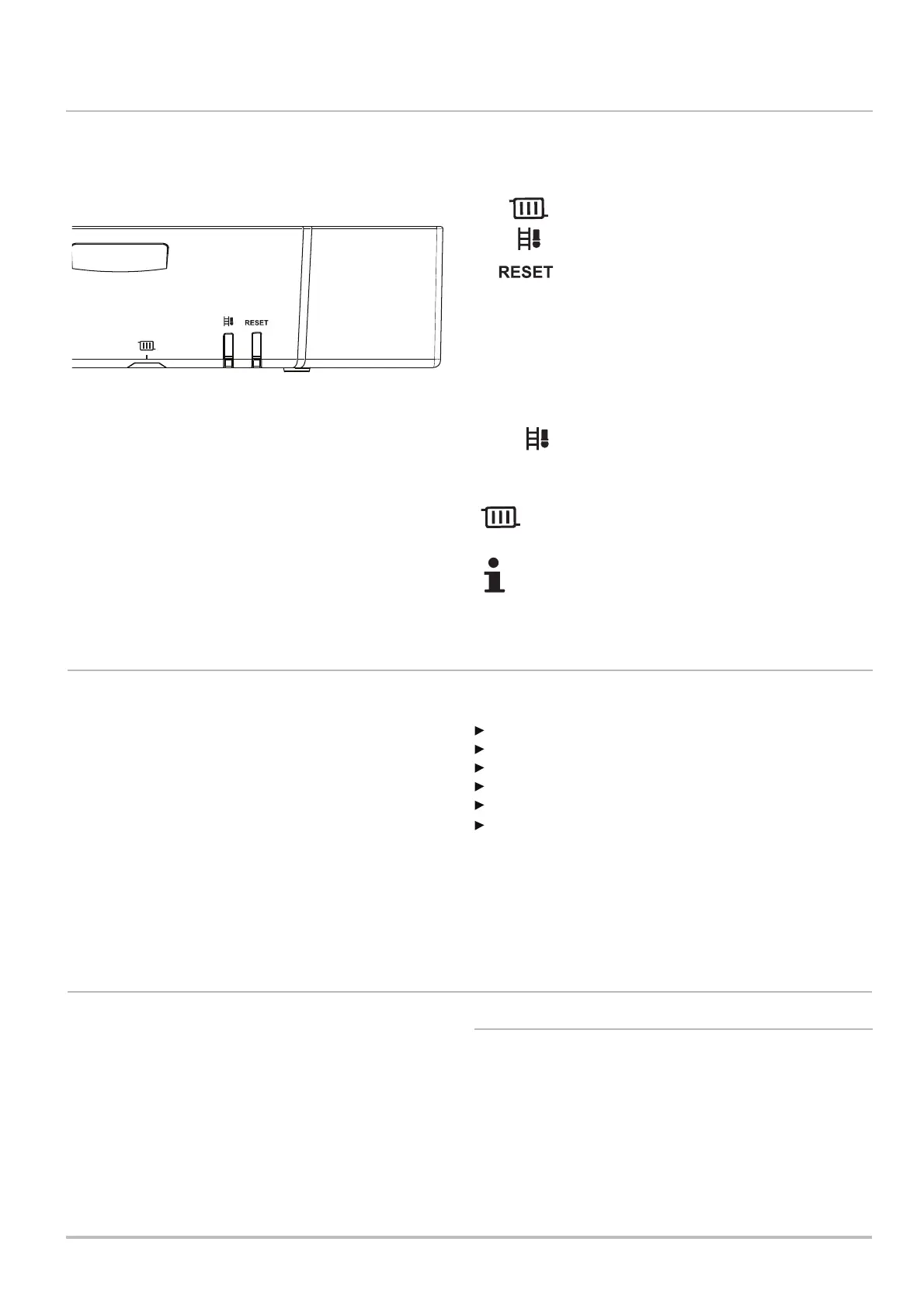

4.4 Control Panel Description
4.4.1 USER INTERACTION CONTROLLER
(Control Panel) (Fig. 2)
Key to symbols
Heating Water Temperature
Sweep Key and Status Signals
Reset button and On/Off Signal
1. The User Interaction Controller has 2 illuminating push
buttons which provide information about the operating condition
of the boiler.
2. The RESET button lights up green when the boiler has a
demand for CH or DHW.
3. The button can flash in a range of colours and at
different frequencies.
4. The User Interaction Controller also has one rotary knob. The
rotary knob can be used to set the maximum flow
temperature of the heating water.
Maximum temperature is 80°C
5. The temperature on this rotary knob must be set to a higher
temperature than the cylinder thermostat to achieve the required
hot water demand.
Fig. 2
