Belkin RT1800 User Manual

4

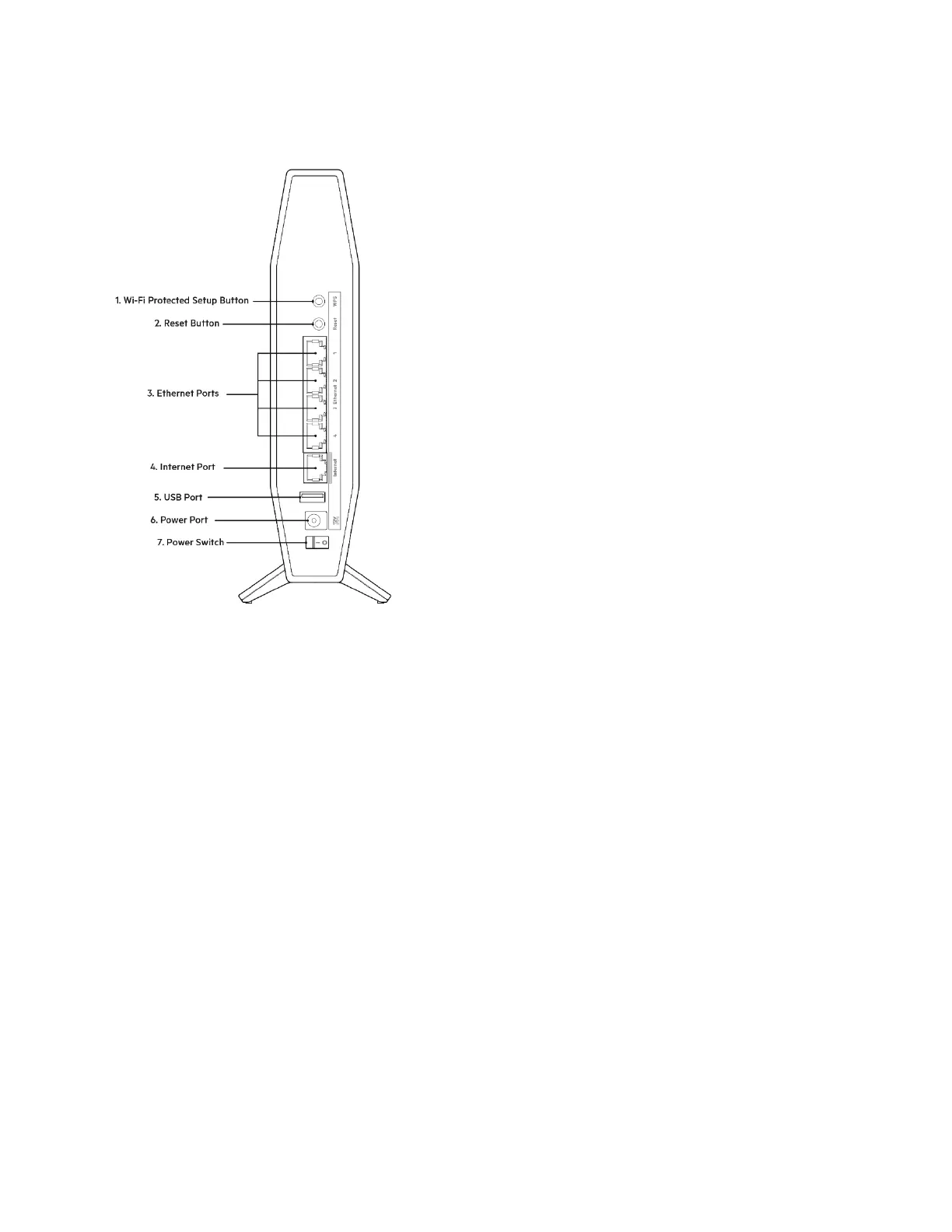

Back
Wi-Fi Protected Setup™ (WPS) button (1)-----Press to easily configure wireless security on Wi-Fi
Protected Setup-enabled network devices. The light under the button will blink while WPS pairing is
active.
Reset button (2)—Press and hold for until the power LED starts flashing to reset the router to
factory settings.
Ethernet ports (3)------Connect Ethernet cables (also called network or internet cables) to these Fast
Ethernet (10/100/1000) ports and to other wired devices on your network. The lights under the ports
will light up only when an Ethernet cable is plugged in and there is data traffic on the cable.
Internet port (4)------Connect an Ethernet cable to this port and to your modem. The light under the
port will light up only when an Ethernet cable is plugged in and there is data traffic on the cable.
USB 3.0 port (5)-----Connect and share a USB drive on your network.
Power port (6)------Connect the included AC power adapter to this port.
Power switch (7) -----Press | (ON) to turn on the router.

Belkin RT1800 Specifications

General

Ethernet WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1800 Mbit/s
Product type	Tabletop router
Product color	White
LED indicators	Power, WAN
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Ethernet
Output current	2 A
Output voltage	12 V
Certification	FCC, CE
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Security algorithms	WPA2, WPA3
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	151.8 mm
Width	41.2 mm
Height	204.7 mm
Weight	850 g
