BMW i wallbox Installation Manual

EN
13
CAUTION
5 safety rules:
Switch off on all poles and from all sources.
Secure it to prevent it being switched on again.
Verify isolation from the supply.
Earth and short-circuit.
Cover neighbouring live parts and cordon off danger areas.
1. End any charging session currently taking place and disconnect the vehicle from the Wallbox.
2. Coil the charging cable from the Wallbox.
3. Switch off the voltage supply to the Wallbox.
4. Secure the shut-off device to prevent it being switched on again.

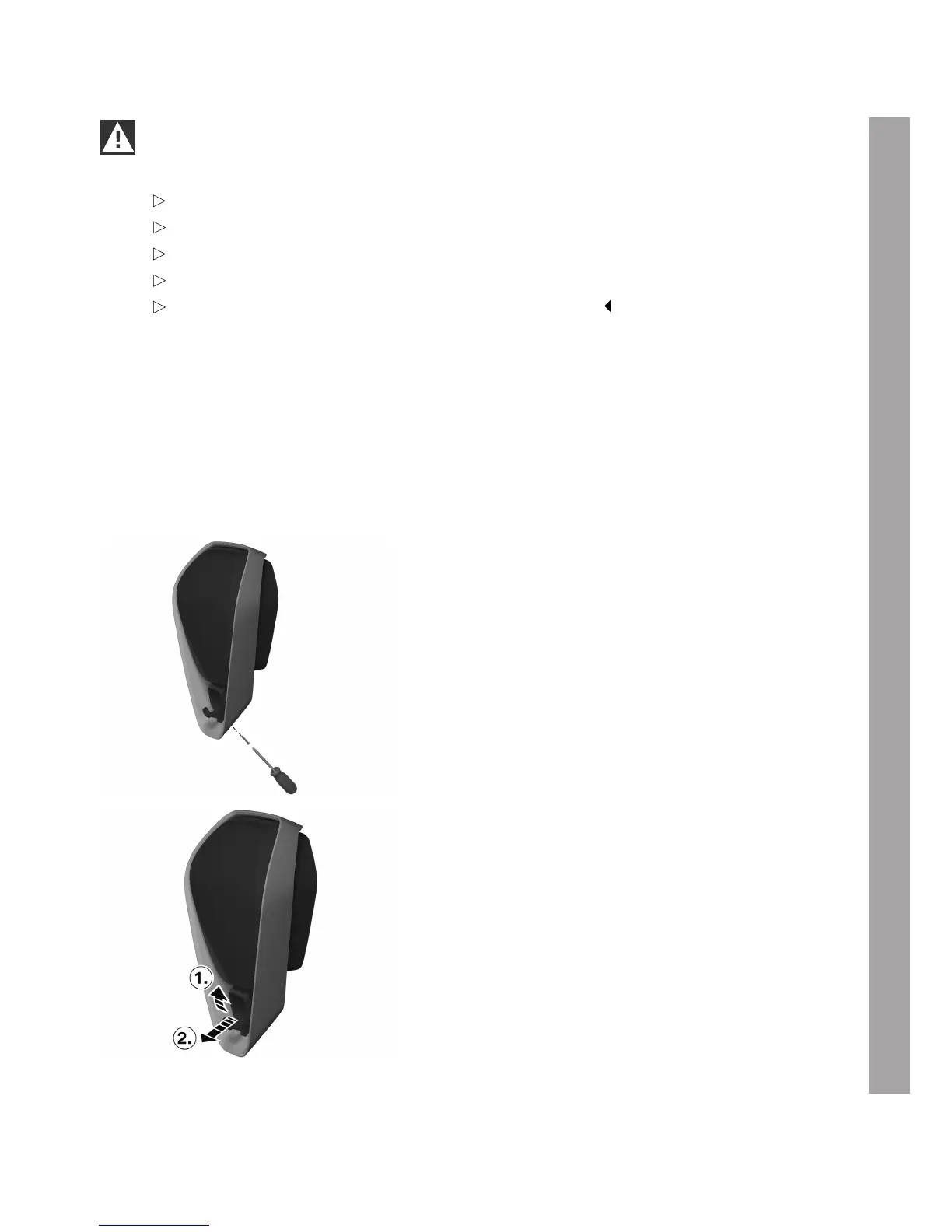

Remove the connector holder
1. Undo the screw at the bottom of the design
frame using the PH2 cross head screwdriver.
2. Raise the front connector holder slightly 1 and
guide it out towards the front 2.

BMW i wallbox Specifications

General

Connector Type	Type 2
Protection Rating	IP54
Communication Protocol	OCPP 1.6
Voltage	230 V / 400 V, 1/3-phase
Connectivity	Wi-Fi, Ethernet
Compatibility	All electric and plug-in hybrid vehicles with Type 2 connector
