BMW i wallbox Installation Manual

18
Disconnect the old charging cable
Note
Make a note of or photograph the assignment of all connected cables so that you can
reconnect them correctly after replacing the charging cable.

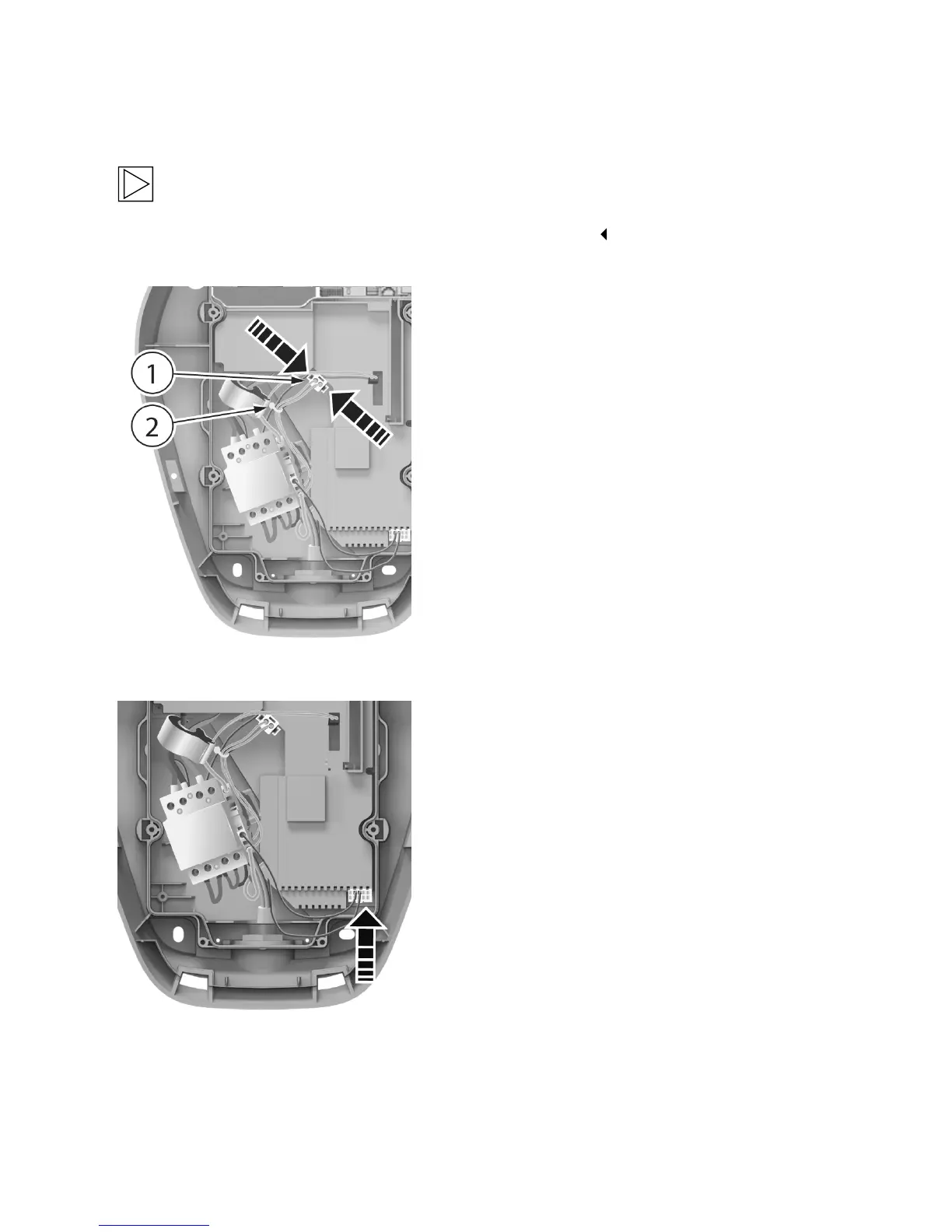

Disconnect the switch feedback (connector
at top right)
1. Remove the cable tie 2 using a side cutter.
2. Disconnect the connector 1 by pressing the
clips on the right and left together and pulling
out the connector.
Disconnect the pilot contact (connector at
bottom right)
3. Disconnect the connector for the pilot contact
by pressing the bottom clip with your index
finger and carefully pulling out the connector.

BMW i wallbox Specifications

General

Connector Type	Type 2
Protection Rating	IP54
Communication Protocol	OCPP 1.6
Voltage	230 V / 400 V, 1/3-phase
Connectivity	Wi-Fi, Ethernet
Compatibility	All electric and plug-in hybrid vehicles with Type 2 connector
