BMW i wallbox Installation Manual

14

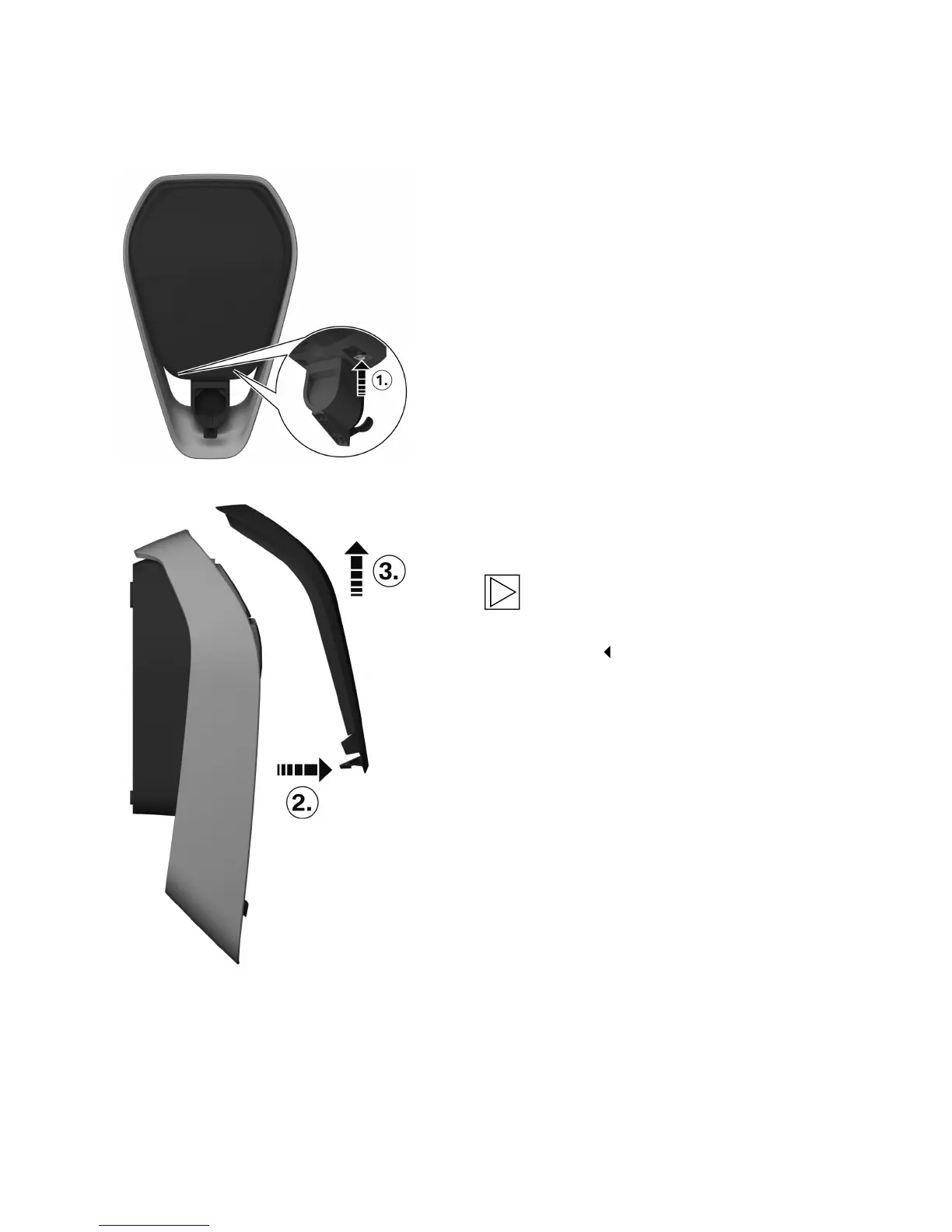

Remove the housing cover
1. Press the two interlocks 1 for the housing
cover on the underside of the Wallbox
upwards.
The housing cover should then jump out
slightly at the bottom.
2. Swing the housing cover forwards a little on
the underside 2.
3. Then release the housing cover by raising it 3.
Note
Keep the housing cover carefully to prevent
it being scratched or suffering other
damage.

BMW i wallbox Specifications

General

Connector Type	Type 2
Protection Rating	IP54
Communication Protocol	OCPP 1.6
Voltage	230 V / 400 V, 1/3-phase
Connectivity	Wi-Fi, Ethernet
Compatibility	All electric and plug-in hybrid vehicles with Type 2 connector
