BMW i wallbox Installation Manual

16
Remove the front part
IMPORTANT
Danger of damage.
The front part and the bottom of the housing are connected by a ribbon cable. Ensure that you
do not damage the ribbon table or its plug connectors by handling the front part with care.

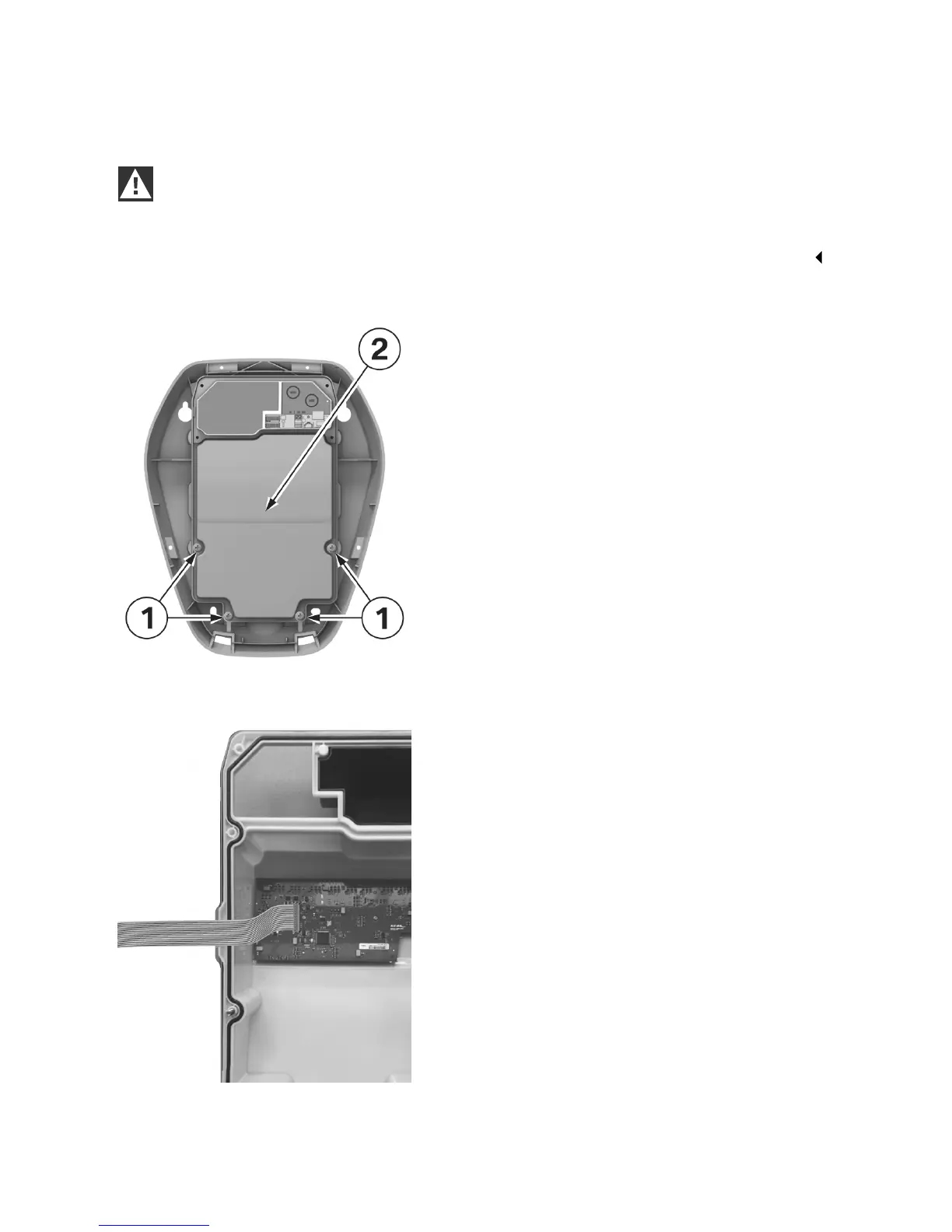

1. Remove the four screws 1 in the front part 2
using a T25 Torx screwdriver.
2. Disconnect the ribbon cable from the circuit
board inside the front part and put the front
part to one side.

BMW i wallbox Specifications

General

Connector Type	Type 2
Protection Rating	IP54
Communication Protocol	OCPP 1.6
Voltage	230 V / 400 V, 1/3-phase
Connectivity	Wi-Fi, Ethernet
Compatibility	All electric and plug-in hybrid vehicles with Type 2 connector
