32.7

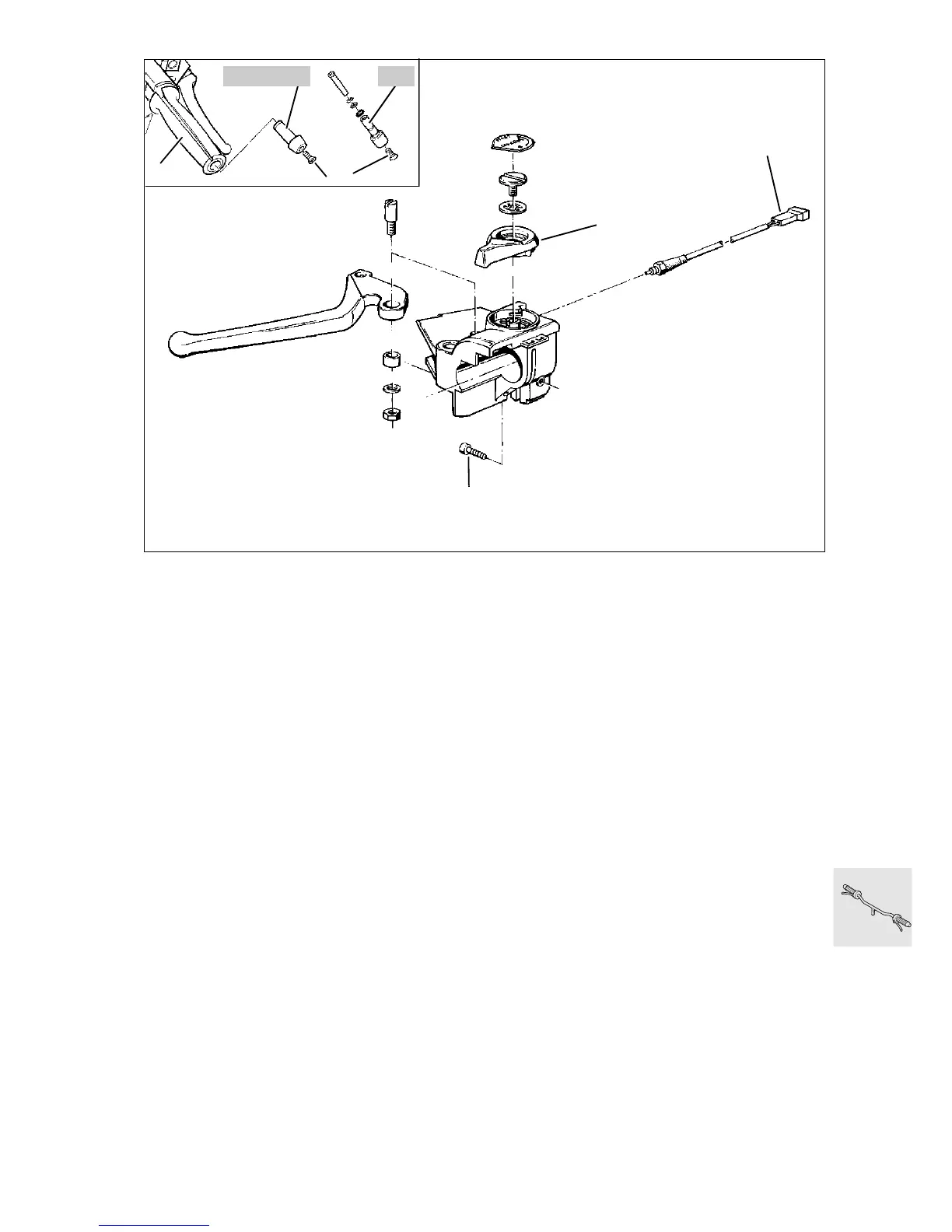

Removing and installing left handle-
bar fitting
•
[RS] Remove left side fairing.
•
[GS/R] Detach fuel tank and pull to the rear.
•
[RT] Remove upper section of fairing.
•
Separate plug connection (1) at clutch switch.
•
Disconnect cable for raised idle speed (choke) at
actuating lever (2).
•
Disconnect clutch cable from release lever, then
from handlebar lever.
•
Unfasten screw (3) and pull out handlebar
weight.
•
Remove combination switch.
With heated handlebar grips
•
Fold back rubber grip at handlebar fitting end.
•
Unfasten retaining screws for heated handlebar
grip.
•
Separate connector to heated handlebar grip.
•
Unfasten cable shoes at connector.
•
Pull lead through handlebar.
Without heated handlebar grips
•
Cut through rubber grip and pull it off.
•
Loosen clamp screw (4) on handlebar fitting.
•
Remove fitting from handlebar.
•
Install in the reverse order of work.
•
Align slot of handlebar fitting (arrow) with punch-
mark on handlebar.
•
Secure handlebar grip with
Loctite 638 adhe-sive and surface activator.
•
Adjust clutch cable and lubricate pivot with
Shell Retinax A.
a See Group 00
•
Check/adjust raised idle speed (choke) setting.
a See Group 00
GS320010
4
3
2
RS
1
4
GS/R/RT
