BMW R 1100 RT User Manual

46.27

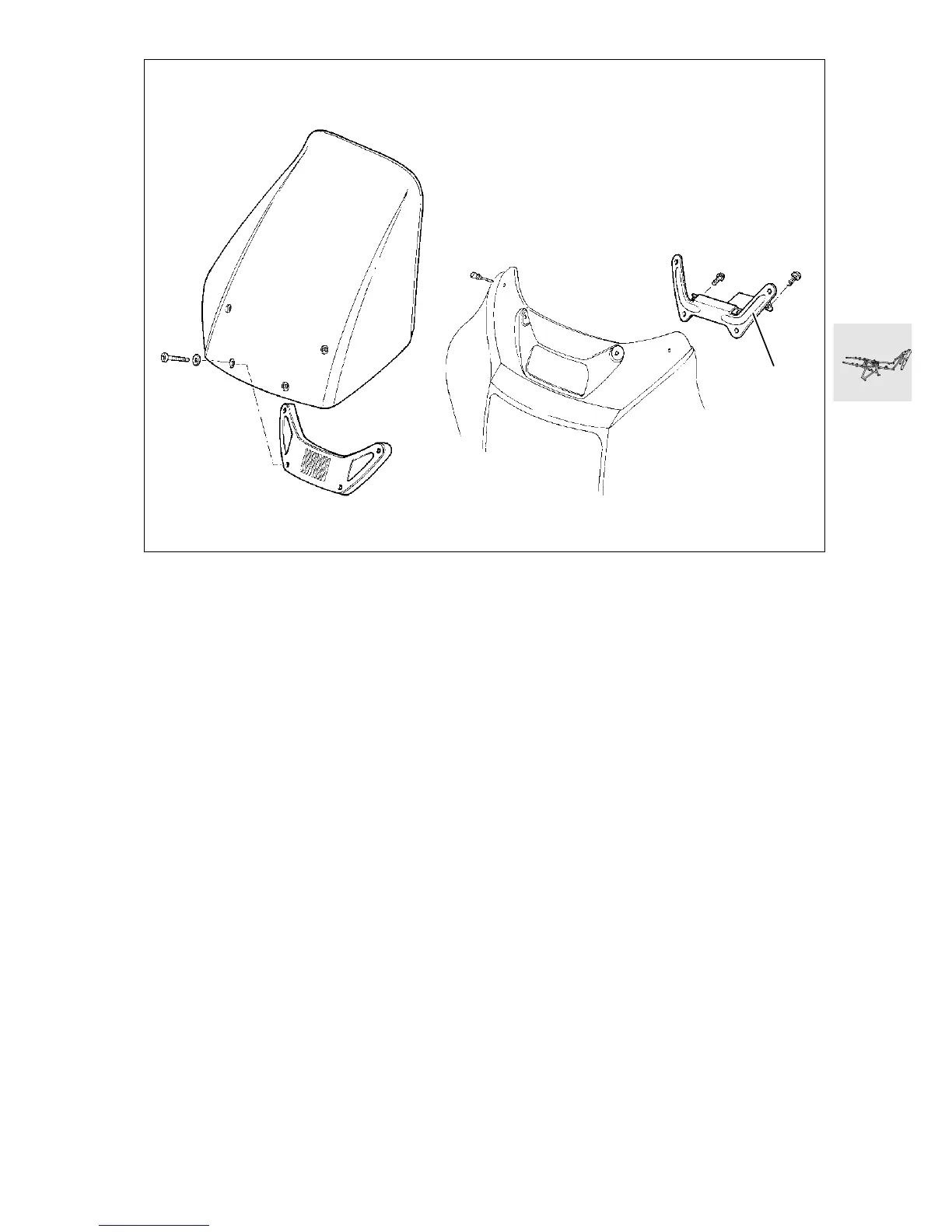

[RS] Removing and installing wind-
shield
•
Remove windshield.
•
Remove front side sections of fairing.
•
Remove inner fairing cover.
•
Detach instrument cluster.
•
Detach top section of fairing.
•
Remove headlight.
•
Remove bracket (1) for windshield.
•
Install in the reverse order of work.
1
RS460080

BMW R 1100 RT Specifications

General

Displacement	1085 cc
Bore x Stroke	99 mm x 70.5 mm
Power	66 kW (90 hp) at 7, 250 rpm
Torque	95 Nm at 5, 500 rpm
Transmission	5-speed
Final Drive	Shaft drive
Engine Type	Air/oil-cooled flat twin (boxer)
Front Suspension	Telelever with central spring strut
Rear Suspension	BMW Motorrad Paralever
Front Brakes	Dual disc, 305 mm
Rear Brakes	Single disc, 2-piston caliper
Fuel Capacity	25 liters
Seat Height	805 / 825 mm (adjustable)
Wheelbase	1485 mm
