BMW Z3(E36/7) User Manual
4
of 1
of 1 rating
367 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

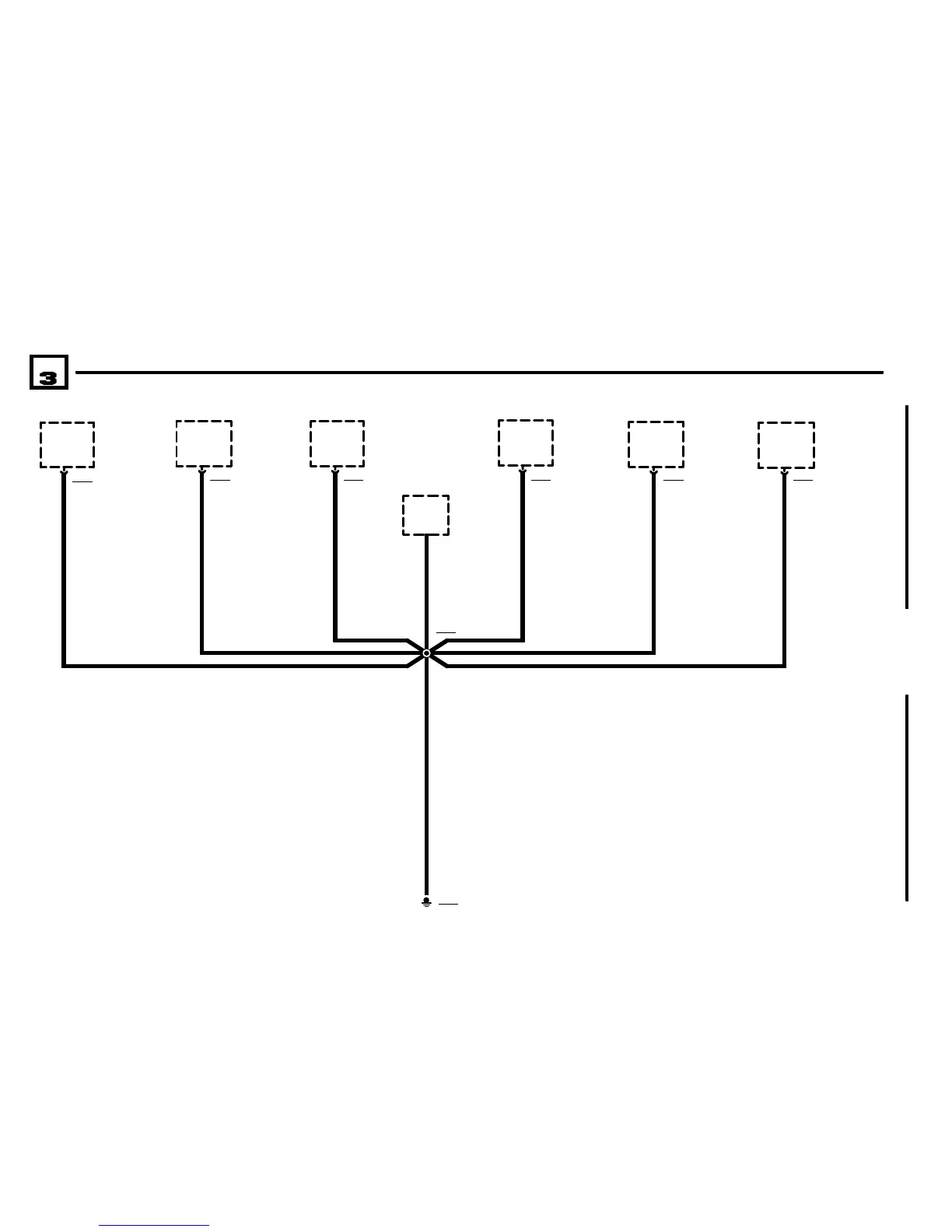

M VERSIONS
BM
BMW
BMW
BMW
Z3
T6154
CYL. 4 IGNITION
COIL
X6152
2
GROUND DISTRIBUTION
GROUND X6456
01/01
0670.4Ć
2001
08
X6153
2
1 BR
T6152
CYL. 2 IGNITION
COIL
T6151
CYL. 1 IGNITION
COIL
X6156
2
T6156
CYL. 6 IGNITION
COIL
T6153
CYL. 3 IGNITION
COIL
2
T6155
CYL. 5 IGNITION
COIL
X6155
X6456
X6154
2
X6900
1 BR
X6151
2
1 BR
1 BR
1 BR
1 BR
C6000
SUPPRESSION
CAP
ACITOR
1 BR
1.5 BR
67
69
Table of Contents
Table of Contents
2
Index
4
Cellular Telephone
4
Analog Clock
4
Electro-Hydraulic
5
Convertible Top
5
Heated Seats
6
Headlight Washer (Sra)
6
Schematics
12
General Conventions
13
Symbols
14
Power Distribution Chart
18
Front Power Distribution Box
18
In E–Box
19
Relay Panel under LH Side of Dashboard
20
B+ Junction Point under LH Side of Dashboard
21
Fuse Chart
22
Fuses 1 to 29
22
1290.0 E-Box Fan
22
3452.2 Dynamic Stability Control
22
Fuses 30 to 205
25
Power Distribution
28
Z3 Versions Early Production
31
Z3 Versions Late Production
32
M Versions
33
Fuse Details
37
Fuses 1, 2, 3, and 4
37
Fuses 5, 6, 7, and 8
38
Fuses 9 and 10
39
Fuses 11, 12, and 13
40
Fuses 14, 15, 16, and 18
41
Fuses 19, 20, 21, and 22
42
Fuse 23
43
Fuses 24 and 25
44
Fuse 26
45
Fuses 27, 29, and 30
47
Fuse 31
48
Fuses 32, 33, 34, and 35
49
Fuses 36, 37, 38, and 39
50
Fuses 40 and 41
51
Fuses 43, 44, and 45
52
Fuses 46 and 48
53
Fuses 51, 52, 53, and 54
54
Fuses 51, 52, and 53
55
Fuses 201 and 202
56
Fuses 203, 204, and 205
57
4 Ground Distribution
60
Ground X165
60
Ground Distribution
61
Ground X166
61
Grounds X170 and X492
63
Grounds X494, X861, X1116, and X1441
64
Ground X6454
65
Grounds X6455 and X6456
67
Ground X6456
68
Ground X9633
69
(Zke IV)
71
Ground X10010
71
Ground X13004
72
Ground X13006
73
M Roadsterm Coupe
74
Grounds X13016 and X13032
75
Ground X18170
76
(6-Cylinder M54)
78
Block Diagram
78
Data Link
78
System (Air Bag)
78
RXD and TXD
79
Data Link Connector, Pins 1, 7, 14, and 16
80
Data Link Connector, Pins 2 and 19, and OBD II Connector
81
Data Link Connector (X6002)
82
Engine Control System MS43 (6–Cylinder M54)
83
Z3 Versions
83
Pin Assignments (Z3 Versions)
84
X60001
84
X60002
84
X60003
85
X60004
87
X60005
89
Engine Control System MS43 (6–Cylinder M54)
92
Engine Control System MSS54 (6–Cylinder S54 B32)
100
Pin Assignments (M Versions)
101
Charging System
121
Start
122
E–Box Fan
126
Electronic Transmission Control (EGS: A5S 360R)
127
Pin Assignments
128
X70001
128
X70003
128
X70004
130
Shift Lock, Data Link, Kick–Down Switch
134
Supplemental Restraint System (Air Bag)
137
X74
138
Side Air Bag
141
Slip Control (ABS/ASC)
144
X1170
145
Dynamic Stability Control (DSC III)
149
Z3 Versions Early Production and M Versions
149
Pin Assignments (Z3 Versions Early Prod. and M Versions)
150
X1746
150
Dynamic Stability Control (DSC MK 60)
158
Pin Assignments (Z3 Versions Late Production)
159
X18303
159
Tire Inflation System
167
Tire Pressure Warning System (RDW)
168
Power Mirrors
169
Outside Mirror
169
Electrochrome Rear View Mirror
171
Power Mirrors
171
Inputs, Drive–Away Protection
172
ZKE Central Locking (ZV)
172
Input Details
173
Zke Central Locking (Zv)
173
Output Details
174
ZKE Power Windows (FH)
178
Zke Power Windows (Fh)
179
Power Seats
181
Driver’s Seat
181
Passenger’s Seat
182
Power Seats
182
Heated Seats
185
5410.5 Power Tilt Sunroof
186
Electro–Hydraulic Convertible Top
187
Central Body Electronics (ZKE IV)
189
X10182
190
X13252
191
X13253
191
X13254
192
Central Body Electronics
194
Horn
196
Drive–Away Protection (EWS III)
197
Drive-Away Protection
199
Wiper/Washer Module (WWM)
201
High
201
Wiper/Washer Module (Wwm)
202
Wiper/Washer (HIGH)
203
Headlight Washer (SRA)
204
Windshield Washer Jet Heaters
205
Instrument Cluster
206
X16
207
X17
208
X271
209
Indicators
210
Instrument Cluster
210
Anti-Theft System (Alpine)
211
(Dsc Mk 60)
213
Console Instruments
216
Analog Clock
217
Light Switch Details
218
Light Switch Details
219
Headlights/Fog Lights
222
Turn/Hazard Lights
226
6314.0 Park/Tail/Underhood Lights
230
License Plate/Luggage Compartment Lights
234
Canada
234
Usa
236
Back up Lights
238
Brake Lights
239
Interior Lights
240
Interior Accessories
241
Crash Control Module
242
Rear Window Defogger
245
Integrated Heating–And Climate Control
246
X18349
248
X18350
248
Power, Air Flow Control
250
Compressor Controls
252
Auxiliary Fan
253
Compressor Control and Water Supply
256
Radio/Hifi
258
Coupe
258
Radio/Hifi
259
Coupe with Harman Kardon Sound System
260
Coupe with Hifi
261
Roadster with Hifi
262
Roadster with Harman Kardon Sound System
265
Cellular Telephone (Provisions)
269
Cruise Control (Tempomat)
270
Cruise Control (Tempomat)
271
Anti–Theft System (DWA)
273
Anti-Theft System (Dwa)
274
Anti–Theft System (Alpine)
277
Board Computer (Bc - Low)
279
Remote Control ZV/DWA
280
Component Location Chart
281
Component Location Chart
282
Component Location Views
316
Component Location Views
317
Splice Location Views
349
Splice Location Views
350
Body Harness
352
Engine Harness M54
354
Engine Harness S54
355
Connector Views
356
Connector Views
357
Other manuals for BMW Z3(E36/7)
Electric Troubleshooting Manual
357 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the BMW Z3(E36/7) and is the answer not in the manual?
Ask a question
BMW Z3(E36/7) Specifications
General
Brand
BMW
Model
Z3(E36/7)
Category
Automobile
Language
English
Related product manuals
BMW Z3 E37 1998
347 pages
BMW Z3 roadster
16 pages
BMW Z3 COUPE 2002
187 pages
BMW Z3 COUPE 2001
187 pages
BMW Z3 ROADSTER 2.3
198 pages
BMW Z3 roadster 2.8
198 pages
BMW Z3 roadster 3.0i
187 pages
BMW Z4
330 pages
BMW 2009 Z4
248 pages
BMW 2006 Z4
48 pages
BMW 2002 Z8
175 pages
BMW 2010 Z4
254 pages
