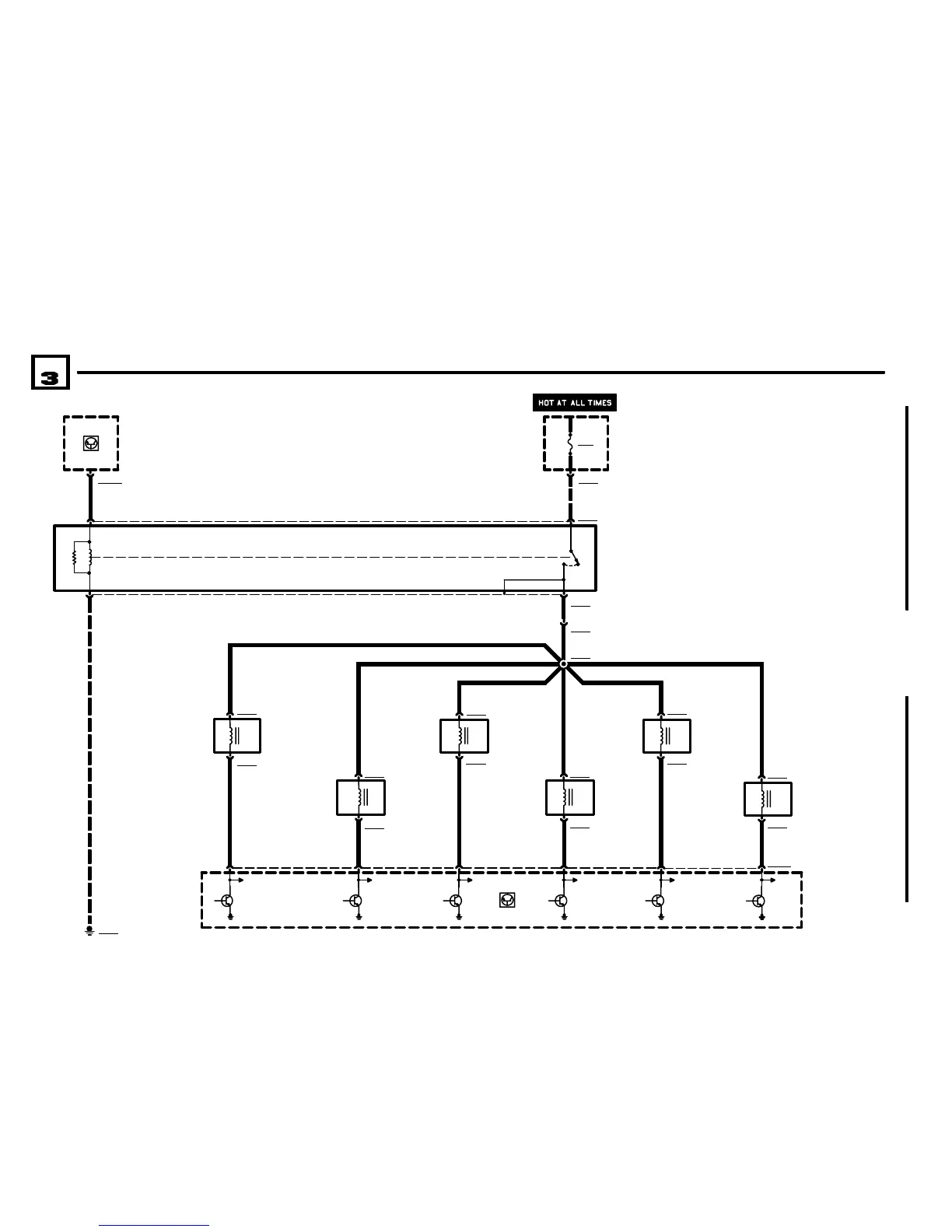

ENGINE CONTROL SYSTEM MS43 (6–CYLINDER M54)
2
01/01
1210.26Ć
2001
02
A6000
ENGINE CONTROL
MODULE (DME)
Y6106
CYL. 6 FUEL
INJECTION VALVE
–
+
Y6101
CYL. 1 FUEL
INJECTION VALVE
–
+
Y6102
CYL. 2 FUEL
INJECTION VALVE
–
+
Y6103
CYL. 3 FUEL
INJECTION VALVE
–
+
Y6104
CYL. 4 FUEL
INJECTION
VALVE
–
+
Y6105
CYL. 5 FUEL
INJECTION VALVE
–
+
33 34 35 36 38 X60003
1 X6101
1 X6103
1
X6105
1 X6106
1 X6104
1 X6102
2 X6102
2 X6104 2 X6106
2
X6105
2 X6103
X6101
.75 BR/WS .75 BR/RT .75 BR/GE .75 BR/BL .75 BR/GN .75 BR/VI
37
31 31 31 31 31
31
10
FUSE DETAILS
0670.3
F205
30A
X8680
P98
FUSE HOLDER IN
E–BOX
.5 RT/GE .5 RT/GE .5 RT/GE .5 RT/GE .5 RT/GE .5 RT/GE
4
85
30
87
X6327
6
X6327
2
K6327
INJECTION VALVES
RELAY
X6454
GROUND
DISTRIBUTION
0670.4
1 X60001
A6000
ENGINE CONTROL
MODULE (DME)
86
8
5 GN
X60537
2.5 RT/GE
2.5 RT/GE
X6970
Z3 VERSIONS
