Bosch ACS 500 Series User Manual

Robert Bosch GmbH
en 15
ACS 500
1 689 975 197 (2006-09-22)
9. Repairs
Warning - Danger of frostbite
During repair work on the ACS 500 refrigerant
in liquid or gaseous form can escape and cause
frostbite to the body.
Close valves on refrigerant flask.
Wear protective goggles.
Wear gloves.
9.1 Opening and closing the ACS 500
9.1.1 Electronic compartment
H
P
LP
V
R
1
3
4
a
K
g
/g
m
in
/s
m
b
a
r
45
97
86/
12
1
1
2
3

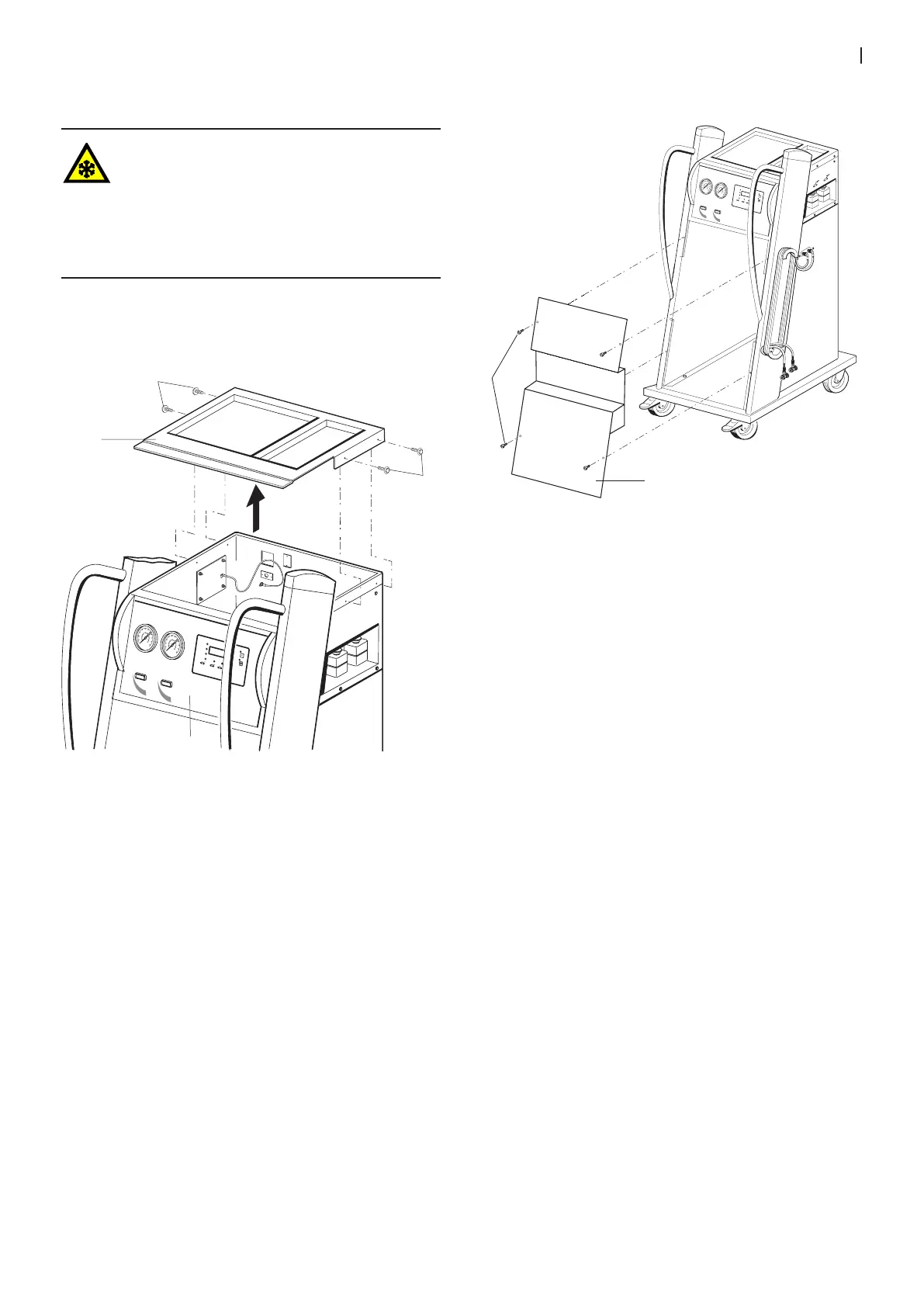

Fig. 8: Electronic compartment
Opening the electronic compartment:
1. Remove four self-tapping screws (1).
2. Replace cover (2) backwards and lift upwards.
Closing the electronic compartment:
1. Replace cover (2) and slide forwards underneath the
control panel (3).
2. Secure cover with four self-tapping screws (1).
e
e
e
9.1.2 Cold chamber
H
P
LP
459
77
9-
13
BO
S
CH
AC
S 40
0
2
1
K
g
/
g
m
in
/
s
R
1
3
4
a
V
Fig. 9: Cold chamber
Opening the cold chamber:
1. Remove hexagon socket screws (2).
2. Slide on front cover (1).
Closing the cold chamber:
1. Slide on front cover (1).
2. Secure front cover with four hexagon socket
screws (2).
