D9412GV4/D7412GV4/D7212GV4 | Installation and Operation Guide | 9.0 Off-Board Points
Bosch Security Systems, Inc. | 3/12 | F01U266054-01 42

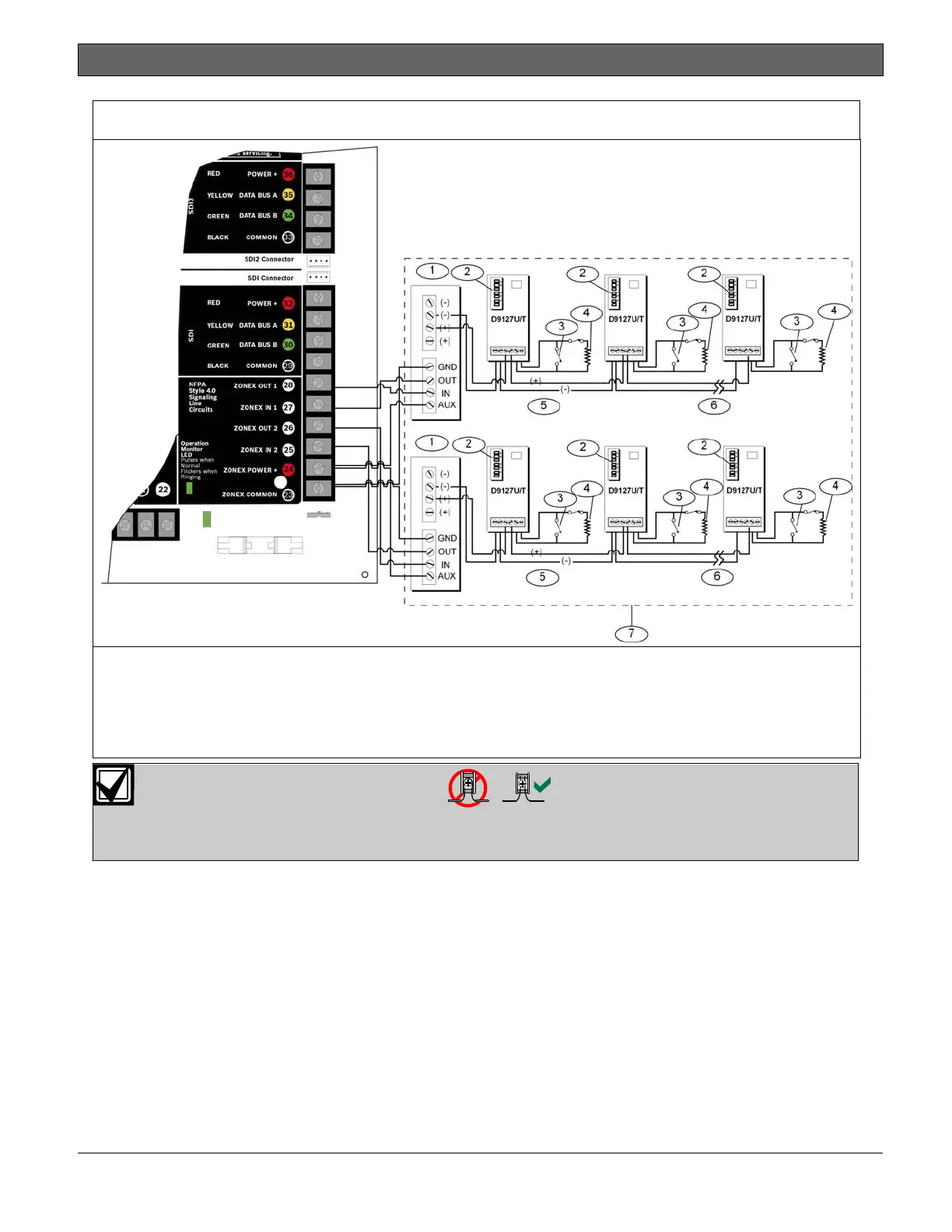

Figure 14: Connecting the D8125 POPEX to the D9412GV4 Control Panel
1 - D8125 POPEX Module
2 - Switch block
3 - D9127 Sensor Loop
4 - 33 kΩ EOL resistor (P/N: P106F [15-03130-
002], package of eight)
5 - Zone expansion loop
6 - Up to 119 POPITs
7 - Expansion zones
For system supervision, do not use looped wire terminals. Break the wire run to provide
supervision of the connections.
