D9412GV4/D7412GV4/D7212GV4 | Installation and Operation Guide | 16.0 Faceplates
Bosch Security Systems, Inc. | 3/12 | F01U266054-01 75
16.0 Faceplates
16.1 GV4 Series Faceplate

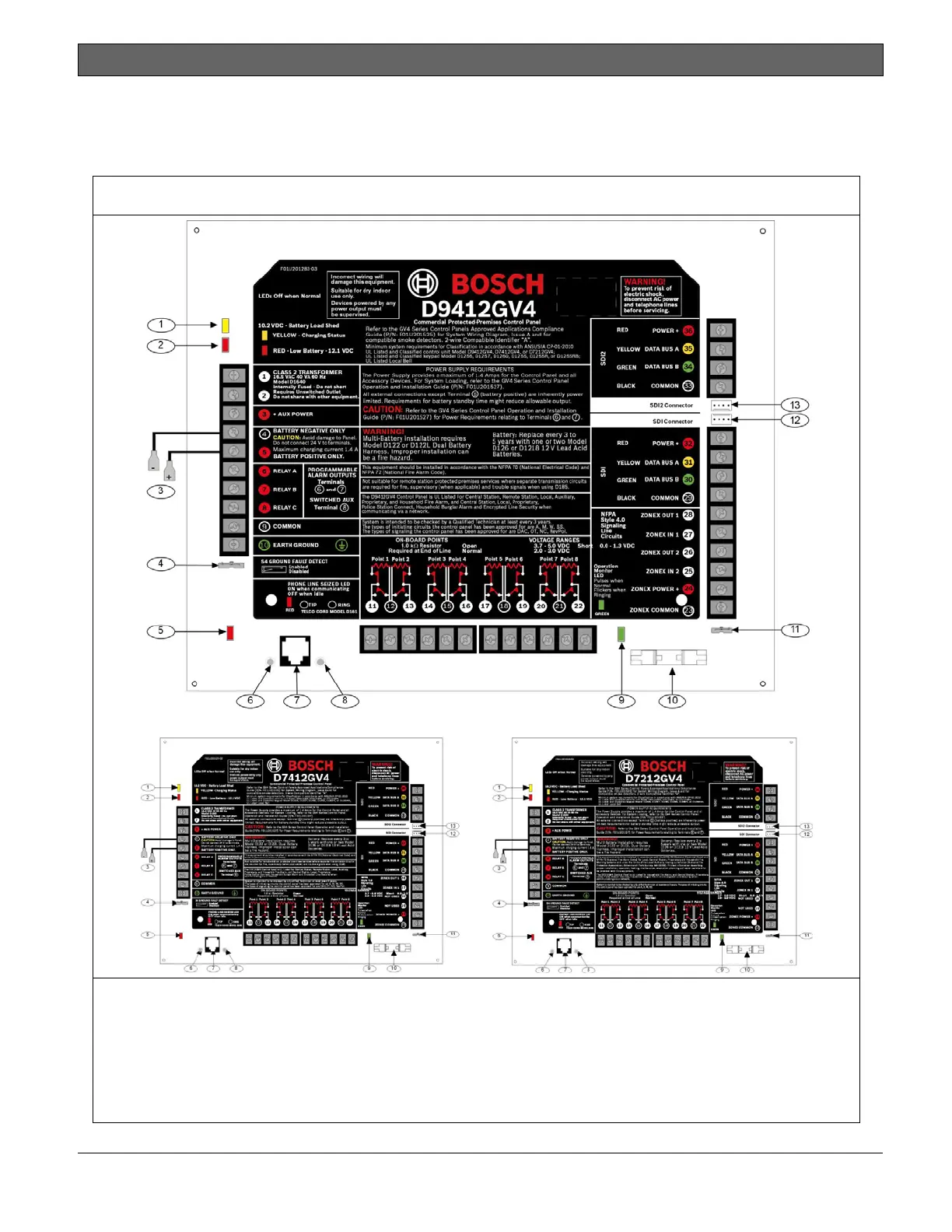

Figure 33: D9412GV4/D7412GV4/D7212GV4 Faceplate
1 - Charging status LED (yellow)
2 - Low battery LED (red)
3 - Color-coded battery leads
4 - Ground fault detect enable
5- Phone LED (red)
6 - Tip
7 - Telephone cord connector
8 - Ring
9 - Operation monitor LED (green)
10 - Accessory connector
11 - Reset pin
12 - SDI interconnect wiring connector
13 - SDI2 interconnect wiring connector
