A.3 SDI and Zonex Devices System Wiring System Wiring

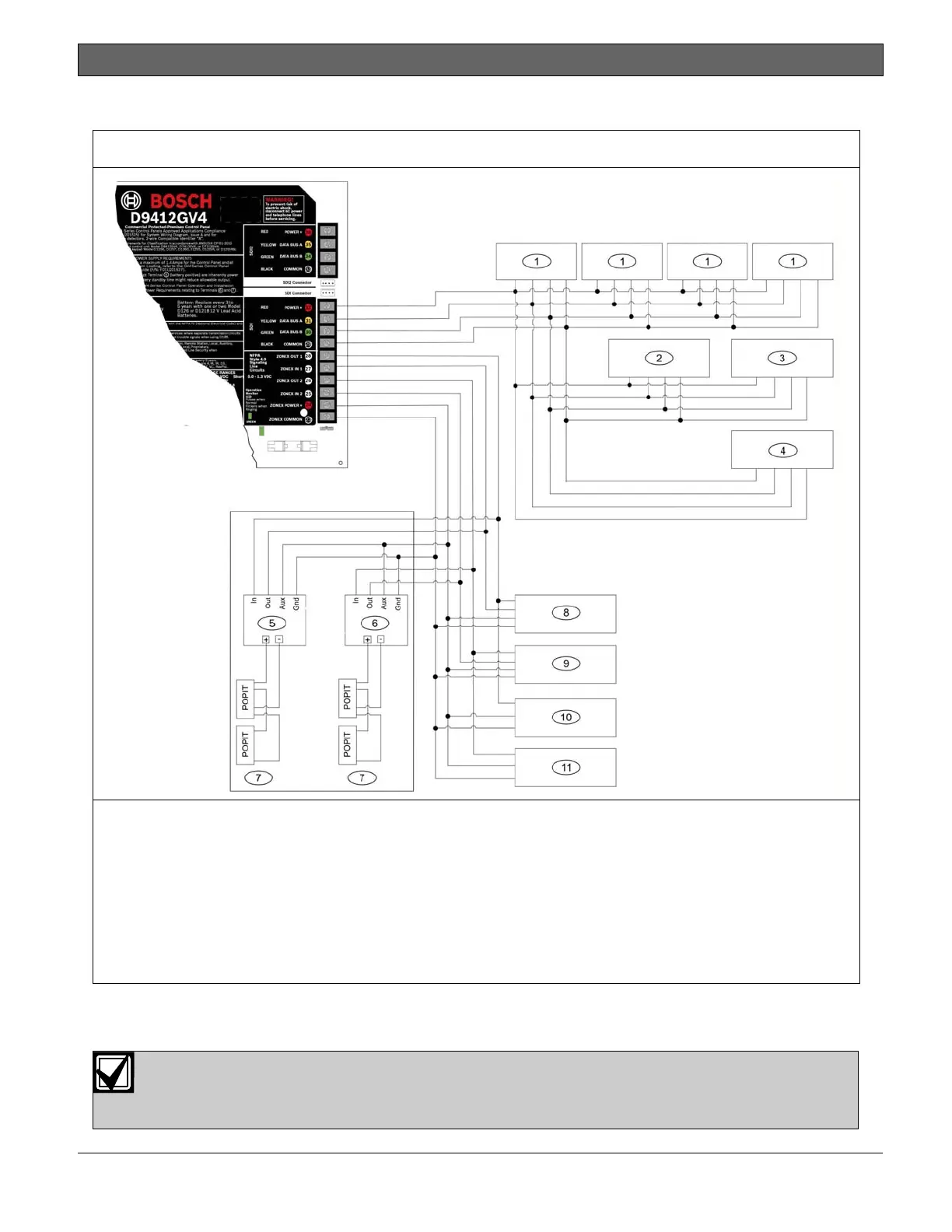

Figure 36: D9412GV4 SDI and Zonex Devices System Wiring System Wiring
1 - Up to 16 supervised D1255 (all versions), D1255RB,
D1256, D1256RB Keypads, or D1257RB or D1257 Fire
Annunciators, or up to 8 supervised D1260 Keypads
(all versions)
2 - Up to 8 D9210C Access Control Interface Modules
3 - Up to 3 supervised 9131A Parallel Printer Interface
Modules
4 - Up to 3 DX4020, ITS-DX4020-G, or B420 Ethernet
Communication Modules
5 - D8125 POPEX No.1
6 - D8125 POPEX No. 2
7 - Up to 119 D9127U/T POPITs
8 - Zonex 1: 15 D8128Ds maximum*
9 - Zonex 2: 15 D8128Ds maximum*
10 - Zonex 1: Up to 8 D8129s maximum*
11 - Zonex 2: Up to 8 D8129s maximum*
* The number of D8129 OctoRelays that can be connected to each zonex terminal on the control panel is limited by the
number of D8128D OctoPOPITs connected to the same terminal. Refer to the D8128D Installation Guide (P/N: F01U070537)
or the D8129 Operation and Installation Guide (P/N: F01U036302) for specific information.
Terminals 24 through 36 are power limited, supervised.
Fire and Intrusion devices must be on separate circuits. Refer to ICP-SDI-9114 Installation
Instructions (P/N: F01U030068).
