Classification of mechanically active materials 3S6
Classification of mechanical environmental conditions 3M11
Tab. 7-1: Allowed classes of environmental conditions during operation
For a better overview, some essential environmental influencing variables of
the previously mentioned classifications are listed. Unless otherwise speci‐
fied, the specified values are the values of the particular class. However,
Bosch Rexroth reserves the right to adjust these values at any time based on
future experiences or changed environmental factors.
Deviating from DIN EN 60721-3-3 permissible ambient conditions
Environmental factor Unit Value
Temperature °C
0 ... +40
1)
Relative air humidity %
5 ... 95
1)
Absolute air humidity g/m³
1 ... 29
1)
1) Differs from DIN EN 60721-3-3
Tab. 7-2: Deviating permissible ambient conditions
7.2.2 Installation altitude
The BA1N energy storage device performance data specified are applicable
for
● Installation altitudes from 0 m to 1000 m above sea level
● Ambient temperatures ranging from 0 °C to +40 °C
The performance data of energy storage devices used outside of the above
ranges is reduced according to the following figure.
① Usability to capacity, depending on the surrounding air temper‐
ature
② Usability to capacity, depending on the installation altitude
f
T
Temperature utilization factor
t
A
Ambient temperature in degrees Celsius
f
H
Height utilization factor
h Installation altitude in meters

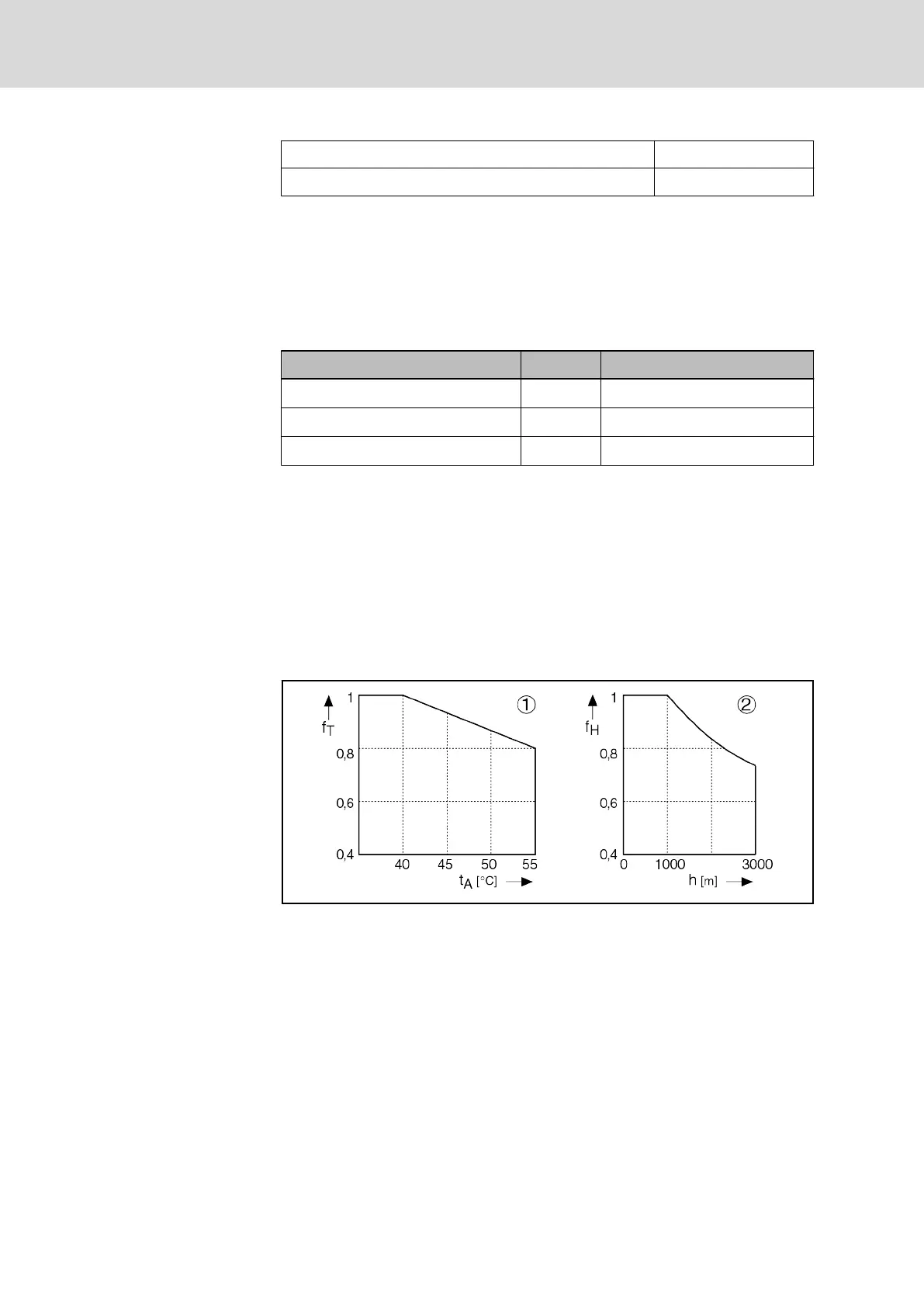

Fig. 7-1: Utilization factors
If either the ambient temperature or the installation altitude is above the nomi‐
nal data:
1. Multiply the data specified in the selection data by the determined uti‐
lization factor.
2. Ensure that the reduced data are not exceeded by your application.
28/49
Commissioning and operation of BA1N energy storage device
BA1N Kinetic Energy Buffer
Bosch Rexroth AG R911393267_Edition 01
