9.1 Overview
XSER
XVID
X10
XDP
XCDI+tx
XETH2
XUSB1...4
XUSB6
XETH1
XUSB5
X10
XDP
XETH2
XUSB1...4
XUSB6
XETH1
XUSB5

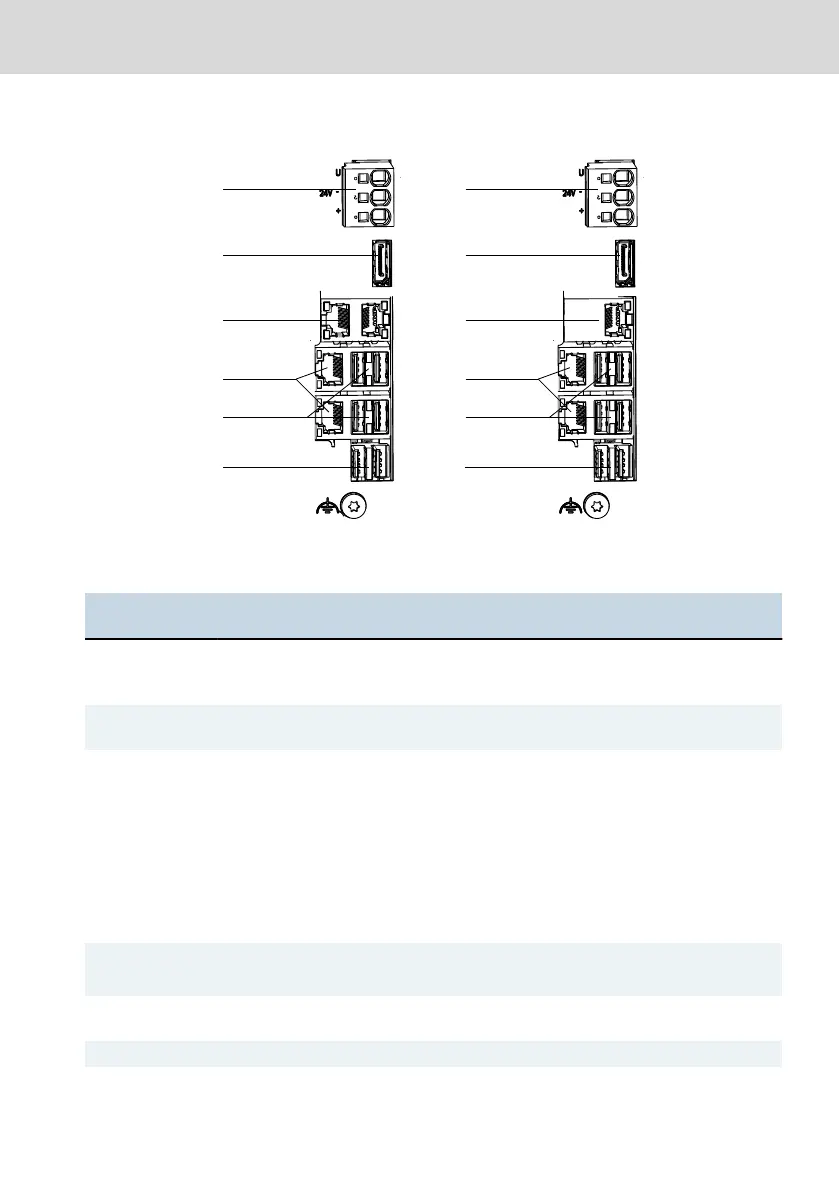

Fig. 9-1: Interfaces at the device
The following connections are available at the control cabinet PC:
Name at the
housing
Connection type Connection type
(at the device)
Mating connector or cable
(from outside)
X10 PC voltage supply:
24 V DC
Male connector
terminal PC4/3-
G7.62
Socket terminal
PC4/3-G7.62
XDP Connection for external monitor DisplayPort socket,
(20-pin)
DisplayPort plug, (20-pin)
XSER
and
XVID
or
XCDI+tx
CDI interface, data
CDI interface, image
CDI+ interface, data and image
RJ45 socket,
8-pin
RJ45 socket,
8-pin
RJ45 socket,
8-pin
RJ45 plug
(Twisted pair, 8-wire)
RJ45 plug
(Twisted pair, 8-wire)
RJ45 plug
(Twisted pair, 8-wire)
XETH1, XETH2 Ethernet interfaces
10/100/1000 Base-T
RJ45 socket, 8-pin RJ45 plug
(Twisted pair, 8-wire)
XUSB1 to XUSB6 USB interfaces USB socket, 4-pin,
type A
USB plug, 4-pin
Internal connections
IndraControl VPB 40.4 15/57
Interfaces
R911376309_Edition 02 Bosch Rexroth AG
