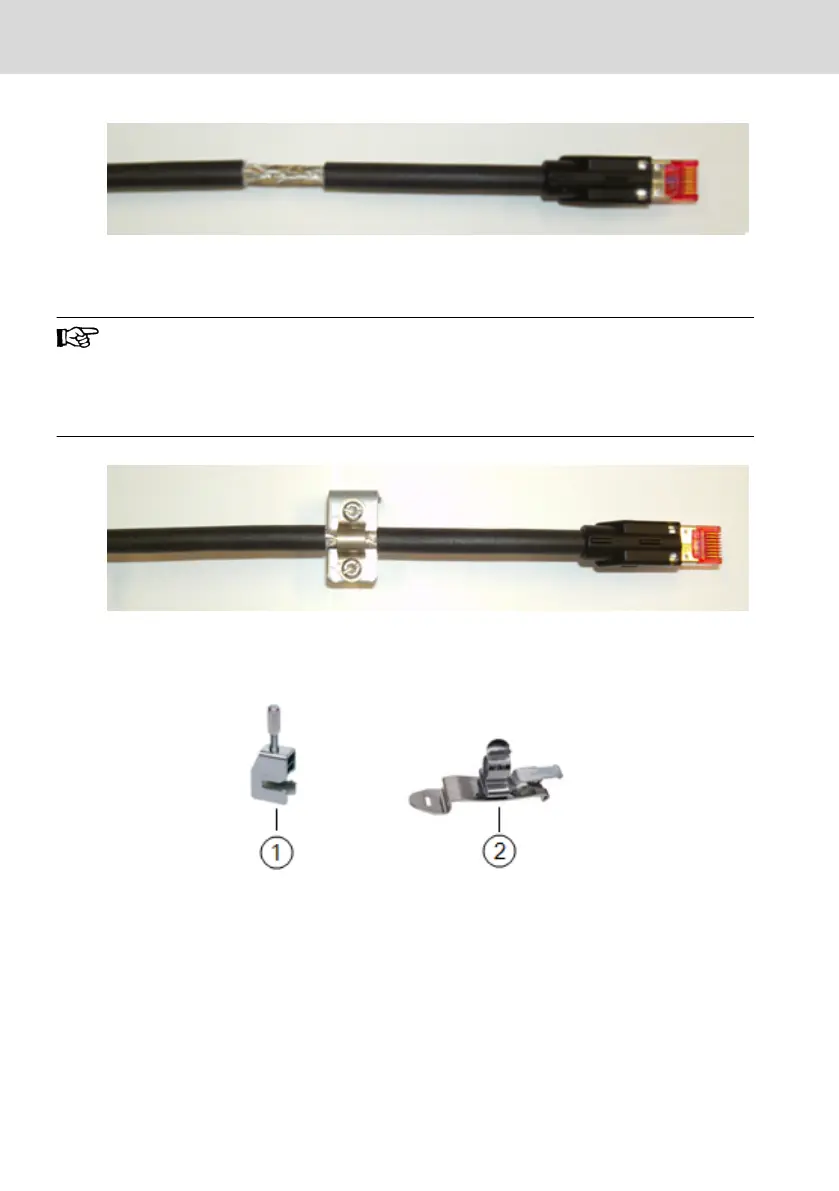

Fig. 10-20: Foil shield removed
3. Fasten cable with EMC shielding clamp.
Ensure that the CDI cable is not crimped when connecting the
shielding to the equipotential bonding. Use an EMC shielding clamp
suitable for the cable diameter. Crimping of the cable impairs the
electrical properties of the CDI cable. Avoid mechanical stress
(tensile, compressive) on the plug.
Fig. 10-21: Example: Attached shielding clamp
More shielding clamps:
①
Company Ikotec
② Company Phoenix Contact
Fig. 10-22: Shielding clamps
11 Commissioning
The product can be used directly. No configuration is required.
For software descriptions, refer to the project planning manual "IndraControl V-
Devices Operating Systems" (see tab. 1-2 "Related documents" on page 2). The
following functions are described in this project planning manual:
40/57
Commissioning
IndraControl VPB 40.4
Bosch Rexroth AG R911376309_Edition 02
