16 - Design Guide
User Interface for Beam Shaping
Raked-Floor Optimized

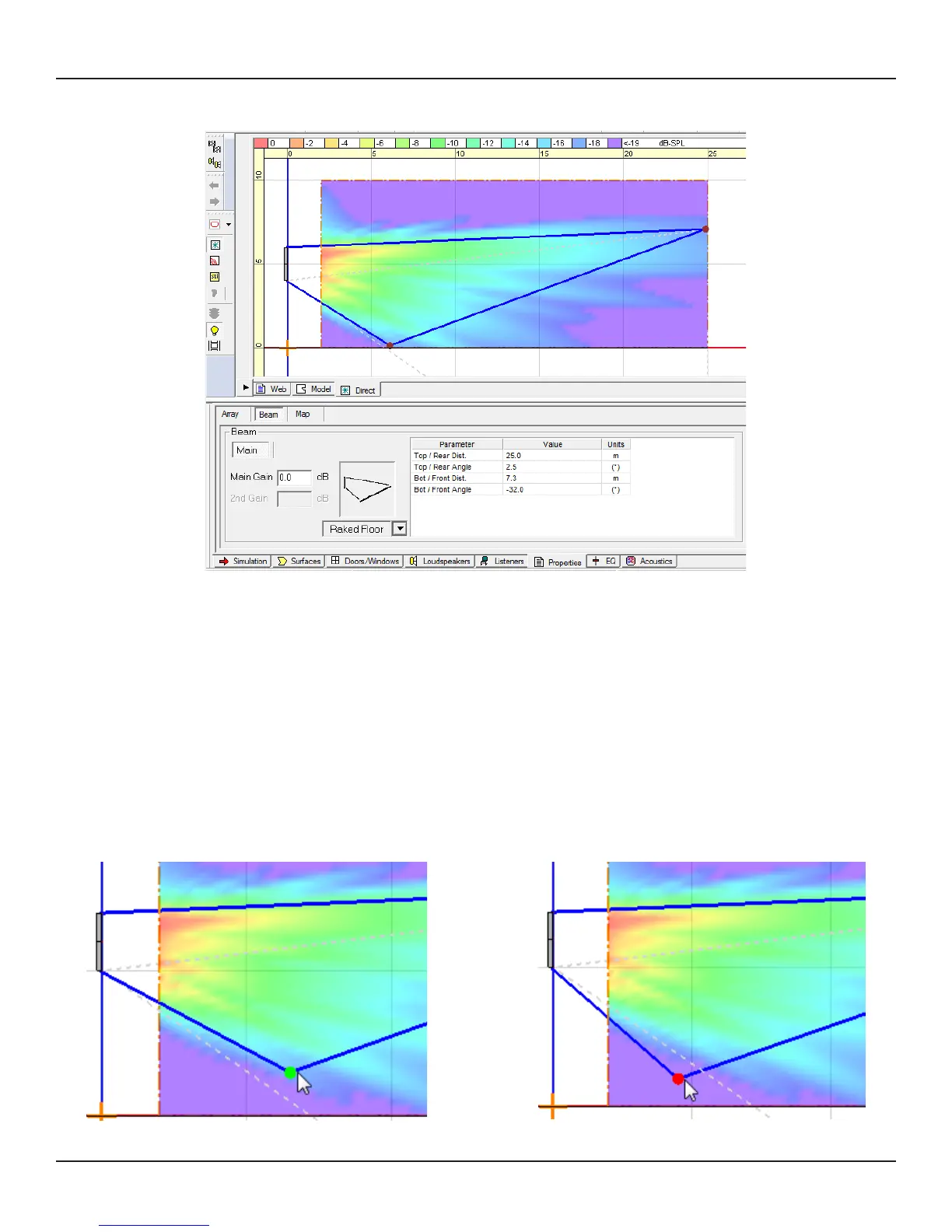

Select Raked Floor from the beam type selection. This beam type achieves a vertically asymmetrical beam
radiation, which is suitable for covering a raked floor, or covering a flat floor from a relatively high array
position.
The beam shape can be adjusted with one of the following:
A: Select and move the edges of Top (Rear) throw line and Bottom (Front) throw line on the Vertical
Coverage Map.
B: Enter the distance and angle values of the above throw lines in the cell.
A and B are linked and are automatically updated when the beam shape is changed.
Each Beam type has its own limitation for the Beam Parameters. For example, you cannot spread the beam
too much with Raked-Floor Optimized. When you drag the edge, observe the color of the circle of the line
edge; if it is green, the edge is within limitation. When it turns red, it is outside the limitation and the edge
snaps back to the original position.
Within the limitation (green) Outside of the limitation (red)
