Modeler Properties and Operation
Modeler® Properties and Operation
Beam pattern design starts using Bose® Modeler software. In Modeler, you can look at the coverage both
on the horizontal plane and the vertical plane in real time, and adjust the beam shape to match the room.
You can also specify parameters for the Basic Steer/Spread beam type within ControlSpace® Designer™
software (CSD) directly, without needing Modeler. Refer to the “Setting Up MSA12X Basic Beam Steering and
Spreading” topic in the CSD help system for more information.
Note: Room modeling using Modeler software is not covered in this document. For room modeling, refer to
Modeler help materials.
Place Array

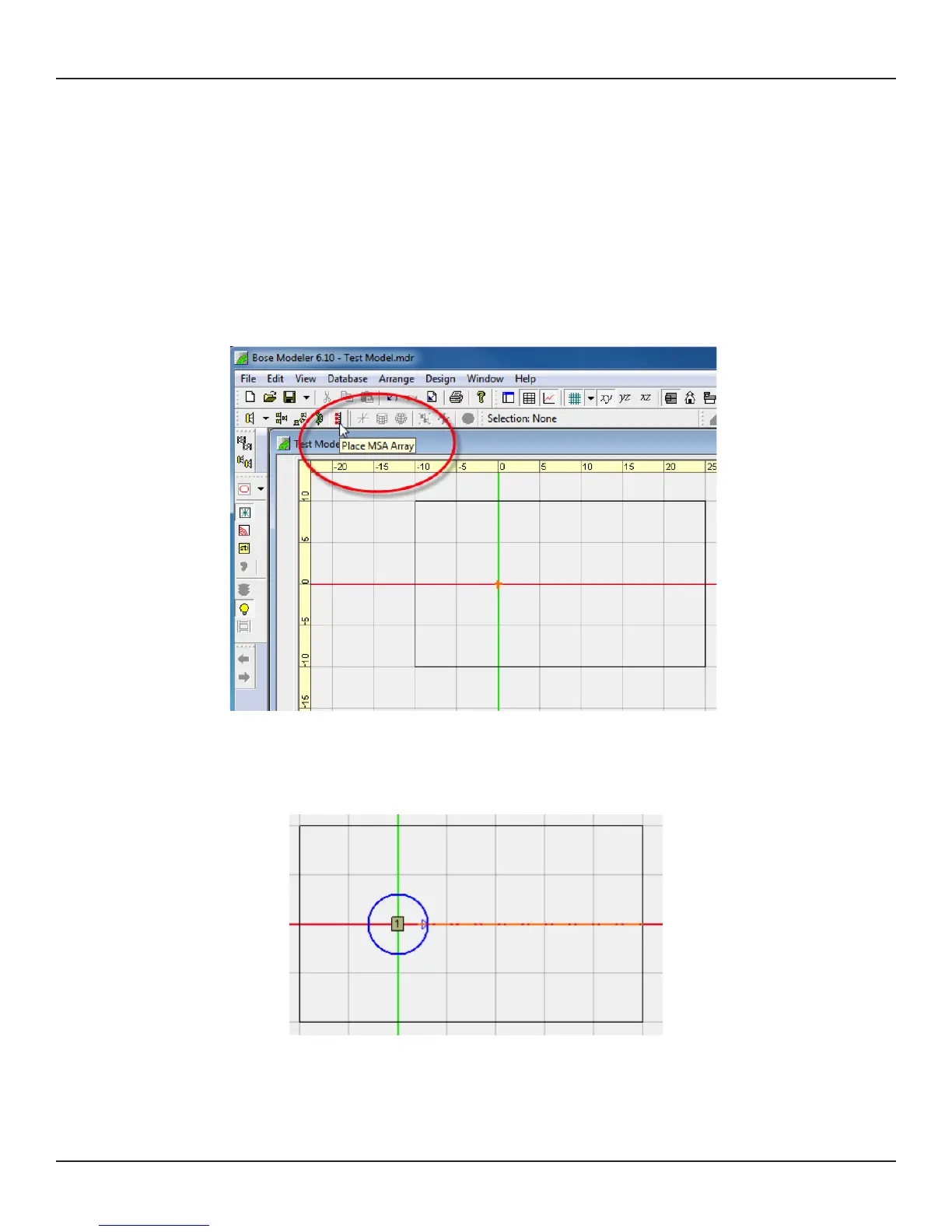

Select ‘Place MSA Array’ Tool.
Click the surface in the Plan view and place an array.
