2.5 Main Components

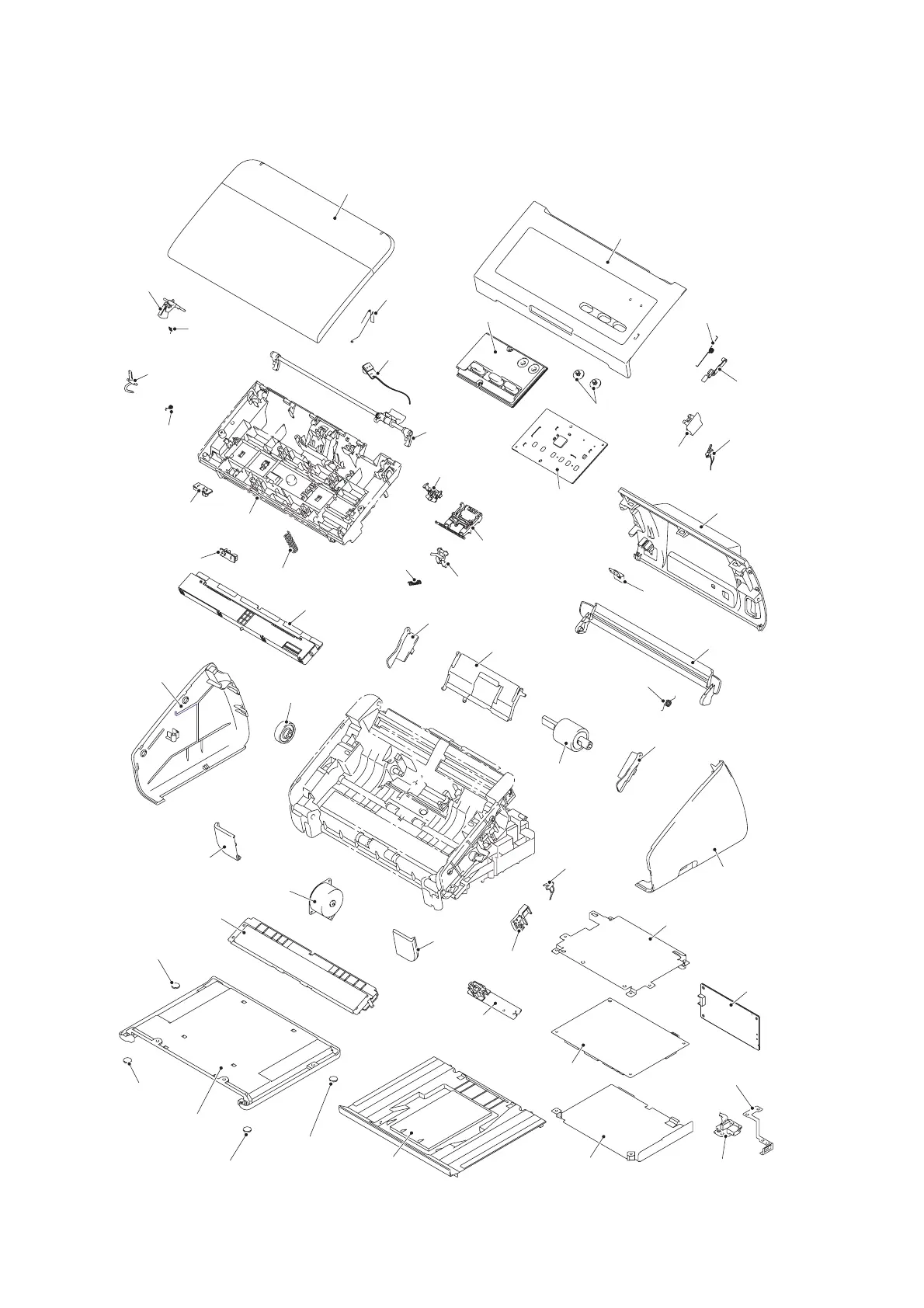

Fig. 2-4
Top cover
actuator spring
Front cover
Top cover actuator
Top cover sensor
LED guides
Document
detection actuator
Rubber key
Top cover
sensor holder
Panel PCB ASSY
Back cover
Back cover S
Security slot
earth plate
Back cover S spring
Side cover R
Document guide RS
Pick-up roller
ASSY
Separation roller
cover ASSY
Document guide LS
Main PCB shield frame
Power supply
PCB ASSY
Front cover sensor
Front cover sensor
holder
Double feeding sensor
PCB ASSY (Receive)
Main PCB ASSY
Front cover R
First side CIS unit
USB earth plate
USB host PCB ASSY
Main PCB shield plate
Output tray
Rubber foot
Bottom cover
Rubber foot
Main motor
Front cover L
Side cover L
Document
detection sensor
PCB
Document scanning
position sensor PCB
Separation spring
CIS spring
Second side CIS unit
Separation arm
Separation pad cover
Upper chute
Rubber foot
One way clutch
Separation pad ASSY
Cover open lever
shaft
Double feeding
sensor (Sent)
Upper chute
earth spring
Top cover
Document detection
actuator spring
Document scanning
position actuator
spring
Document
scanning position
actuator
Rubber foot

Brother ADS-2100 Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	256
Input color depth	30 bit
Maximum scan size	215.9 x 863 mm
Output color depth	24 bit
ADF scan speed (b/w, A4)	24 ppm
Enhanced scan resolution	1200 x 1200 DPI
Optical scanning resolution	600 x 600 DPI
Duplex ADF scan speed (b/w, A4)	48 ipm
Scanner type	Sheet-fed scanner
Product color	Black
Scan to	E-mail, File, Image, OCR, USB
Sensor type	CMOS dual CIS
Scan drivers	ISIS, TWAIN, WIA
Internal memory	256 MB
Scan file formats	JPG, PDF, TIFF
Processor frequency	400 MHz
Scanning noise level	62.5 dB
Daily duty cycle (max)	500 pages
Auto document feeder (ADF) input capacity	50 sheets
Minimum scan area (ADF)	51 x 70 mm
ISO A-series sizes (A0...A9)	A4, A5, A6, A7, A8
Scanning media types supported	Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper, Business card, Plastic card
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	52 - 200 g/m²
USB version	2.0
Standard interfaces	USB 2.0
Input voltage	220-240 V
Power supply type	AC
AC input frequency	50 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	7 W
Power consumption (typical)	18 W
Power consumption (PowerSave)	1.5 W
Package weight	5400 g
Image formats supported	JPG, TIF
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	179 mm
Width	220 mm
Height	299 mm
Weight	3300 g
