9.5 Side cover L
(1) Turn over the machine and open the top cover. Push the cover release lever to open the
front cover.
(2) Remove the taptite cup B M3x10 screw, and release the hook A to open the bottom.
Release the remaining four hooks by swinging the side cover L in the direction of the arrow,
and remove the side cover L from the machine.
(3) Remove the top cover shaft from the machine.

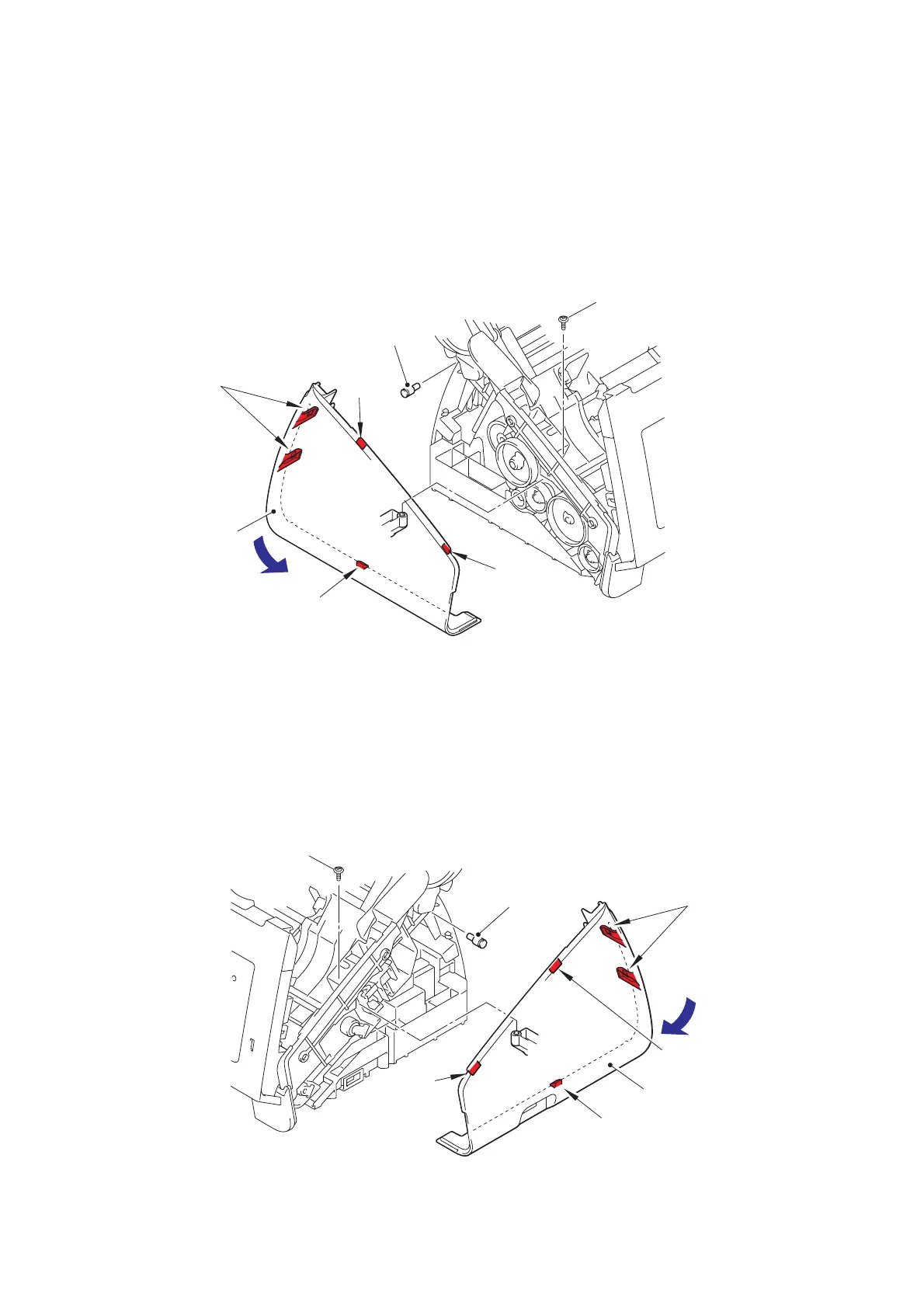

Fig. 3-9
9.6 Side cover R
(1) Remove the taptite cup B M3x10 screw, and release the hook A to open the bottom.
Release the remaining four hooks by swinging the side cover R in the direction of the
arrow, and remove the side cover R from the machine.
(2) Remove the top cover shaft from the machine.
Fig. 3-10
(3) Close the front cover and the top cover.
Top cover shaft
Hooks
Side cover L
Hook A
Taptite cup B M3x10
Hook
Hook
Taptite cup B M3x10
Top cover shaft
Hooks
Hook A
Side cover R
Hook
Hook

Brother ADS-2100 Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	256
Input color depth	30 bit
Maximum scan size	215.9 x 863 mm
Output color depth	24 bit
ADF scan speed (b/w, A4)	24 ppm
Enhanced scan resolution	1200 x 1200 DPI
Optical scanning resolution	600 x 600 DPI
Duplex ADF scan speed (b/w, A4)	48 ipm
Scanner type	Sheet-fed scanner
Product color	Black
Scan to	E-mail, File, Image, OCR, USB
Sensor type	CMOS dual CIS
Scan drivers	ISIS, TWAIN, WIA
Internal memory	256 MB
Scan file formats	JPG, PDF, TIFF
Processor frequency	400 MHz
Scanning noise level	62.5 dB
Daily duty cycle (max)	500 pages
Auto document feeder (ADF) input capacity	50 sheets
Minimum scan area (ADF)	51 x 70 mm
ISO A-series sizes (A0...A9)	A4, A5, A6, A7, A8
Scanning media types supported	Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper, Business card, Plastic card
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	52 - 200 g/m²
USB version	2.0
Standard interfaces	USB 2.0
Input voltage	220-240 V
Power supply type	AC
AC input frequency	50 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	7 W
Power consumption (typical)	18 W
Power consumption (PowerSave)	1.5 W
Package weight	5400 g
Image formats supported	JPG, TIF
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	179 mm
Width	220 mm
Height	299 mm
Weight	3300 g
