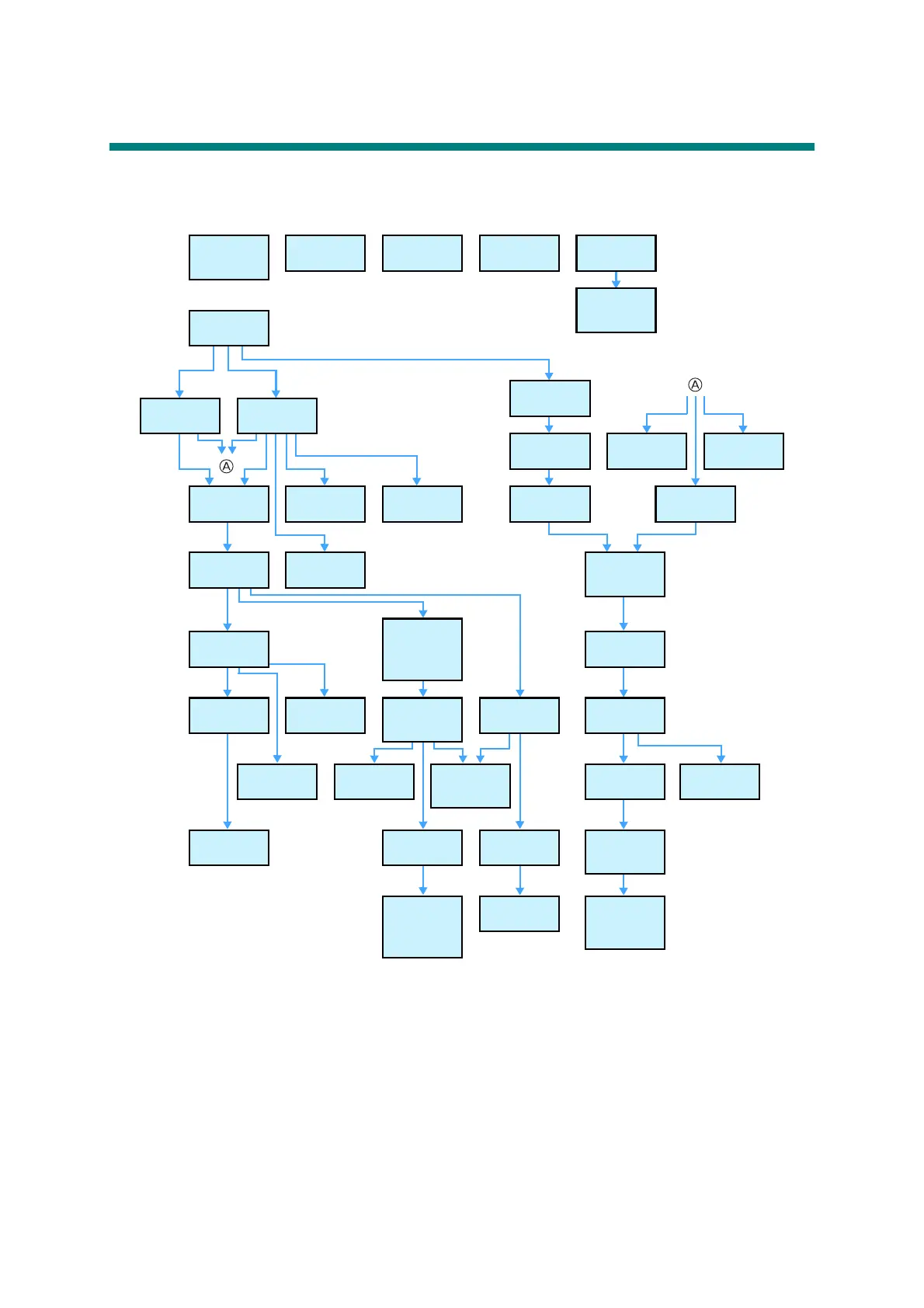

8. DISASSEMBLY FLOW CHART
Disassembly / Re-Assembly (second)
9.2 Separation
arm / Separation
spring
5/10
9.3 Pick-up roller
ASSY
10/10
9.12 Separation
pad ASSY
5/5
9.13 Second side
CIS unit
10/10
9.14 Top cover
20/20
9.14 Document
guide LS / Document
guide RS
5/5
9.9 Front cover
L/R
10/15
9.8 USB host PCB
ASSY
15/15
9.19 Front cover
sensor
10/10
9.22 One way
clutch
10/10
9.17 Main PCB
shield frame
15/10
9.7 Main PCB
ASSY
15/60
9.7 Main PCB
shield plate
10/10
9.21 First side CIS
unit
10/30
9.17 Main PCB
earth plate / Power
supply unit
25/40
9.17 Power supply
harness holder
15/15
9.11 Panel PCB
ASSY
10/10
9.11 Top cover
sensor
10/10
9.11 Top cover
actuator
10/10
9.12 Document
detection sensor
PCB / Document
scanning position
sensor PCB
10/20
9.12 Double
feeding sensor
holder
10/10
9.12 Upper chute
film
10/20
9.11 Rubber key /
LED guides
5/10
9.12 Separation
pad cover
10/10
9.12 Double
feeding sensor
(Sent)
10/10
9.12 Pinch roller
support plate
10/10
9.12 Document
detection actuator
/ Document
scanning position
actuator
20/20
9.12 Cover open
lever shaft
5/15
9.12 Upper chute
earth spring
5/5
9.20 CIS earth
plate
5/5
9.20 Double
feeding sensor
upper shield
5/5
9.20 Double
feeding sensor
PCB ASSY
(Receive)
5/5
9.4 Output tray
15/15
9.5 Side cover L
10/10
9.6 Side cover R
10/10
9.10 Upper chute
60/80
9.10 Panel ASSY
30/40
9.15 Back cover S
10/10
9.16 Back cover
15/15
9.18 Lower frame
20/50
9.18 Main motor
20/50

Brother ADS-2100 Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	256
Input color depth	30 bit
Maximum scan size	215.9 x 863 mm
Output color depth	24 bit
ADF scan speed (b/w, A4)	24 ppm
Enhanced scan resolution	1200 x 1200 DPI
Optical scanning resolution	600 x 600 DPI
Duplex ADF scan speed (b/w, A4)	48 ipm
Scanner type	Sheet-fed scanner
Product color	Black
Scan to	E-mail, File, Image, OCR, USB
Sensor type	CMOS dual CIS
Scan drivers	ISIS, TWAIN, WIA
Internal memory	256 MB
Scan file formats	JPG, PDF, TIFF
Processor frequency	400 MHz
Scanning noise level	62.5 dB
Daily duty cycle (max)	500 pages
Auto document feeder (ADF) input capacity	50 sheets
Minimum scan area (ADF)	51 x 70 mm
ISO A-series sizes (A0...A9)	A4, A5, A6, A7, A8
Scanning media types supported	Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper, Business card, Plastic card
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	52 - 200 g/m²
USB version	2.0
Standard interfaces	USB 2.0
Input voltage	220-240 V
Power supply type	AC
AC input frequency	50 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	7 W
Power consumption (typical)	18 W
Power consumption (PowerSave)	1.5 W
Package weight	5400 g
Image formats supported	JPG, TIF
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	179 mm
Width	220 mm
Height	299 mm
Weight	3300 g
