Brother ADS-2100 User Manual

3-21
Confidential

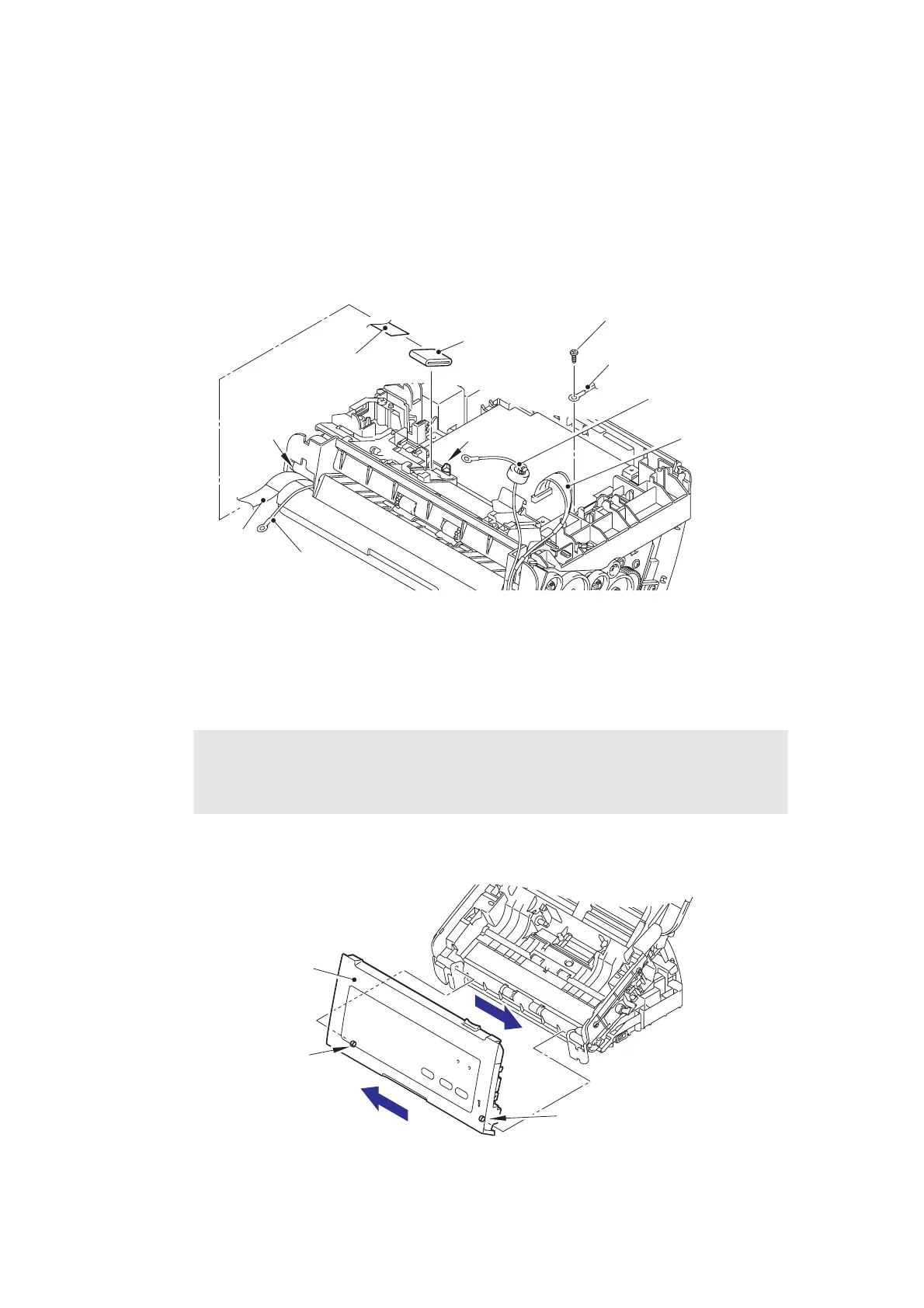

9.10 Panel ASSY
(1) Remove the taptite bind B M3x10 screw, then remove the earth harness (YW).
(2) Release the hook to disconnect the core of the second side CIS flat cable from the
machine, then release the second side CIS flat cable, the panel PCB harness, the earth
harness (GN), and the earth harness (YW) from the securing fixtures.
(3) Pull out the core from the second side CIS flat cable. Then pull out the second side CIS flat
cable and the earth harness (BK) from the hole on the machine.
Fig. 3-16
HARNESS ROUTING: Refer to “1. Main PCB ASSY”.
(4) Turn over the machine and open the top cover. Push the cover release lever to open the
front cover.
(5) Push the front cover in the direction of arrow 5a to remove the boss A, and in the direction
of arrow 5b to remove the boss B. Then remove the front cover from the machine.
Fig. 3-17
Note:
• Be careful not to drop the main PCB shield frame and the USB earth plate as they
are not secured.
Core
Earth harness (BK)
Earth harness (YW)
Taptite bind B M3x10
Hole
Second side
CIS flat cable
Panel PCB harness
Second side
CIS flat cable
Hook
Earth harness (GN)
Boss A
Front cover
Boss B
5a
5b

Brother ADS-2100 Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	256
Input color depth	30 bit
Maximum scan size	215.9 x 863 mm
Output color depth	24 bit
ADF scan speed (b/w, A4)	24 ppm
Enhanced scan resolution	1200 x 1200 DPI
Optical scanning resolution	600 x 600 DPI
Duplex ADF scan speed (b/w, A4)	48 ipm
Scanner type	Sheet-fed scanner
Product color	Black
Scan to	E-mail, File, Image, OCR, USB
Sensor type	CMOS dual CIS
Scan drivers	ISIS, TWAIN, WIA
Internal memory	256 MB
Scan file formats	JPG, PDF, TIFF
Processor frequency	400 MHz
Scanning noise level	62.5 dB
Daily duty cycle (max)	500 pages
Auto document feeder (ADF) input capacity	50 sheets
Minimum scan area (ADF)	51 x 70 mm
ISO A-series sizes (A0...A9)	A4, A5, A6, A7, A8
Scanning media types supported	Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper, Business card, Plastic card
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	52 - 200 g/m²
USB version	2.0
Standard interfaces	USB 2.0
Input voltage	220-240 V
Power supply type	AC
AC input frequency	50 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	7 W
Power consumption (typical)	18 W
Power consumption (PowerSave)	1.5 W
Package weight	5400 g
Image formats supported	JPG, TIF
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	179 mm
Width	220 mm
Height	299 mm
Weight	3300 g
