9.21 First side CIS unit
(1) Turn over the lower chute ASSY. Release the hook from the hole on the lower chute ASSY,
and remove the first side CIS unit from the lower chute ASSY while lifting and pulling it in
the direction of the arrow. Then, pull out the first side CIS flat cable from the hole on the
lower chute ASSY.
(2) Disconnect the first side CIS flat cable from the first side CIS unit.

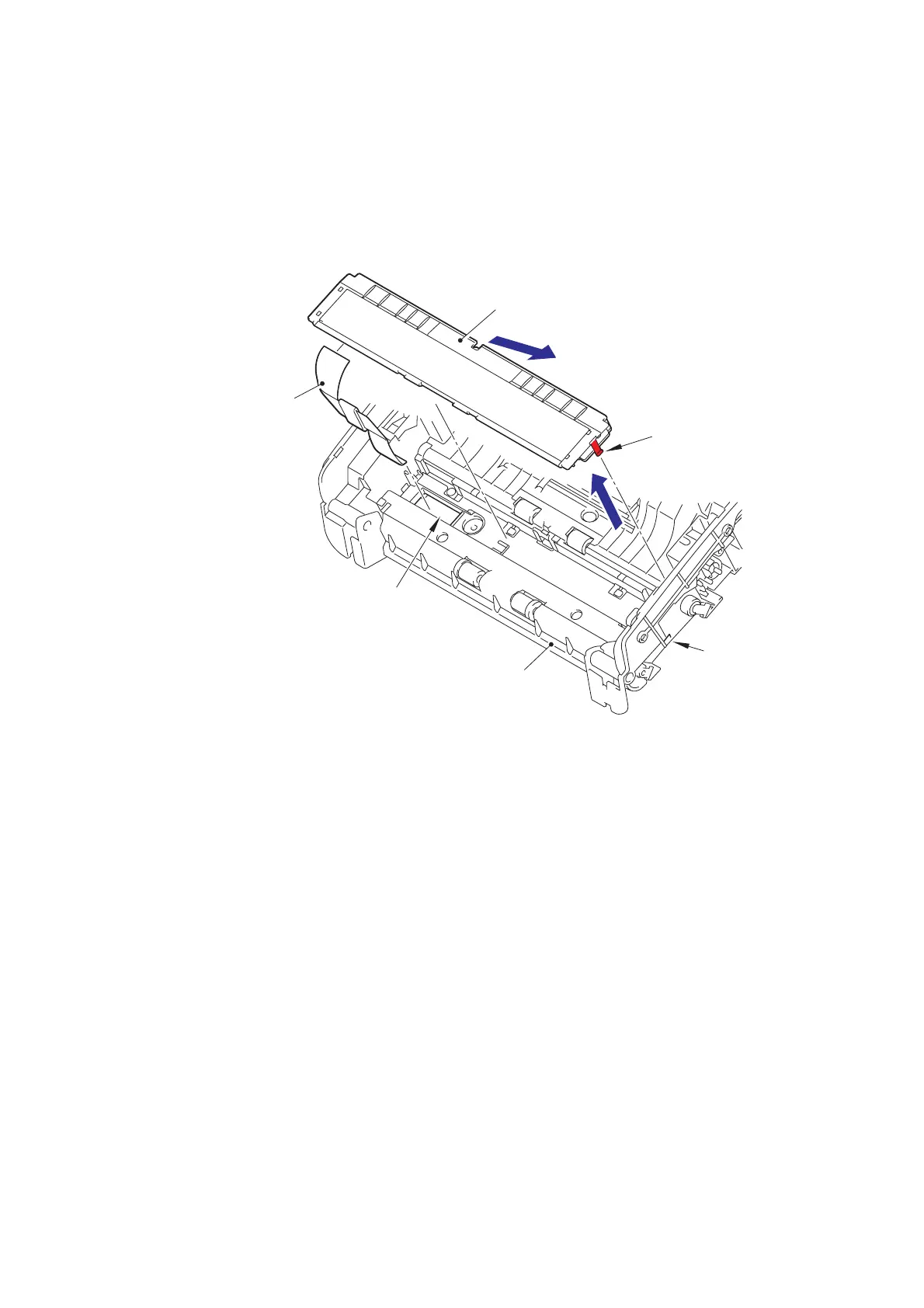

Fig. 3-39
First side CIS unit
Hook
Lower chute ASSY
Hole
First side CIS flat cable
Hole

Brother ADS-2100 Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	256
Input color depth	30 bit
Maximum scan size	215.9 x 863 mm
Output color depth	24 bit
ADF scan speed (b/w, A4)	24 ppm
Enhanced scan resolution	1200 x 1200 DPI
Optical scanning resolution	600 x 600 DPI
Duplex ADF scan speed (b/w, A4)	48 ipm
Scanner type	Sheet-fed scanner
Product color	Black
Scan to	E-mail, File, Image, OCR, USB
Sensor type	CMOS dual CIS
Scan drivers	ISIS, TWAIN, WIA
Internal memory	256 MB
Scan file formats	JPG, PDF, TIFF
Processor frequency	400 MHz
Scanning noise level	62.5 dB
Daily duty cycle (max)	500 pages
Auto document feeder (ADF) input capacity	50 sheets
Minimum scan area (ADF)	51 x 70 mm
ISO A-series sizes (A0...A9)	A4, A5, A6, A7, A8
Scanning media types supported	Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper, Business card, Plastic card
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	52 - 200 g/m²
USB version	2.0
Standard interfaces	USB 2.0
Input voltage	220-240 V
Power supply type	AC
AC input frequency	50 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	7 W
Power consumption (typical)	18 W
Power consumption (PowerSave)	1.5 W
Package weight	5400 g
Image formats supported	JPG, TIF
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	179 mm
Width	220 mm
Height	299 mm
Weight	3300 g
