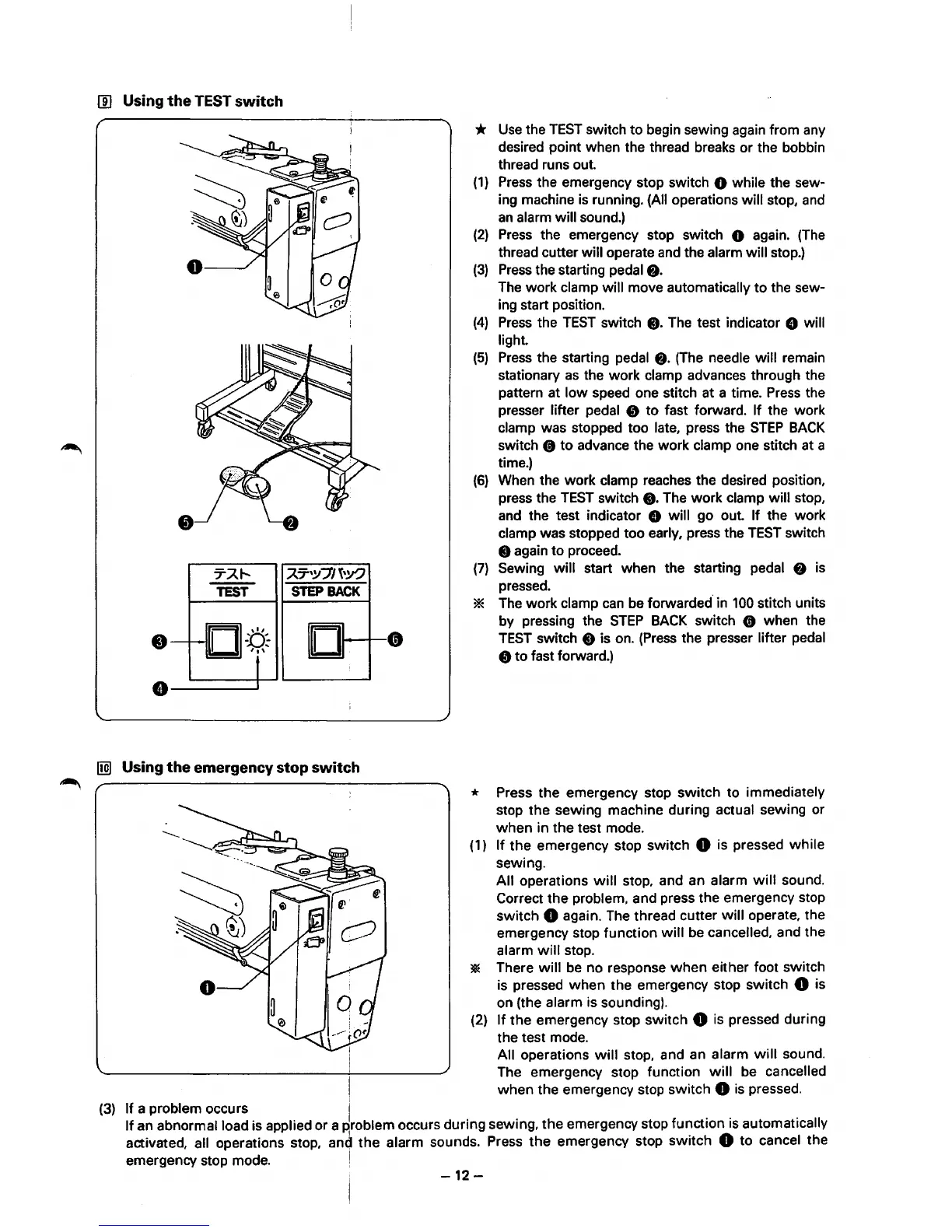

(!] Using
the
TEST
switch
•
7-:J...t---
TEST
·--------'
;)...7,~7/
~\.YQ
STEP
BACK
I!QJ
Using
the
emergency
stop
switch
*
Use
the
TEST
switch to begin sewing again from any
desired point when the thread breaks or the bobbin
thread runs out.
(1)
Press
the emergency stop switch 0 while the sew-
ing machine
is
running. (All operations will stop,
and
an
alarm will sound.)
(2)
Press
the emergency stop switch 0 again.
(The
thread cutter will operate
and
the alarm will stop.)
(3)
Press
the starting pedal
f).
The work clamp will move automatically
to
the sew-
ing start position.
(4)
Press
the
TEST
switch
8.
The test indicator 8 will
light.
(5)
Press
the starting pedal
fj.
(The
needle will remain
stationary
as
the work clamp advances through the
pattern at low speed one stitch at a time.
Press
the
presser lifter pedal
0 to fast forward.
If
the work
clamp was stopped too late, press the
STEP
BACK
switch 8 to advance the work clamp one stitch at a
time.)
(6)
When the work clamp reaches the desired position,
press the
TEST
switch C). The work clamp will stop,
and
the test indicator 8 will go out.
If
the work
clamp was stopped too early, press the
TEST
switch
C) again to proceed.
(7)
Sewing will start when the starting pedal 8 is
pressed.
* The work clamp
can
be
forwarded. in
100
stitch units
by pressing the
STEP
BACK
switch 0 when the
TEST
switch C) is on.
(Press
the presser lifter pedal
0
to
fast forward.)
* Press the emergency stop
switch
to immediately
stop the sewing machine during actual sewing or
when
in the test mode.
(1)
If
the
emergency stop switch 0 is pressed
while
sewing.
All operations
will
stop, and an alarm
will
sound.
Correct the problem, and press the emergency stop
switch
0 again. The thread cutter
will
operate, the
emergency stop function
will
be
cancelled, and the
alarm
will
stop.
38E
There
will
be
no response
when
either foot switch
is pressed
when
the emergency stop switch 0 is
on (the alarm is sounding).
(2)
If
the emergency stop switch 0 is pressed during
the test mode.
) All operations
will
stop, and an alarm
will
sound.
'---------------l-----___.,
The emergency stop function
will
be
cancelled
I
when
the emergency stop switch 0
is
pressed.
I
(3)
If
a problem occurs j
If
an abnormal load is applied or a p,roblem occurs during sewing,
the
emergency stop function
is
automatically
activated, all operations stop, and
the
alarm sounds. Press
the
emergency stop
switch
0 to cancel the
emergency stop mode.
!
-12-
