Brother BAS-311A User Manual

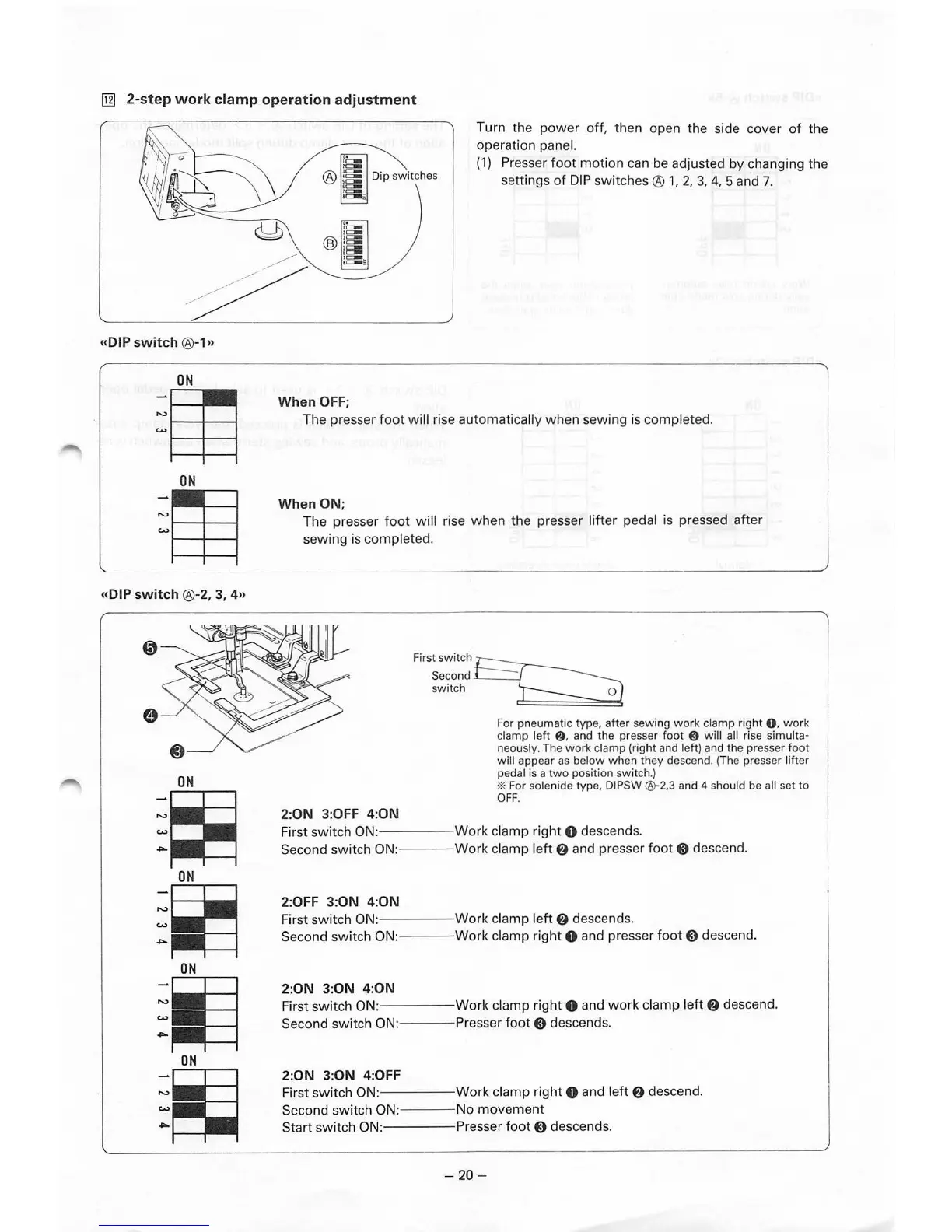

~ 2-step work clamp operation adjustment
«DIP switch ® -1,
«DIP switch ® -2 , 3, 4n
ON
~~
ON
When OF F;
Turn th e power off, then open the side cover of the
operation panel.
(1) Pr esser fo ot moti on can be adjusted by changing the
settings of DIP sw it ches® 1, 2, 3, 4, 5 and 7.
The presser f oot will rise a ut omatically when sewing is co mpl eted.
When ON;
The presser foot wi ll ri se when the presser li fter pedal is pressed after
sewing is comp leted.
2:0N 3: 0FF 4: 0N
For pneumatic type, after sewing work clamp right 0 . work
cla mp left f} , and the presser foot 0 will all rise simulta-
neously.
The work clamp (right and left) and the presser foot
will appear as be l ow when they descend. (T he presser lifter
pedal
is a t wo position sw itch.)
* For solenide type, DIPSW ® -2,3 an d 4 s ho uld be all set to
OFF .
Fir st sw it ch ON: ---- - Work clamp right 0 descends.
Se cond switch ON : Work clamp l eft f) and presser foot 8 descend.
2:0FF 3:0N 4:0N
First switch ON :----- Work cla mp left f) descends.
Second switch
ON : Work clamp right 0 and pres se r f oot 8 descend.
2:0N 3: 0N 4:0N
First switch ON: - --- -Work clamp right 0 and wo rk clamp left f) descend.
Second sw itch ON : Pr esser f oot 8 descends.
2:0N 3:0N 4:0FF
First sw itch ON : --- -- Work clamp right 0 and l eft f) descend.
Second sw itch ON : No moveme nt
Start switch ON : Presser foot 8 descends.
-20 -
