BE-0901E-AC-PC
• BE-1201B-AC-PC
8-19
Chapter 8
Creating Production Report
Printing Production Re
port
Prints the production r
eport from a pr
inter
.

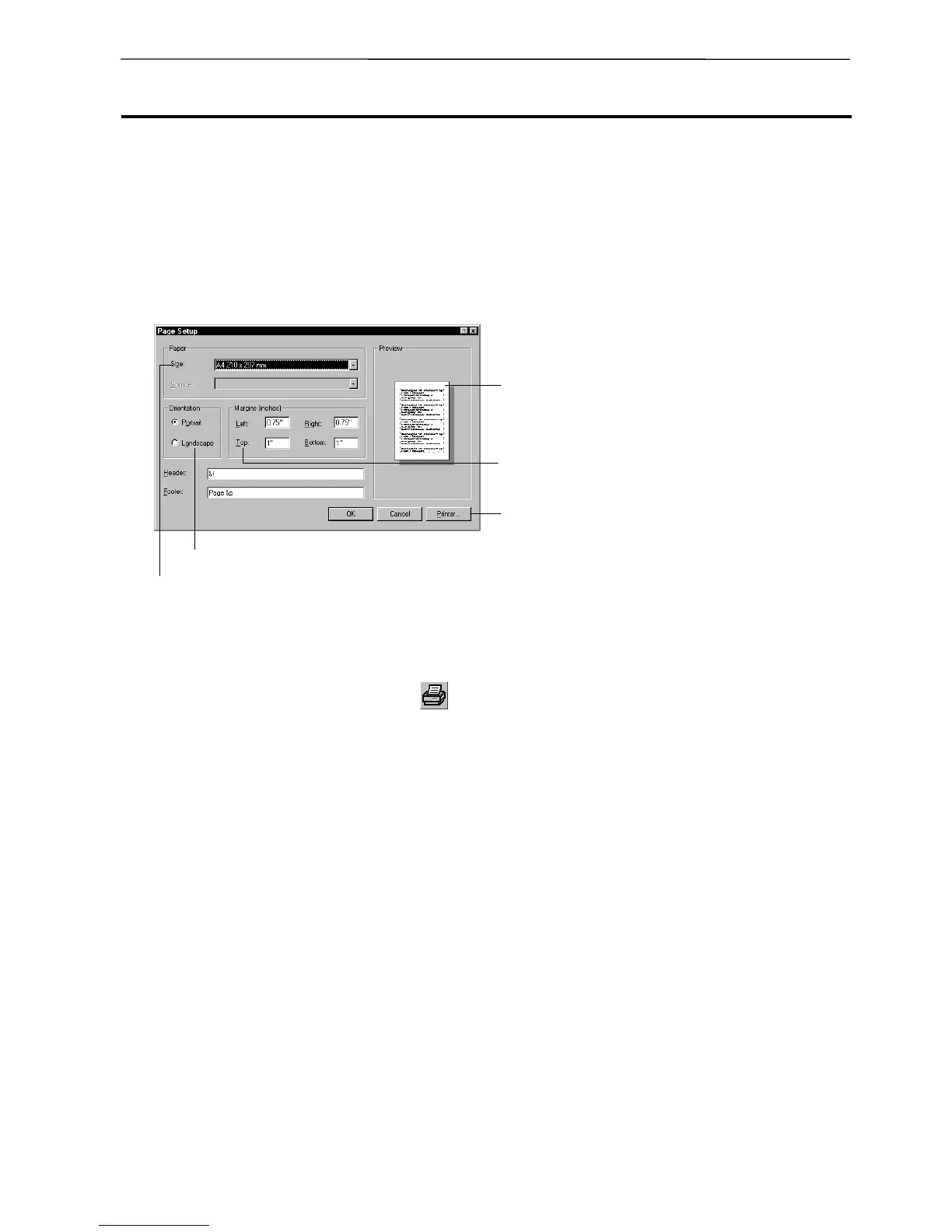

Page Setup
Printing metho
d is set as
required.
1.
Select [P
age se
tup]
from th
e Fil
e menu
.
Setting
screen is d
isplaye
d.
W1
195Q
Print
1.
Select
[Print] from File menu or click
.
Set the numb
er of sheets and cli
ck [OK].
The sample im
age is disp
layed.
Set the printe
r
.
Set the ma
rgin.
Set the pa
per direction.
Set the paper si
ze.
210
212
Table of Contents
Default Chapter
3
Safety Instructions
3
Environmental Requirements
4
Notes on Safety
4
Maintenance and Inspection
6
Warning Labels
7
Before Starting Operation
9
Procedure of Reading this Manual
11
Table of Contents
12
Chapter 1 An Introduction of Embroidery Machine
19
Specifications
20
Software
22
Necessary Systems
22
Configuration of Software
23
Notes on Use
24
Help
24
Basic Operation of Software
25
Chapter 2 Preparation of Embroidery Machine
29
Names of Machine Components
30
Installation
31
Transportation of Machine
31
Installation of Machine
31
Installation of Operation Panel
32
Mounting of Guard Bar
32
Mounting of Cotton Stand
33
Lubrication to Needle Bar Case
34
Connection of Personal Computer to Machines (for Connecting 4 Sets)
35
Connection of Power Supply
37
Installation of Software
39
Preparation for Embroidering
40
Upper Threading
40
Replacement of Bobbin
42
Replacing and Selecting Needle
43
Preparation of Machine for Operation
44
Attachment of Embroidery Hoop and Frame
47
Adjustment of Thread Tension
51
Chapter 3 Embroidering Procedures
53
Functions of Operation Panel
54
Operation Panel
54
Flowchart of Preparation for Embroidering
56
Run the Software
57
Turn on the Machine Power
57
Register the Machine Name
58
Retrieve the Embroidery Data
58
Start Embroidering
59
Chapter 4 Selecting and Transferring Embroidery Data
61
Functions (Command Reference)
62
Description of Screen
63
Creating a Directory
64
Transferring Data
65
Copy
67
Select from Menu
67
Drag Data
67
Moving Data
68
Select from Menu
68
Drag Data
68
Deleting Data
69
Recreate an Icon
70
Select All
71
Renaming Data
72
Finding Data
73
Adjusting Screen Display
75
Reading Data in Floppy Disk
76
Reading DOS Format Data
76
Converting the Non DOS Format Data
78
Reading Data in Paper Tape
82
Settings for Data Reading
84
Writing Data in DST Format
85
Viewing Pattern Information
86
Chapter 5 Editing Embroidery Data
87
Functions (Command Reference)
88
Description of Screen
90
Opening Embroidery Data
91
Setting Display
92
Centering
92
Zoom
92
Needle Penetration
94
Embroidering Start/End
94
Trim and Pause
94
Microstitch
95
Needle Bar and Speed Range
95
Thread Color
99
Tool Bar
100
Status Bar
100
Back to Previous Status
101
Undo
101
Redo
101
Editing
102
Rotate
102
Horizontal Flip
103
Vertical Flip
103
Point Symmetry
103
Repeat
103
Resize
106
Delete Stitch
106
Insert or Delete Code
107
Insert Lock Stitch
108
Changing Data
109
Changing Start
109
Changing End
110
Mask
111
Group
112
Setting Group for Repetition
113
Selecting from Menu
113
Merge
114
Saving Data
116
Save
116
Save as
117
Viewing Pattern Information
118
Printing Data
119
Chapter 6 Embroidering
121
Functions (Command Reference)
122
When the Power to the Machine Is off
122
When the Power to the Machine Is on
122
Description of Screen
125
Settings before Turning on the Machine
126
Displaying the Tool Bar
126
Displaying the Status Bar
127
Upgrading the Version of Interface Board
127
Reset Interface Board
127
Communication Port
127
Language
128
Settings after Turning Power on
129
Tool Bar
129
Status Bar
129
Zoom in
129
Zoom out
129
Zoom in Specified Range
130
Fit to Window
130
Whole Pattern
130
Grid
131
Hoop
131
Hoop Position Fine Adjustment
131
Needle Penetration
132
Thread Color
133
Needle Bar and Speed Range
133
Setting Needle Bar
133
Setting Ranges
137
Grid Setting
138
Background Color
138
Renaming Machine
139
Viewing Machine Information
140
Design Information
140
Setting Window Display
140
Minimizing and Aligning Windows
141
Language
143
Copying Data to Other Machines
143
Configuration
144
Upgrading the Machine Program
144
Setting the Machine
145
Needle Bar
145
Same Speed Range
146
Pause
146
Speed Range
147
Hoop Feed Position
148
Embroidery Area
149
Embroidery Hoop
149
Thread Trimming
151
Boring
152
Thread Breakage Sensor
153
Automatic Step Back
154
Automatic Hoop Feed
154
End of Embroidery
155
Mending
156
Adjust
157
Driving Shaft
158
Activate Escape with Pause
158
Short Stitch Speed Reduction
159
Thin / Thick Material
160
Area Trace
161
Default Settings
162
Show Setting
163
Load Setting
165
Save Setting
166
Load Hoop
167
Embroidering
172
Starting Embroidering
172
Moving the Home Position
174
Step-Forward/Step-Back
175
Entering in the Step-Forward/Step-Back Mode
175
Setting Step-Forward/Back Distance or Timing
176
Stepping Forward/Back
177
Resuming Embroidering
178
Moving Embroidery Position
179
Centering Pattern
180
Saving Data
181
Save
181
Save as
181
Running Other Programs
182
Chapter 7 Operation of Machine
183
Operating Procedures
184
Power Source
184
Preparation for Embroidering
184
Machine Stop
185
Stopping the Machine with the Stop Switch Unit
185
Emergency Stop of the Machine with the Shut-Off Switch Unit
185
Permission for Hoop Movement
186
Jog Switches
187
Hoop Movement to Start Position
187
Area Check
188
External Tracing
188
Automatic Hoop Movement in Area
188
Hoop Feed Position
189
Measures against Thread Breakage
190
Remedies
190
Inching Mode
191
Inching Mode During Embroidering (Forcible Hoop Movement)
191
Chapter 8 Creating Production Report
193
Functions (Command Reference)
194
Description of Screen
195
Displaying Report
196
Display Example of Details
197
Display Example of Thread Breakage Information on Needle Bar
198
Display Example of Thread Breakage Information in Pattern
199
Display Example of Output Information
200
Display Example of Total Output Information
202
Setting Display Items
204
General
204
Details
205
Thread Breakage Information on Needle Bar
206
Thread Breakage Information in Pattern
206
Output Information
207
Total Output Information
208
Recess Time Setting
209
Save as CSV
210
Printing Production Report
211
Page Setup
211
Print
211
Copying Report Data
212
Chapter 9 Maintenance
213
Cleaning
214
Cleaning and Lubrication of Rotary Hook
214
Cleaning of Needle Plate
215
Oiling
216
Head
216
Chapter 10 Adjustment
219
Adjusting Needle Bar Height
220
Adjustment of Timing between Needle and Rotary Hook
224
Adjustment of Presser Foot Height
225
Adjustment of Thread Trimmer
226
Thread Wiper Adjustment
227
Adjusting the Belt Tension
228
Chapter 11 Error Code List
229
Chapter 12 Troubleshooting
233
Mechanical Section
234
Electrical Section
236
Chapter 13 Connection and Installation of Optional Equipment
241
Attaching Bobbin Winder
242
5
Based on 1 rating
Ask a question
