3-6 BE-0901E-AC-PC• BE-1201B-AC-PC
Chapter 3 Embroidering Procedures

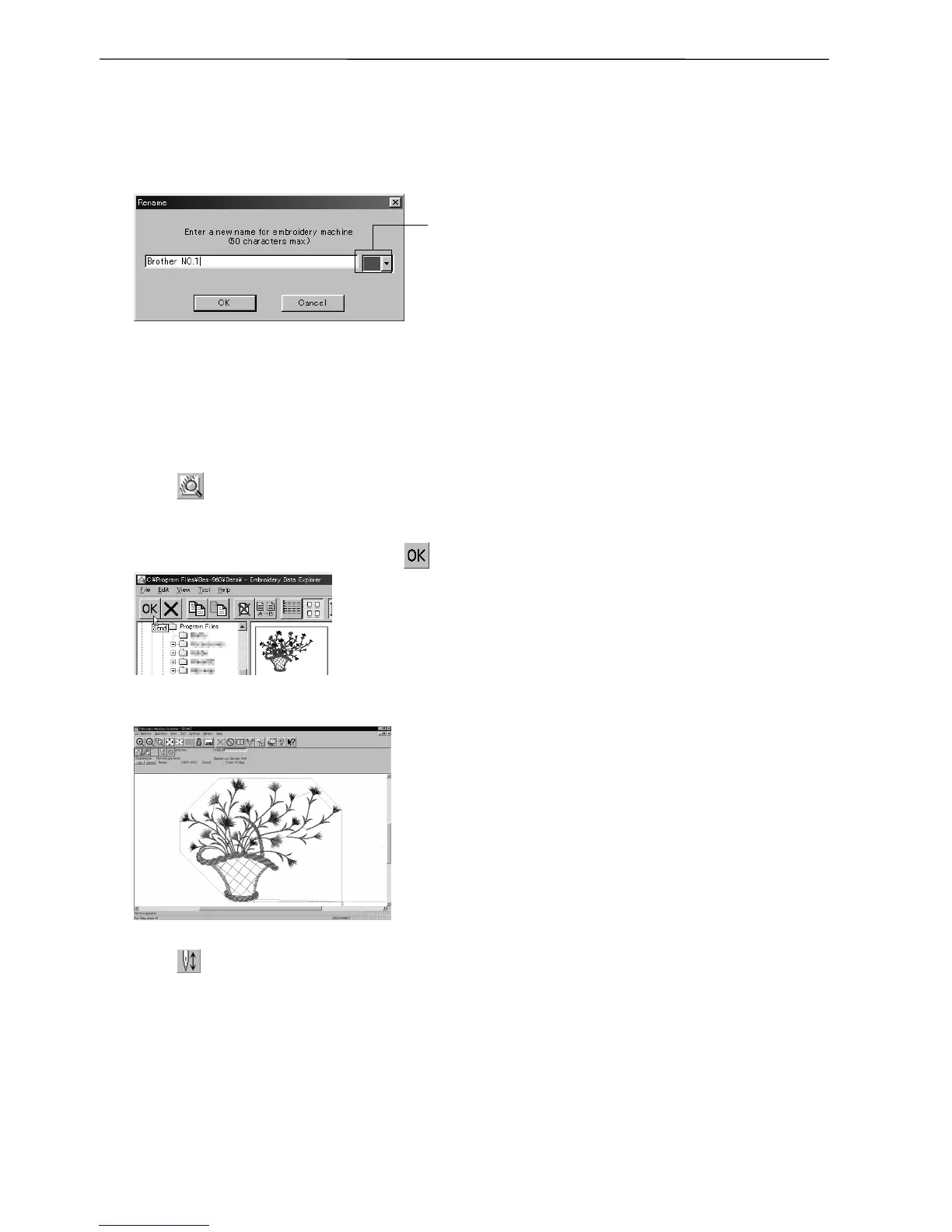

Register the Machine Name
Enter the machine name if the software is run for the first time or when a new machine is connected.
1. Enter a machine name.
W1370Q
2. Click [OK].
Retrieve the Embroidery Data
1. Click .
The embroidery data explorer starts up.
2. Double-click the desired data or click after clicking the desired data.
W1371Q
3. The selected data is transferred to the machine controller.
W1363Q
4. Click .
The data is transferred to the machine for preparation of embroidering.
When the embroidery hoop is displayed, the area check is conducted not with the embroidery area but
with the frame shape. However, the area check of spider net frame and cap frame is conducted with the
embroidery area.
Be sure to note that at the time of the area check with the frame shape, the warning message won't be
displayed when all of the embroidery data is placed apart from the embroiderable area (in green) in the
frame or covers up the whole embroiderable area (in green) of the frame.
Select an identifying color for the
machine.
This color is shown on the title bar for a
while when the arrow pointer is moved
to the title bar of a machine window.
To Next Page
