Brother DCP-8065DN Service Manual

Confidential
5-38

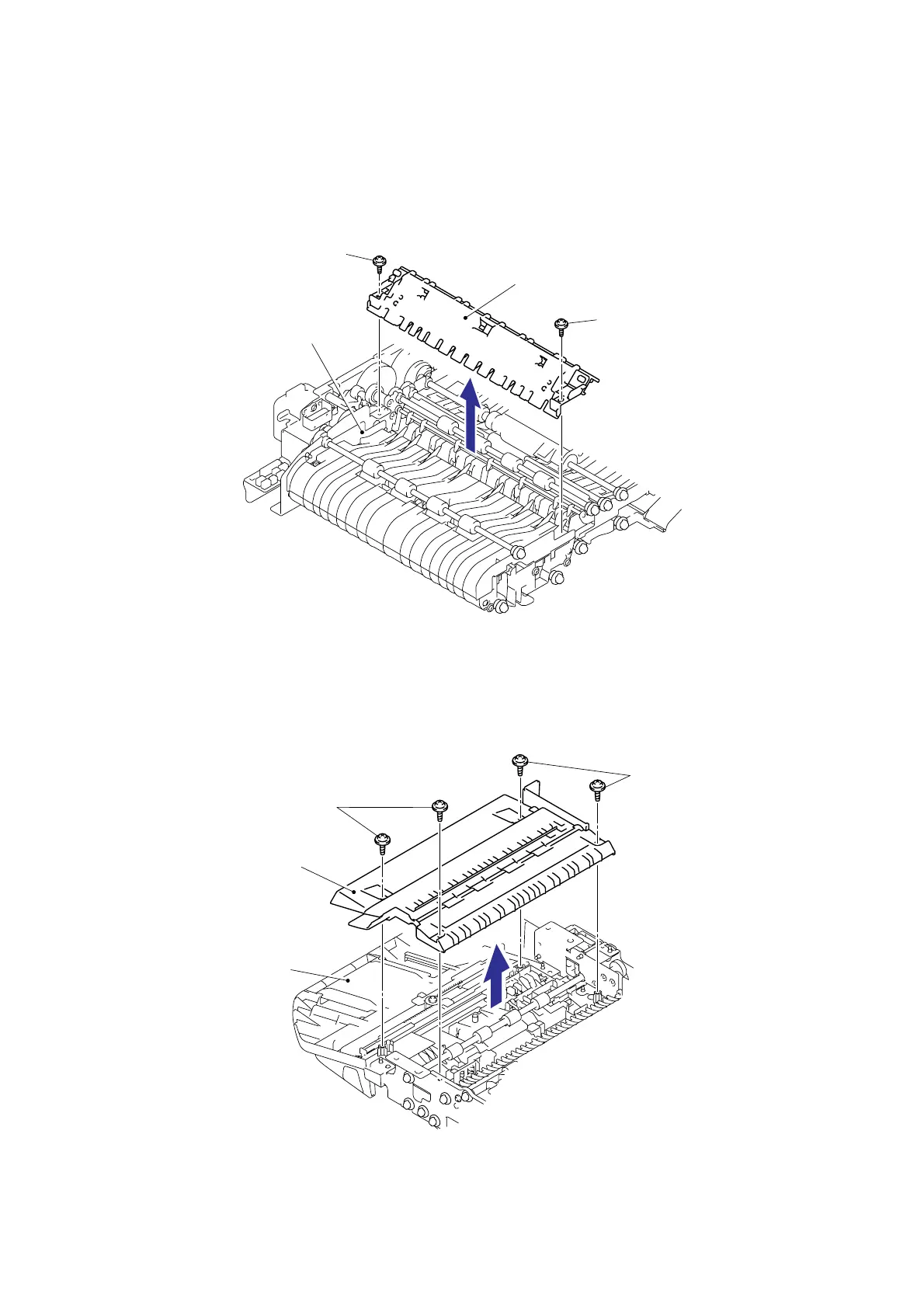

5.1.17 SB Chute ASSY (For the models with the DX only) / SX Chute
(For the models with out the DX only)
(1) Remove the two cup S M3x8 Taptite screws.
(2) Remove the SB chute ASSY or SX chute from the ADF chute ASSY.
Fig. 5-31
5.1.18 Exit Chute Cover ASSY
(1) Turn the ADF chute ASSY upside down and remove the four cup B M3x10 Taptite screws.
(2) Remove the Exit chute cover ASSY from the ADF chute ASSY.
Fig. 5-32
SB chute ASSY
/
SX chute
Taptite, cup B M3x8
Taptite, cup B M3x8
ADF chute ASSY
Taptite, cup B M3x10
Taptite, cup B M3x10
Exit chute cover ASSY
ADF chute ASSY
<Front side>
<Front side>

Brother DCP-8065DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Scan to	e-mail, file, image, OCR
Input color depth	48 bit
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	28 cpm
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Internal memory	32 MB
Maximum internal memory	544 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	55 dB
Display	LCD
Market positioning	Business
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Font styles	66 Scaleable fonts, Letter, Gothic 16.66, OCR-A, OCR-B, 11 Barcodes
Dimensions (WxDxH)	531 x 450 x 475 mm
Networking features	10/100 Base-TX
All-in-one functions	Copy, Scan
Color all-in-one functions	scan, n
Compatible operating systems	Mac OS X 10.2.4 or greater Windows XP
Standard interfaces	USB 2.0
Sustainability certificates	ENERGY STAR
Power consumption (standby)	85 W
Power consumption (PowerSave)	15 W
Power consumption (average operating)	660 W
