Brother DCP-8065DN - LT Front Cover ASSY

Confidential
5-128
5.2.2 LT Front Cover ASSY

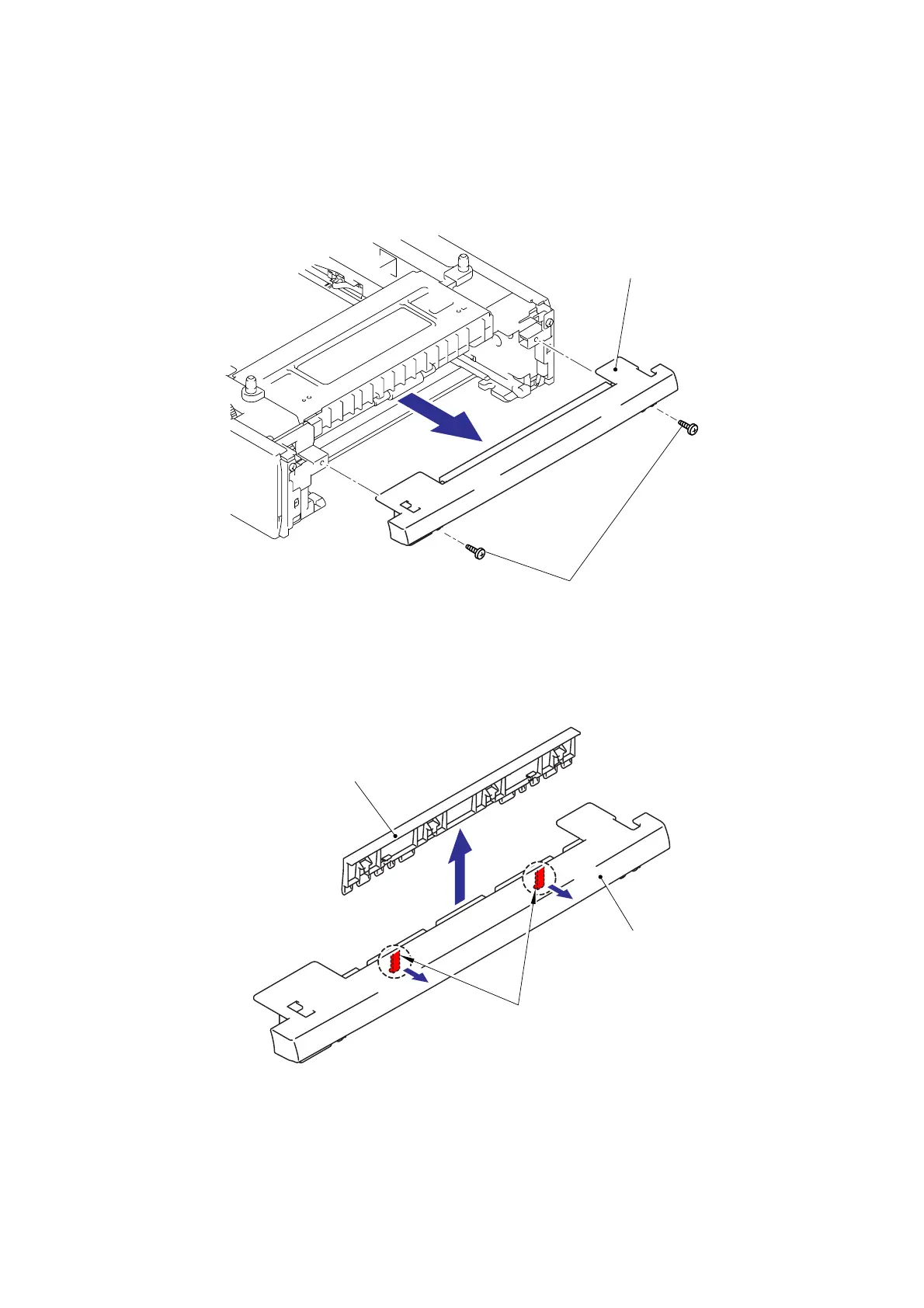

(1) Remove the two bind B M4x12 Taptite screws.
(2) Remove the LT front cover ASSY.
Fig. 5-204
(3) Remove the LT front paper guide from the LT front cover ASSY while pulling the two
hooks inwards.
Fig. 5-205
LT front cover ASSY
Taptite, bind B M4x12
LT front cover ASSY
Hooks
LT front paper guide
