5.2.5 LT Side Cover R
(1) Remove the bind B M4x12 Taptite screw.
(2) Remove the cup S M3x6 Taptite SR screw.
(3) Release the Hooks in the order of the arrows and remove the LT side cover R.

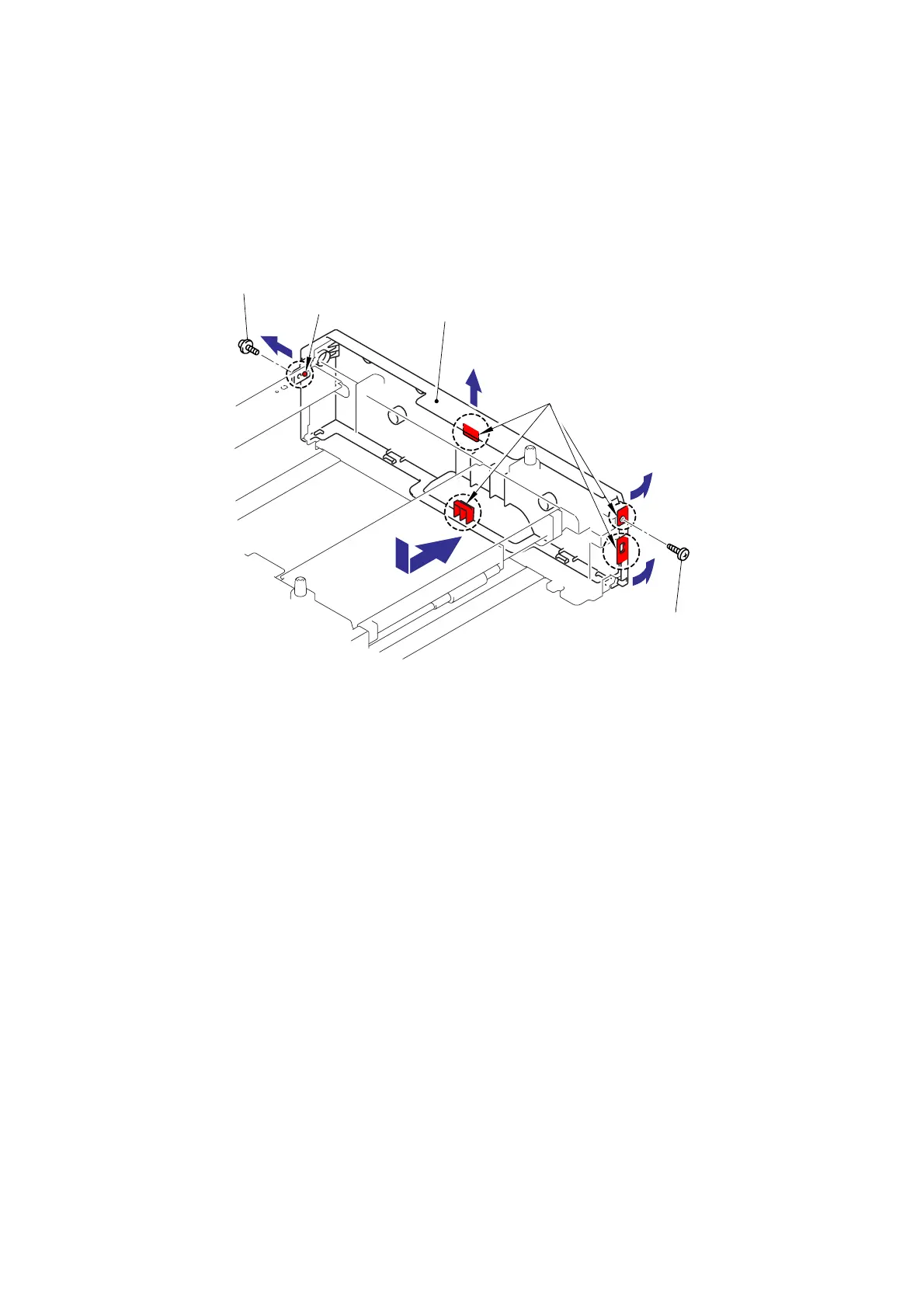

Fig. 5-208
Taptite, cup S M3x6 SR
Taptite, bind B M4x12
LT side cover R
Hooks
3b
3a
3d
3c
3e
<Right side>
Boss
