5.1.66 Gear Plate Calking ASSY AL/Develop Joint/ Main Motor ASSY AL
(1) Place the machine body so that the Frame L is at the top.
(2) Remove the eight bind B M4x12 Taptite screws and cup S M3x6 taptite screw.
(3) Remove the Gear plate calking ASSY AL from the Frame L.

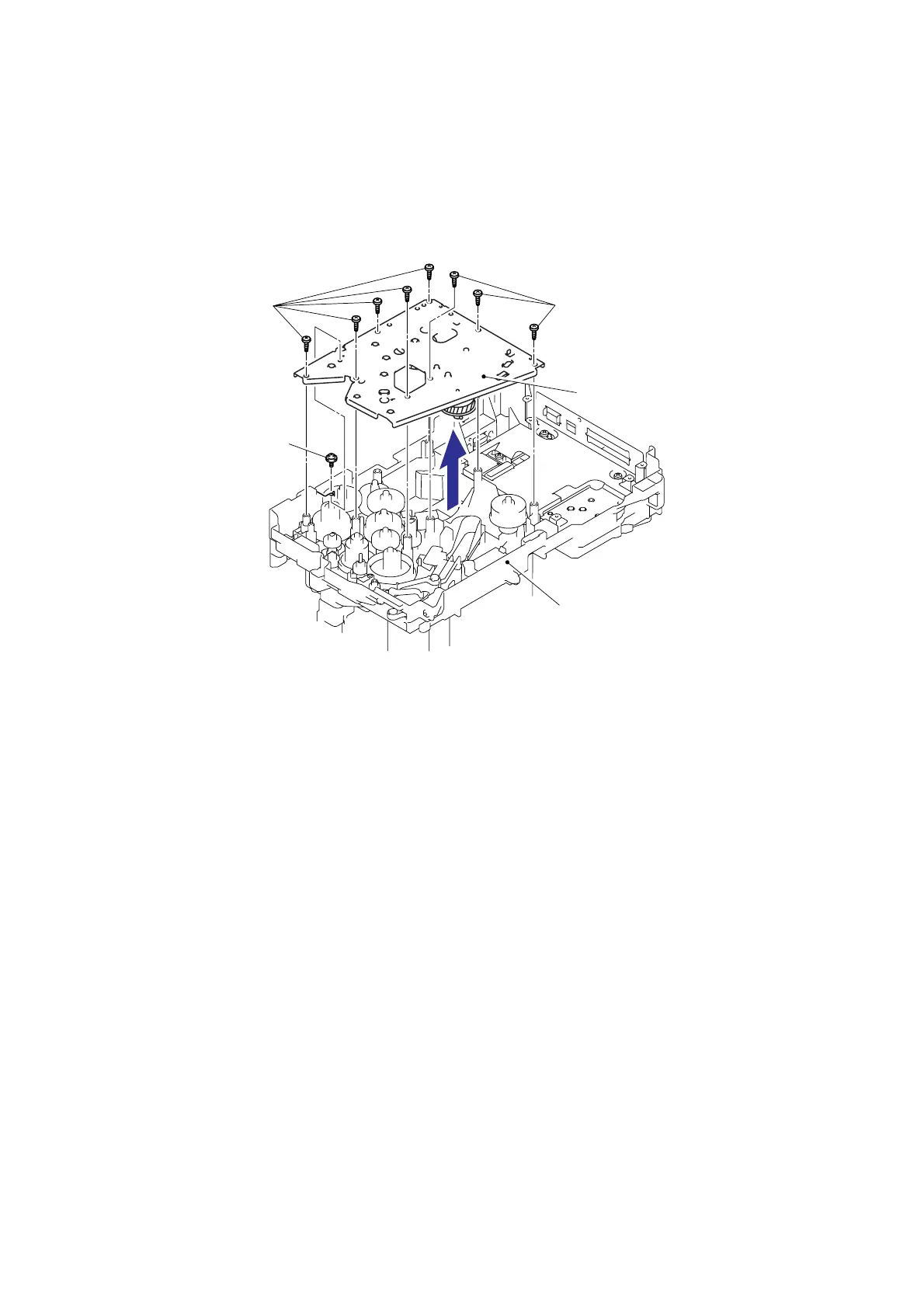

Fig. 5-122
NOTE: Be careful not to drop the gear.
Taptite,
b
ind B M4x12
Taptite,
b
ind B M4x12
Gear plate calking ASSY AL
Frame L
Taptite, cup S M3x6
