Brother DCP-8065DN Service Manual

Confidential
5-69

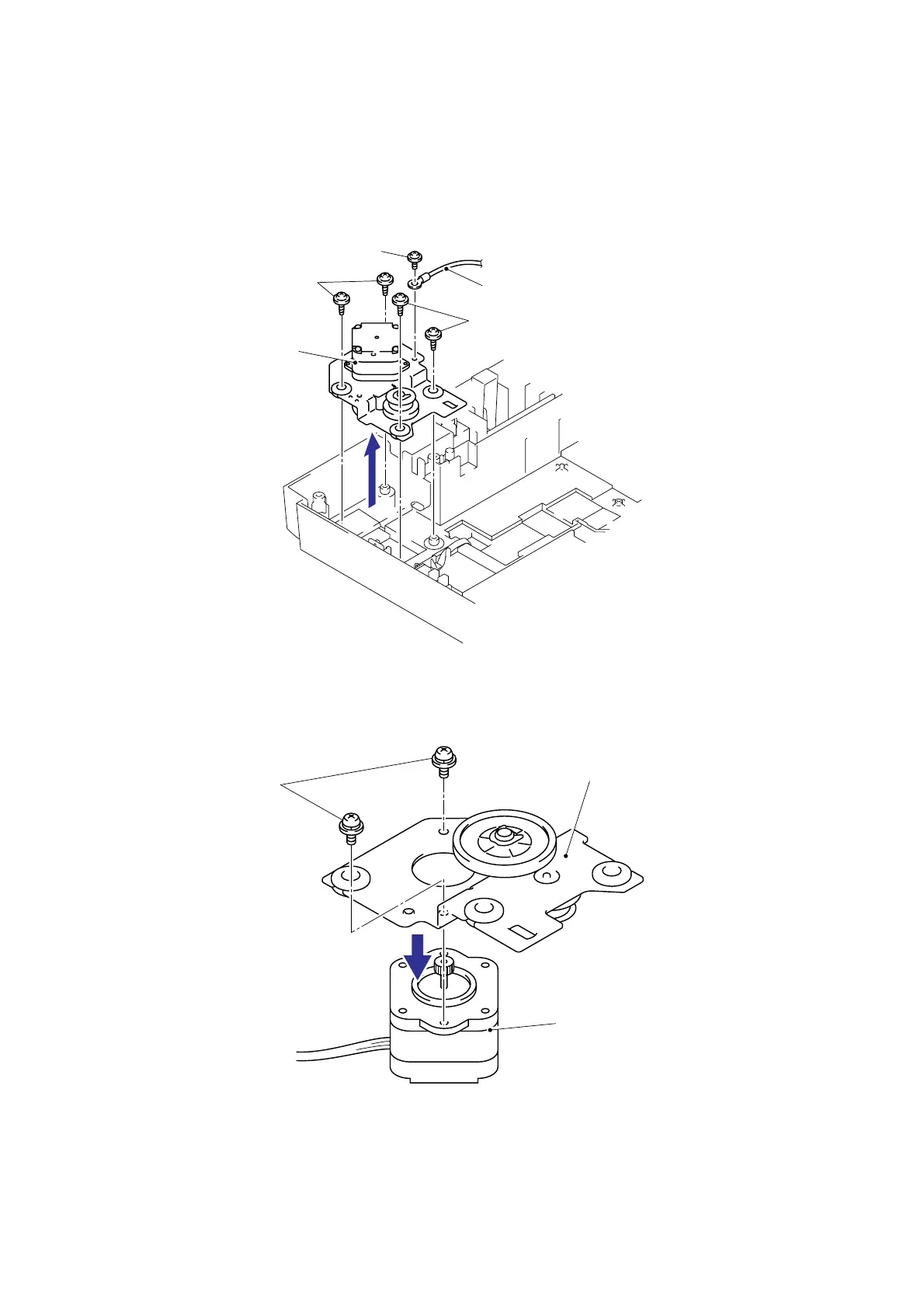

5.1.52 Scanner Motor FB
(1) Remove the cup S M3x6 Taptite screw, and then remove the FB FG harness.
(2) Remove the four pan B M3x8 Taptite screws, and then remove the Drive plate ASSY ALFB.
Fig. 5-89
(3) Remove the two Screws pan (S/P washer) M3x6, and then remove the Scanner motor FB.
Fig. 5-90
FB FG harness
Taptite, cup S M3x6
Taptite,
p
an B M3x8
Taptite,
p
an B M3x8
Drive plate ASSY ALFB
Drive plate ASSY ALFB
Screw
p
an (S/P washer)
M3x6
Scanner Motor FB

Brother DCP-8065DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Scan to	e-mail, file, image, OCR
Input color depth	48 bit
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	28 cpm
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Internal memory	32 MB
Maximum internal memory	544 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	55 dB
Display	LCD
Market positioning	Business
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Font styles	66 Scaleable fonts, Letter, Gothic 16.66, OCR-A, OCR-B, 11 Barcodes
Dimensions (WxDxH)	531 x 450 x 475 mm
Networking features	10/100 Base-TX
All-in-one functions	Copy, Scan
Color all-in-one functions	scan, n
Compatible operating systems	Mac OS X 10.2.4 or greater Windows XP
Standard interfaces	USB 2.0
Sustainability certificates	ENERGY STAR
Power consumption (standby)	85 W
Power consumption (PowerSave)	15 W
Power consumption (average operating)	660 W
