Brother DCP-8065DN Service Manual

Confidential
3-8

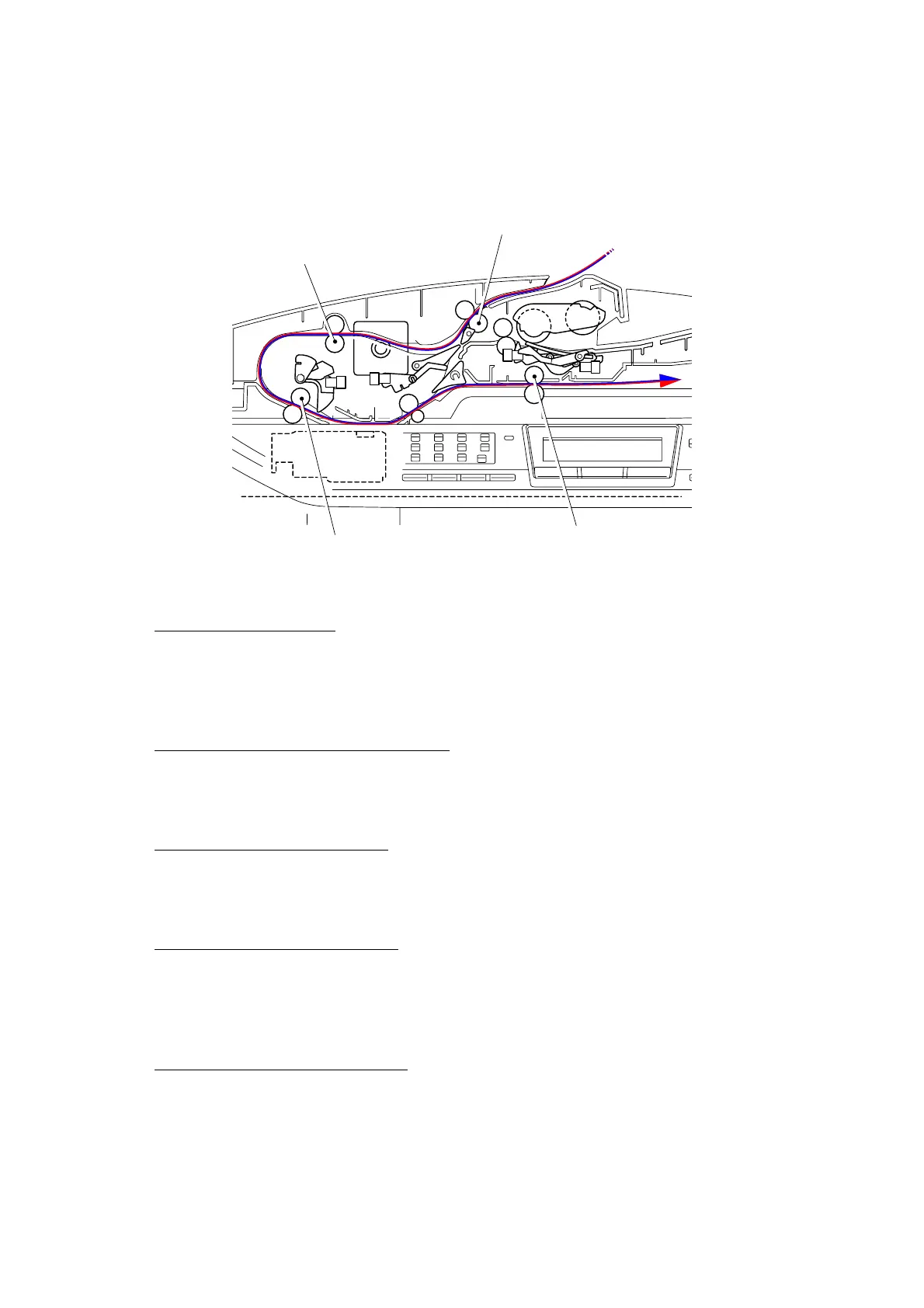

(4) The switch back roller ASSY is turned counter again, and the document is drawn again. The
document is passed through the paper feed rollers 1, 2 and 3, and ejected to the document
cover by the eject roller.
Fig. 3-9
Scanning by the CCD unit
The CCD unit includes the charge coupled device (CCD) sensor. The cold cathode fluorescent
lamp lights the document, and the reflection from the scanned image data is transferred to the lens
by the mirror. The lens reduces the scanned data so that the image is generated on the CCD.
Function of the machine cover open sensor
The machine cover open sensor detects whether the machine cover is opened or not. Even if the
document is set into the ADF, the machine starts scanning the document glass ignoring the ADF.
Function of the scanner lock lever
The scanner lock lever fixes the CCD unit in position to prevent the CCD unit from moving and
damaging during transportation.
Function of the paper feed solenoid
The paper feed solenoid releases the pick-up roller and separation roller from the drive gear while
duplex scanning and engages them with the drive gear when the document is drawn in order to
prevent that the next document is drawn into the ADF while duplex printing.
Function of the switch back solenoid
The switch back solenoid switches the planet gear of the switch back roller.
SB roller ASSY
Paper feed roller 2
Paper feed roller 3
Eject rolle
r

Brother DCP-8065DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Scan to	e-mail, file, image, OCR
Input color depth	48 bit
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	28 cpm
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Internal memory	32 MB
Maximum internal memory	544 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	55 dB
Display	LCD
Market positioning	Business
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Font styles	66 Scaleable fonts, Letter, Gothic 16.66, OCR-A, OCR-B, 11 Barcodes
Dimensions (WxDxH)	531 x 450 x 475 mm
Networking features	10/100 Base-TX
All-in-one functions	Copy, Scan
Color all-in-one functions	scan, n
Compatible operating systems	Mac OS X 10.2.4 or greater Windows XP
Standard interfaces	USB 2.0
Sustainability certificates	ENERGY STAR
Power consumption (standby)	85 W
Power consumption (PowerSave)	15 W
Power consumption (average operating)	660 W
