Brother FAX-575 User Manual

1 - 8
Introduction
Connections
Connecting an external telephone

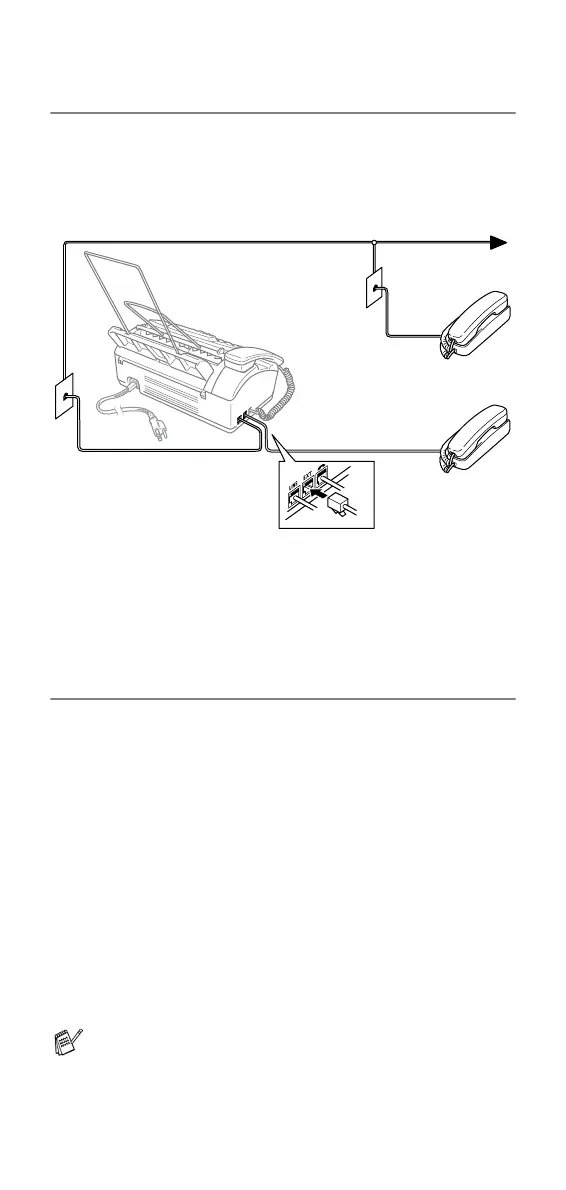

You can connect a separate telephone (or telephone answering
device) directly to your fax machine as shown in the diagram
below.
Connect the telephone’s line cord to the jack labeled EXT. in the
side of the fax machine.
.
Whenever this phone (or TAD) is in use, the LCD shows
EXT. TEL IN USE, and, if the fax handset is lifted, an alarm
sounds.
To disconnect the call on the external phone and switch to the fax,
lift the handset and press Hook.
Connecting an external telephone answering device
(TAD)
Sequence
You may choose to connect an answering device. However, when
you have an external TAD on the same telephone line as the fax
machine, the TAD answers all calls and the fax machine “listens”
for fax calling (CNG) tones. If it hears them, the fax machine takes
over the call and receives the fax. If it doesn’t hear CNG tones, the
fax machine lets the TAD continue playing your outgoing message
so your caller can leave you a voice message.
The TAD must answer within four rings (the recommended setting
is two rings). The fax machine cannot hear CNG tones until the
TAD has answered the call, and with four rings there are only 8 to
10 seconds of CNG tones left for the fax “handshake”. Make sure
you carefully follow the instructions in this manual for recording
your outgoing message. We do not recommend using the toll saver
feature on your external answering machine if it exceeds four rings.
If you do not receive all your faxes, you must reset the setting
on your external TAD to four rings or less.
External
Telephone
Extension
Telephone

Brother FAX-575 Specifications

General

Group dial	4
Modem speed	9.6 Kbit/s
Color faxing	No
Auto-redialing	Yes
Fax resolution	203 x 392 DPI
Print technology	Thermal
Fax coding methods	MH
Fax transmission speed	15 sec/page
Fax speed dialing (max numbers)	100
Interface	TAD
Weight (imperial)	5.5 lbs
Power requirements	AC, 120 V 50/60Hz
Package weight (imperial)	7 lbs
Copy resolution (black text)	400 x 400 DPI
Package dimensions (W x D x H)	15 x 10.7 x 7.5 \
Standard input capacity	50 sheets
Auto document feeder (ADF) input capacity	10 sheets
Copier resize	50 - 150 %
Grayscale levels	64
Maximum number of copies	99 copies
Scan speed	14 sec/page
Fax memory	0.5 MB
Power consumption (standby)	5 W
Power consumption (typical)	170 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Dimensions (WxDxH)	302 x 267 x 340 mm
