Basic printing procedures
(6) Tighten the knob to secure the platen bearing in place.
<TIPS>
 Align the center of platen fixing lever with the position as illustrated in the figure below, and secure the platen bearing in
place.
X010
7
(7) Insert the platen to be used and tighten the platen fixing lever.

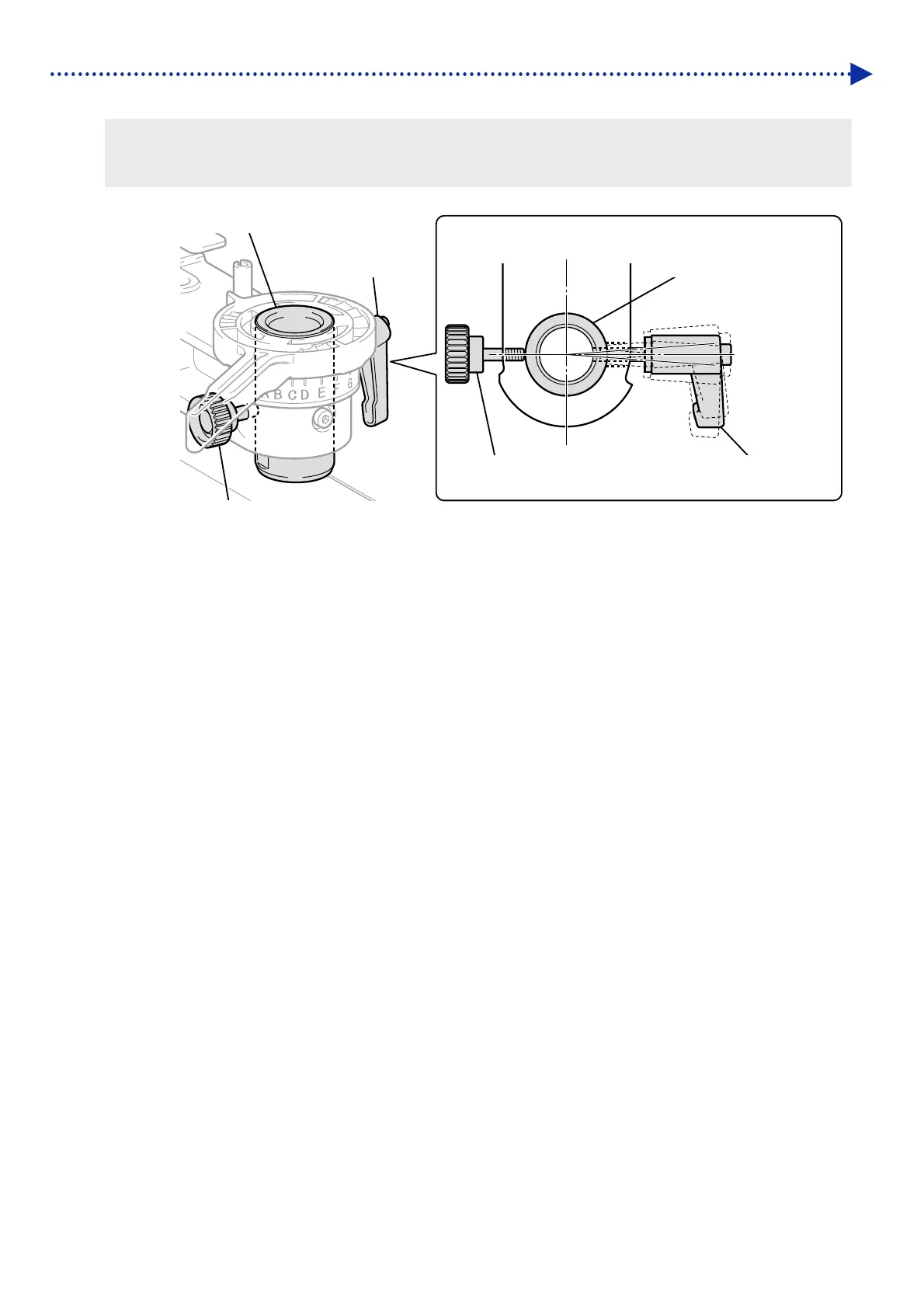

Platen bearing
Knob
Platen fixing lever
Platen fixing lever
Platen bearing
Center
position
alignment
Knob
