CAME GARD 8 SERIES User Manual

ESC < > ENTER
I
ESC < > ENTER
2
a
ESC < > ENTER
---
ESC < > ENTER
oP I
p.
22
22 - Manual code:
FA01030-EN
FA01030-EN v.
1
1- 01/2018 - © Came S.p.A. - The manual's contents may be edited at any time without notice.
U 1 Entering a user 1 = step-by-step command (open-close) / 2 = sequential command (open-stop-close-stop) / 3 = open
command / 4 = partial command / 5 = output contact B1-B2
Enter up to a maximum of 25 users and associate each one with a function chosen from the available options. Use the transmitter or another
command device to do this (see ENTERING A USER WITH AN ASSOCIATED COMMAND).
U 2 Delete a user
To delete a single user (see DELETING A SINGLE USER).
U 3 Delete users 0 = Deactivated / 1 = Delete all users
To delete all users.
A 1 Set boom type 0 = booms with a joint / 2 = boom 2 m / 4 = boom 4 m / 6 = boom 6 m / 8 = boom 8 m
To define the type of boom.
⚠
The choice of boom limits some of the speed, slow-down and calibration parameters. This is so as to ensure that the operator functions
correctly.
A 2 Motor test 0 = Deactivated / 1 = Activated
To check that the gearmotors rotate in the right direction (see MOTOR TEST)
A 3 Travel calibration 0 = Deactivated / 1 = Activated
Automatic calibration of the boom travel (see the section TRAVEL CALIBRATION).
A 4 Reset parameters 0 = Deactivated / 1 = Activated
Warning! If necessary, restore the default parameters.
The default settings are restored and the travel calibration deleted.
Restore the default settings and delete the travel calibration.
A 5 Manoeuvre count
This shows the number of manoeuvres performed (--- = 0 manoeuvres; 1 = 1,000 manoeuvres; 100 = 100,000 manoeuvres; ........... 999 =
999,000).
H 1 Version
Shows the software version.

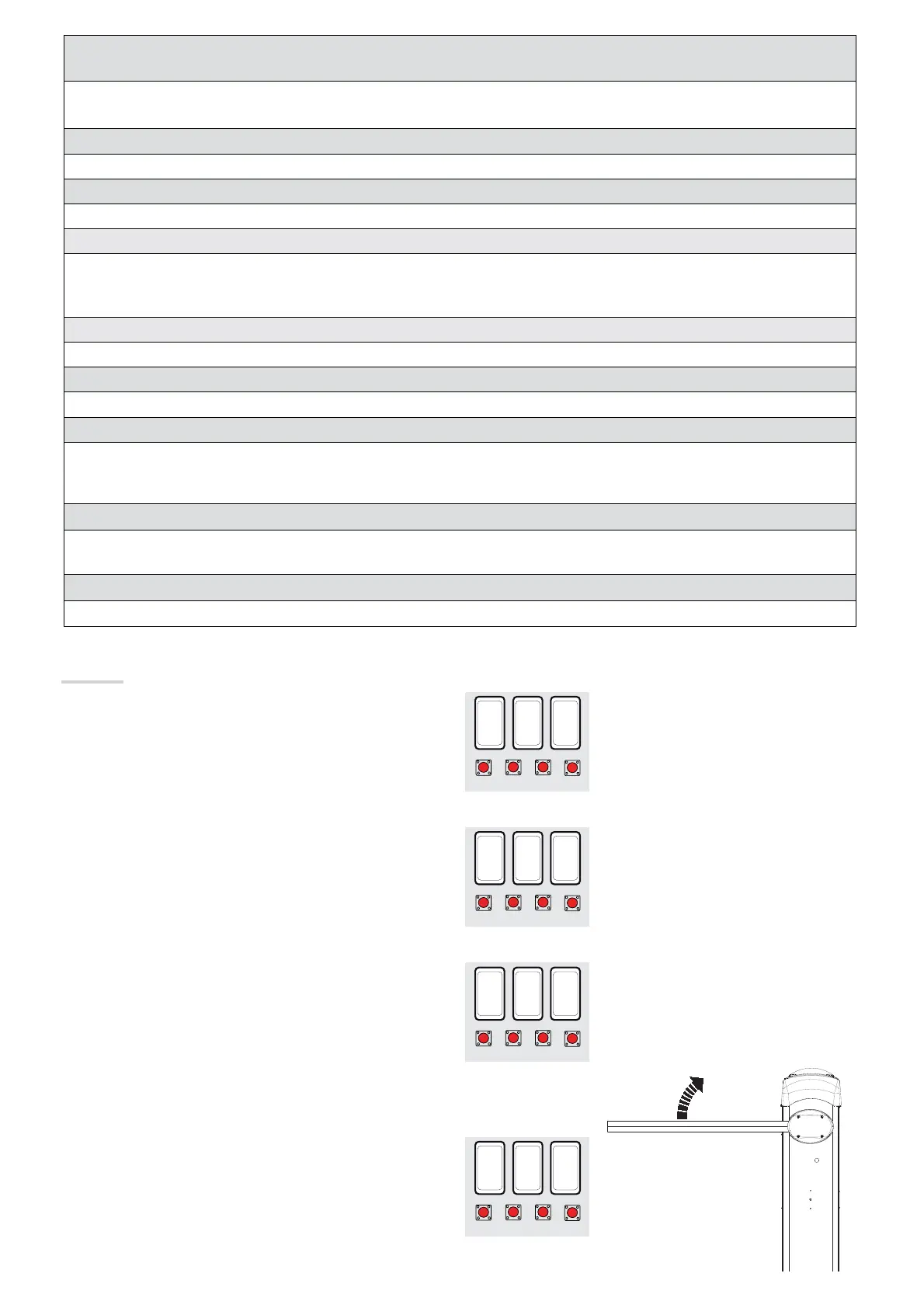

Motor test
1. Select A 2. Press ENTER to confirm.
2. Select 1 to activate the test. Press ENTER to confirm...
3. ... (---) displays while waiting for a command.
4. Press and hold the button labelled with the arrow > and check
whether the operator opens.
 If the operator closes, invert the motor's phases (M with N).
